Power Front Window Regulator

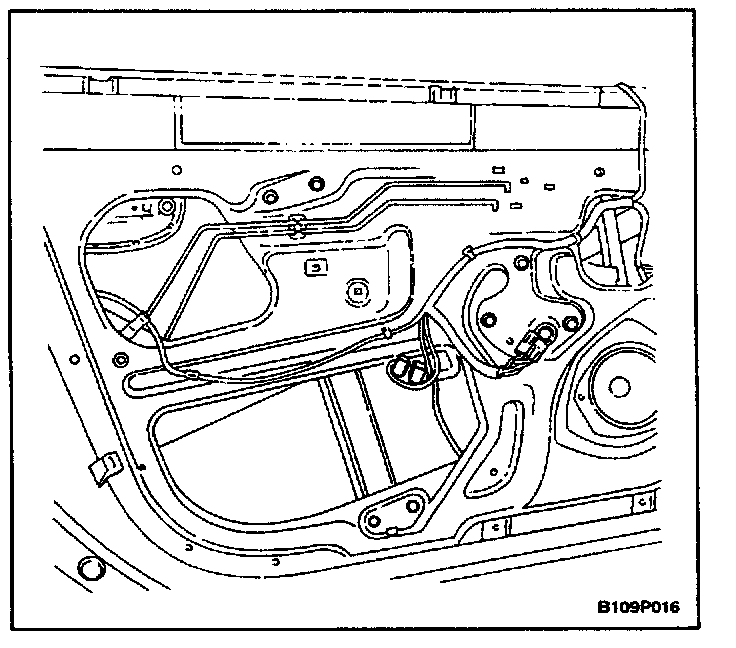

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the front door glass.
3. Disconnect the electrical connector.




4. Remove the nuts and the regulator.

Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.




1. Install the window regulator with the nuts.

Tighten
Tighten the window regulator nuts to 8 Nm (71 lb.in).




2. Connect the electrical connector.
3. Install the front door glass.
4. Connect the negative battery cable.
