Window Handle: Service and Repair

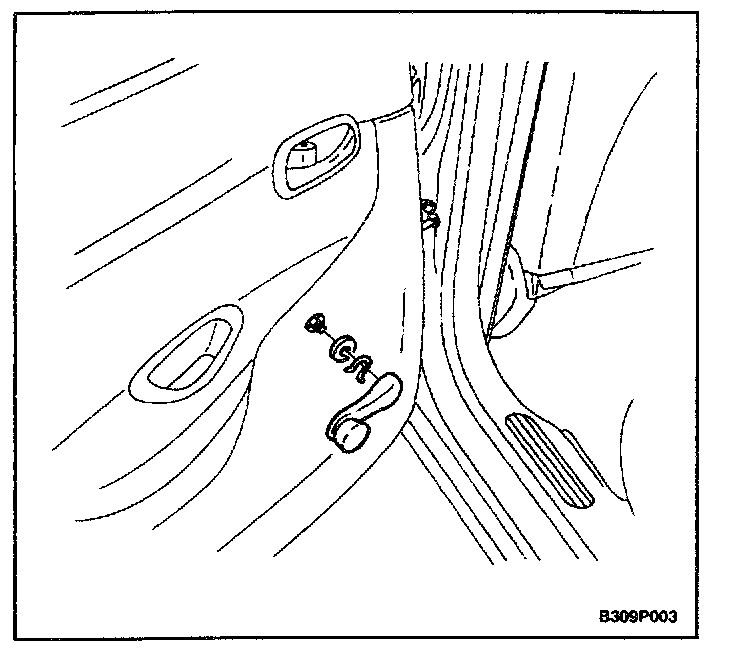

Removal Procedure
1. Reposition the plastic ring behind the window regulator handle to reveal the "C" clip.
2. Remove the "C" clip.
3. Remove the window regulator handle and the plastic ring.

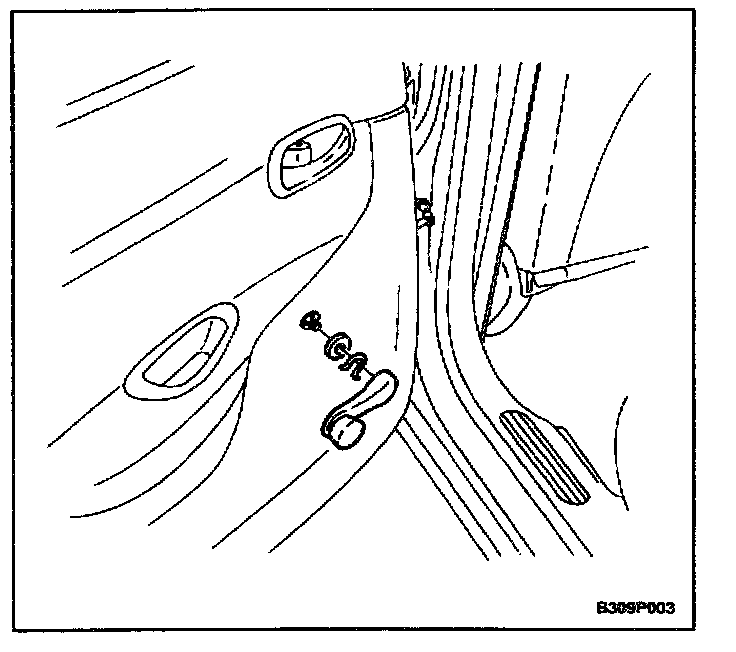

Installation Procedure
1. Install the plastic ring.
2. Install the "C" clip onto the window regulator handle.
3. Install the window regulator handle.
