Gearshift Lever Cover

Removal Procedure

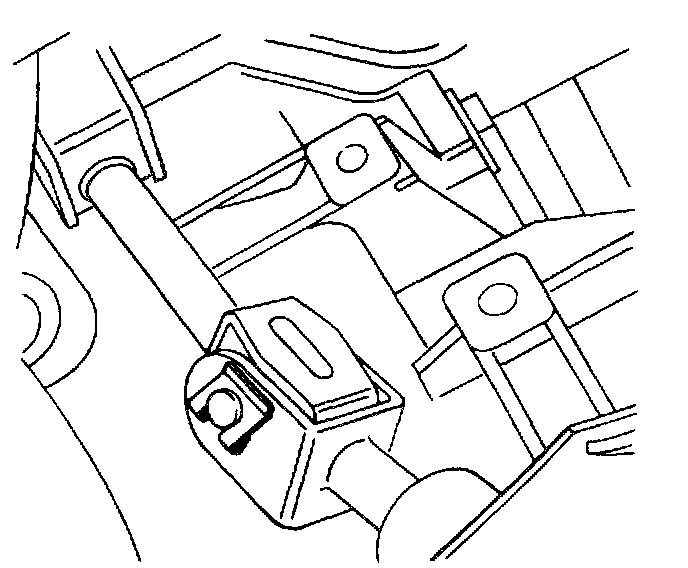

1. Remove the clip and the bolt at the universal joint.

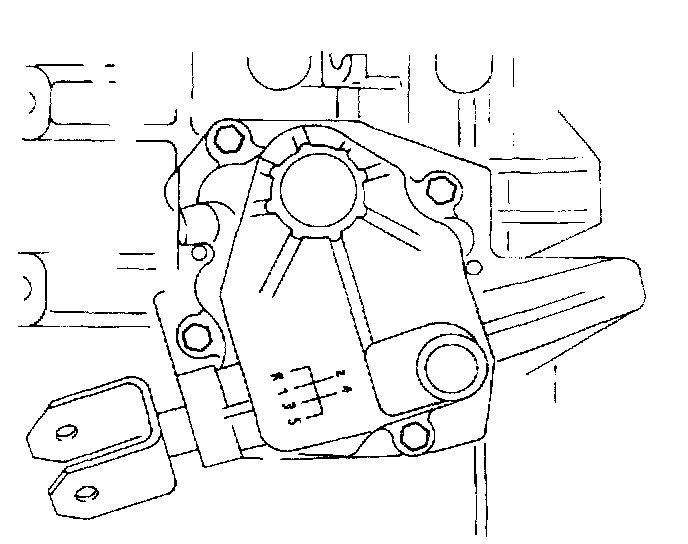

2. Remove the gearshift lever cover bolts.
3. Separate the gearshift lever cover and the gasket from the case.

Installation Procedure





1. Position the gearshift lever cover and the gasket onto the case.

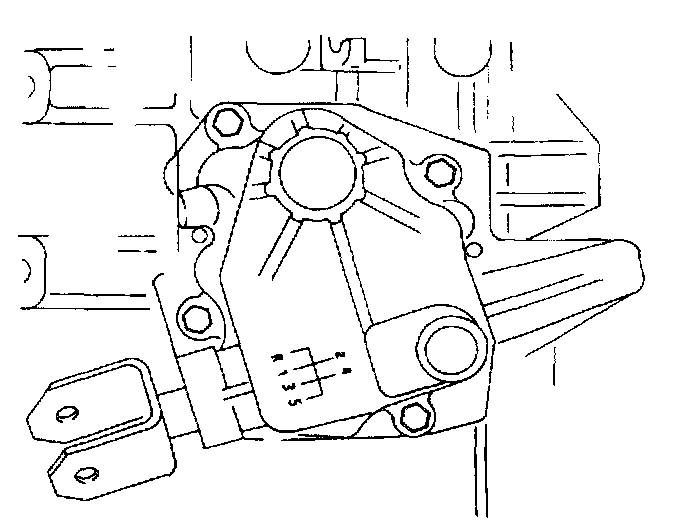

2. Install the gearshift lever cover bolts.
Tighten
Tighten the gearshift lever cover bolts to 22 Nm (16 ft. lbs.).

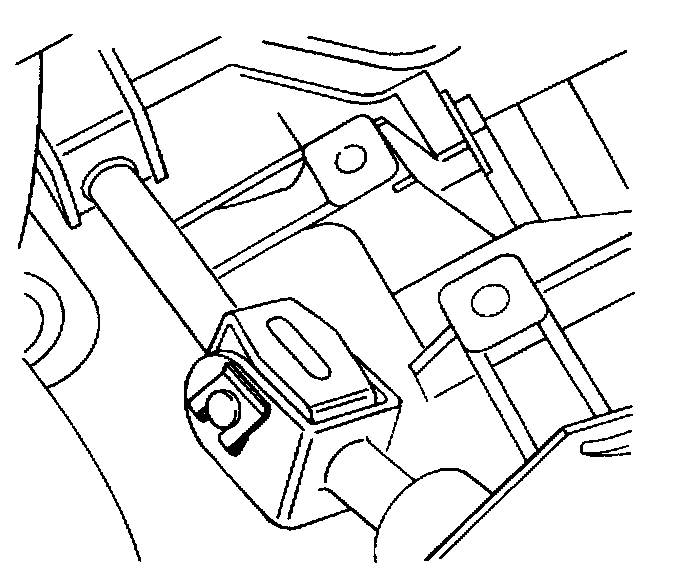

3. Install the bolt and the clip at the universal joint.
4. Check and adjust the fluid level. Refer to Manual Transmission Fluid.
