Input Shaft and Cluster Gear
INPUT SHAFT AND CLUSTER GEARTools Required
J-22912-01 Universal Bearing Puller
Disassembly Procedure

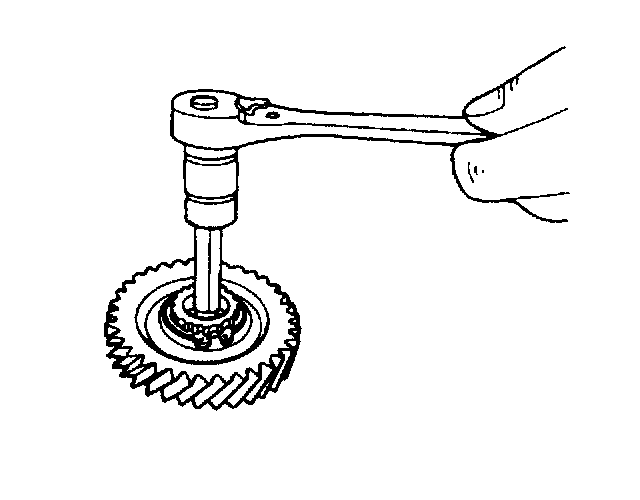

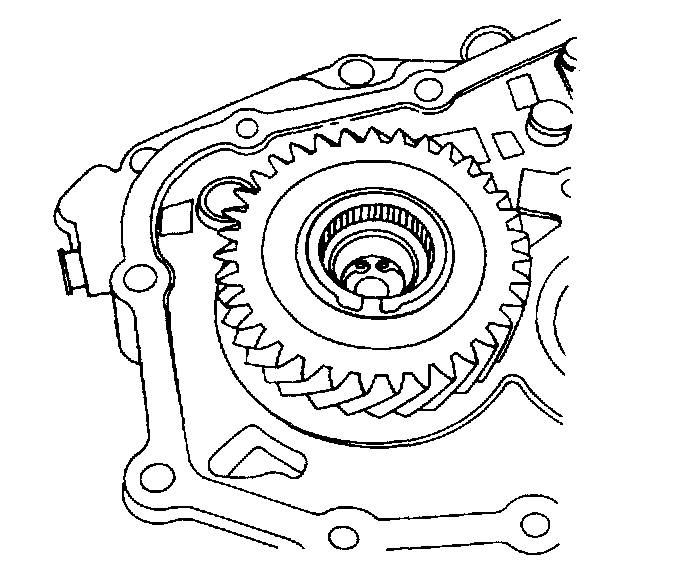

1. Remove the detent screw at the end of the input driveshaft.
2. Remove the snap ring at the base of the gear cluster.

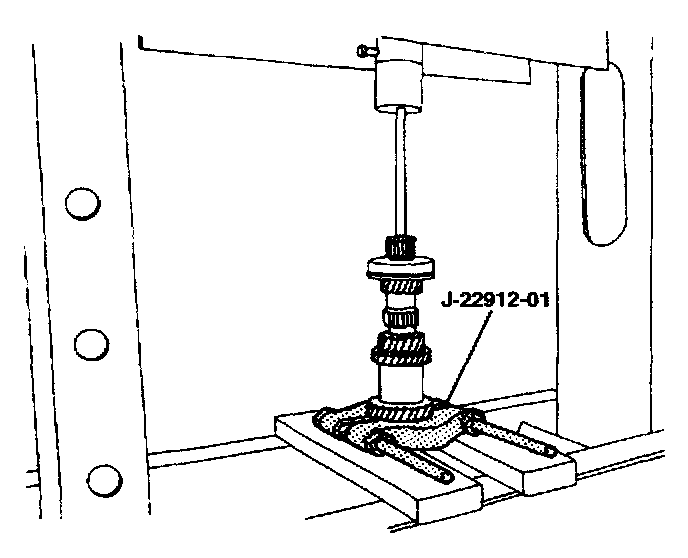

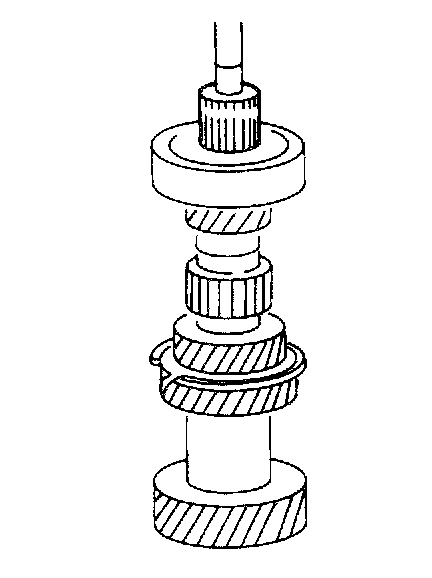

3. Press the input driveshaft from the input shaft cluster gear using the universal bearing puller J-22912-01.

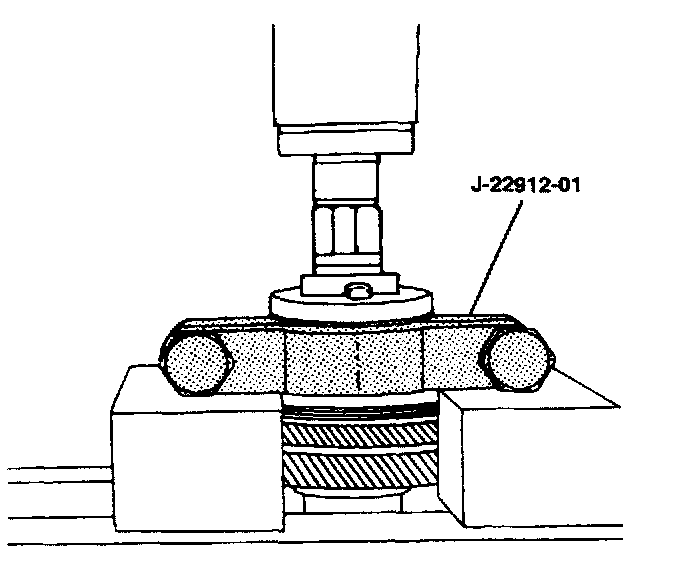

4. Remove the cluster shaft bearing from the input shaft gear cluster using universal bearing puller J-22912-01.
Assembly Procedure
1. Press the cluster shaft bearing onto the input shaft gear cluster.
2. Press the input driveshaft into the input shaft gear cluster assembly.
3. Install the snap ring at the base of the gear cluster.

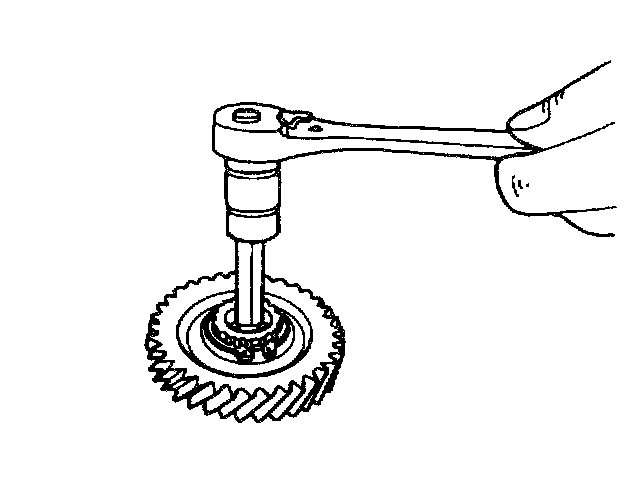

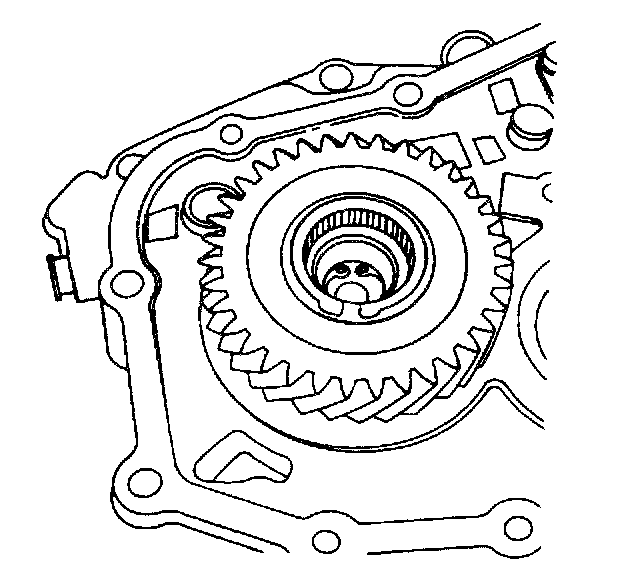

4. Install the detent screw at the end of the input driveshaft.
Tighten
Tighten the input driveshaft detent screw to 15 Nm (11 ft. lbs.).
