Front
HUB AND BEARINGTools Required
500-20 Hex Nut
J-36661-2 Forcing Screw
J-37105-B-1 Support Bridge
J-37105-B-2 Bearing Adapter
J-377105-B-3 Hub Adapter
Removal Procedure
1. Remove the drive axle from the front wheel hub. Refer to Steering Knuckle.

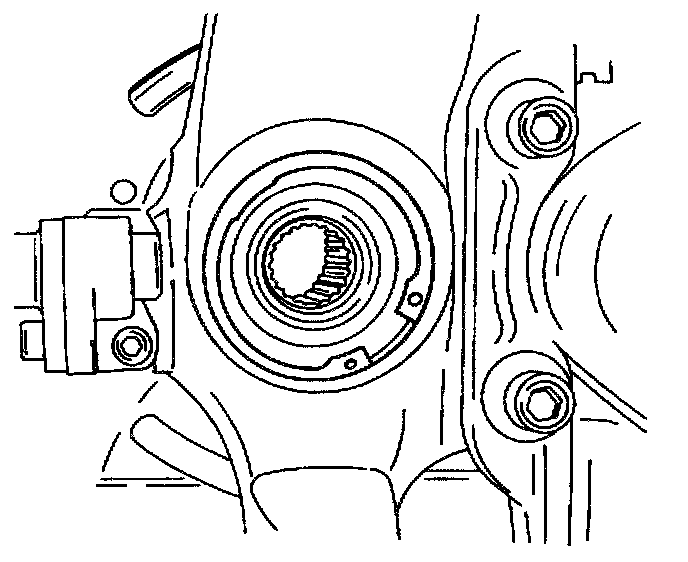

2. Remove the inner snap ring.
3. Remove the wheel hub with the support bridge J-37105-B-1, the hub adapter J-377105-B-3, the hex nut 500-20, and the forcing screw J-36661-2.
4. Remove the brake shield.
5. Remove the outer snap ring.

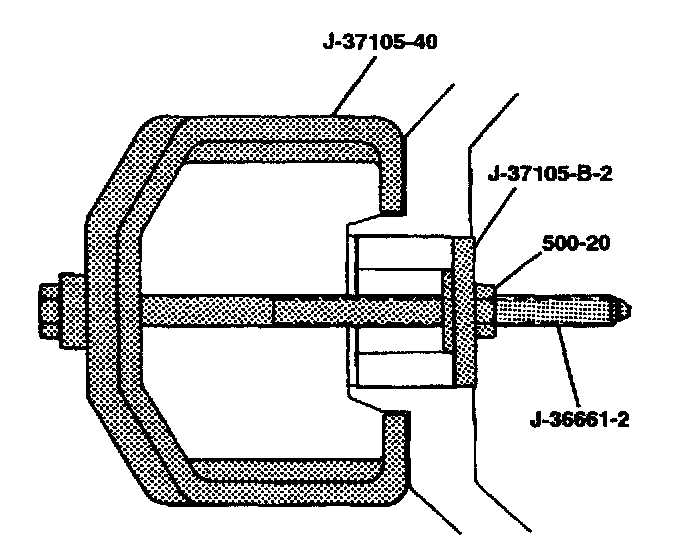

6. Remove the wheel bearing with the support bridge J-37105-B-1, the bearing adapter J-37105-13-2, the hex nut 500-20, and the forcing screw J-36661-2.
7. Clean the bore of the knuckle.
Installation Procedure
1. Install the outer snap ring and push the wheel bearing into place with the support bridge J-37105-13-1, the bearing adapter J-37105-13-2, the hex nut 500-20, and the forcing screw J-36661-2.
2. Install the brake shield.
3. Install the inner snap ring.
4. Push the wheel hub into place with the hub adapter J-37105-13-3, the bearing adapter J-37105-13-2, the hex nut 500-20, and the forcing screw J-36661-2.
5. Install the drive axle into the front wheel hub.
