Clutch Pedal Assembly: Service and Repair

Removal Procedure
1. Disconnect the negative battery cable.





2. Disconnect the return spring from the mount brace.

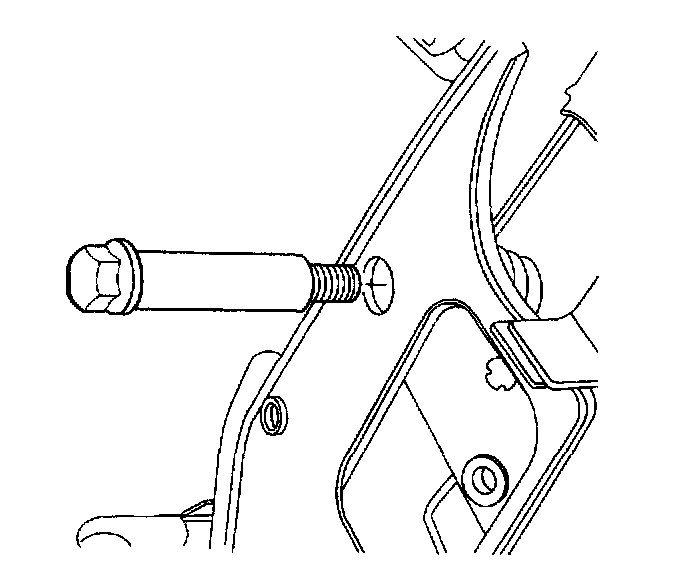

3. Remove the nut, the washer, and the pedal mounting shaft.

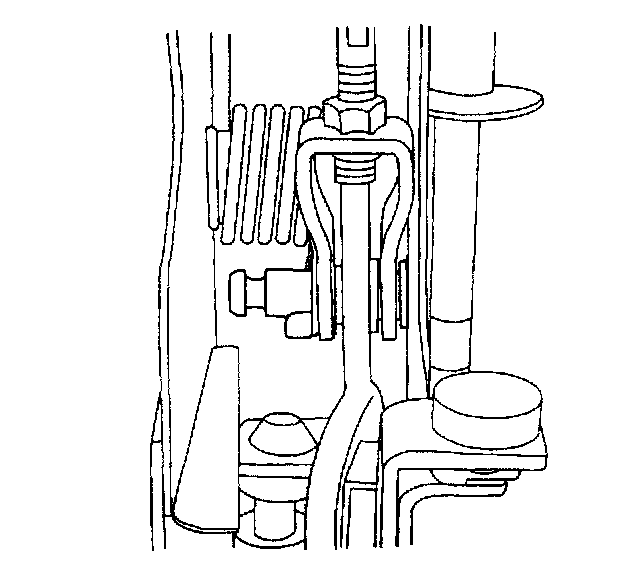

4. Remove the locking washer and the piston rod bolt.
5. Remove the clutch pedal with the return spring from the vehicle.

Installation Procedure





1. Install the clutch pedal with the return spring to the mount brace.
2. Coat the piston rod bolt with multi-purpose grease.
3. Install the piston rod bolt and the locking washer.
4. Coat the pedal mounting shaft with multi-purpose grease.





5. Install the pedal mounting shaft, the washer, and the nut.
Tighten
Tighten the clutch pedal nut to 18 Nm (13 ft. lbs.).





6. Connect the return spring to the mount brace.
7. Connect the negative battery cable.
