Unit Repair

Disassembly Procedure

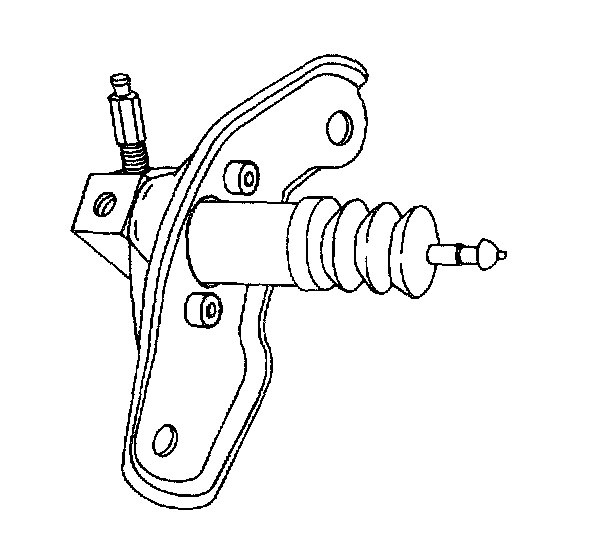

1. Remove the clutch release cylinder assembly from the vehicle. Refer to Removal and Installation.





2. Remove the bolts and brackets.





3. Remove the boot and the pushrod.

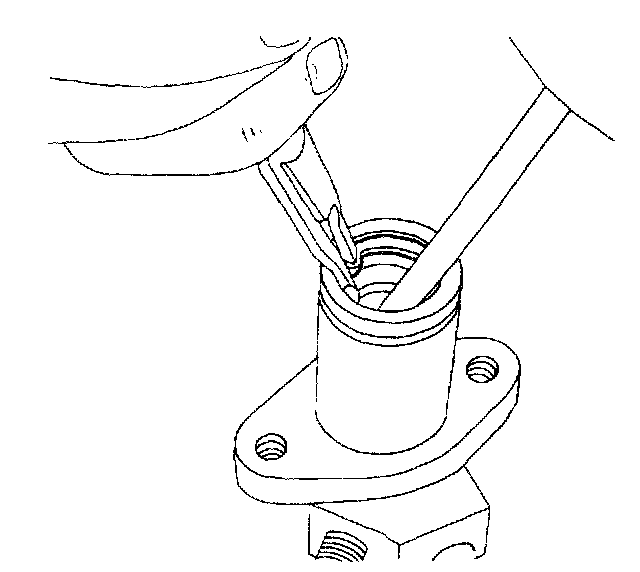

4. Compress the piston with a driver, then remove the snap ring with snap ring pliers.
5. Remove the piston assembly.

Assembly Procedure
1. Apply clean clutch fluid to the piston and the cup.
2. Install the spring to the piston, and insert the assembly into the cylinder body.





3. Compress the piston with a driver, then install the snap ring with snap ring pliers.





4. Install the pushrod and the boot.





5. Install the brackets and the bolts.
6. Install the clutch release cylinder assembly. Refer to Removal and Installation.
