Bracket

Removal Procedure
1. Raise and suitably support the vehicle.

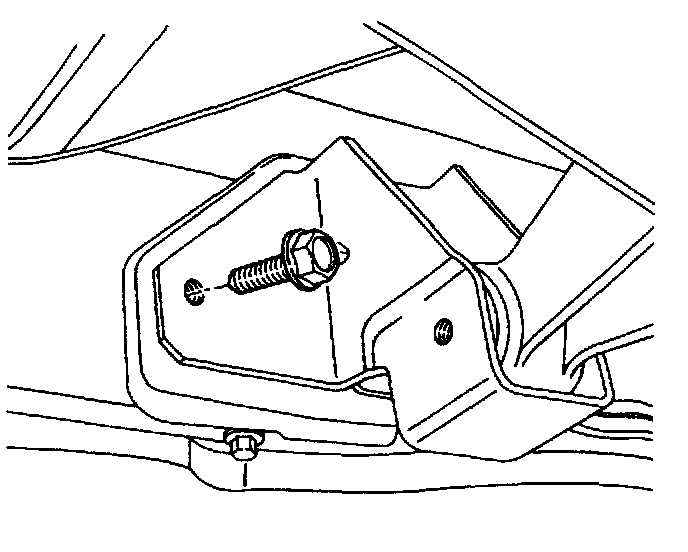

2. Remove the pivot bolt.

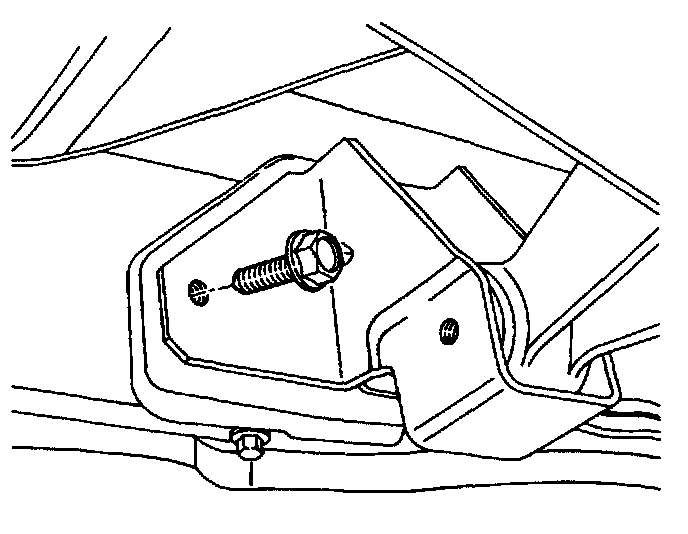

3. Remove the bolts and the transaxle mounting bracket from the vehicle.

Installation Procedure

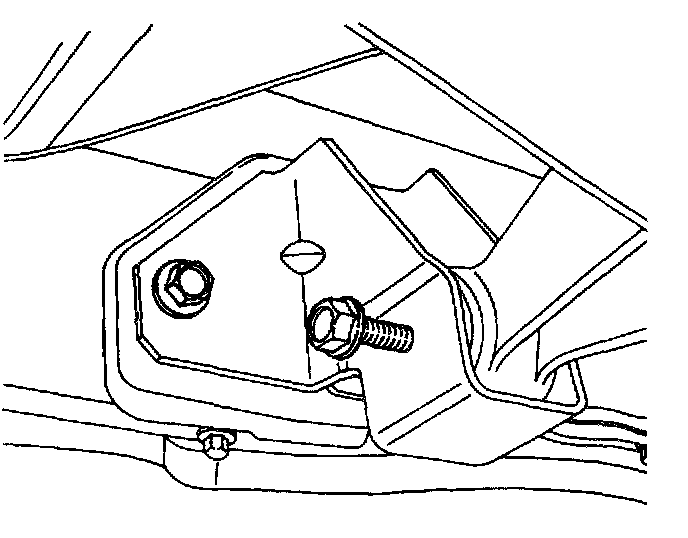

1. Install the transaxle mounting bracket and the transaxle mounting bracket bolts.
Tighten
Tighten the transaxle mounting bracket bolts to 61 Nm (45 ft. lbs.).





2. Install the pivot bolt.
Tighten
Tighten the pivot bolt to 58 Nm (43 ft. lbs.).
3. Lower the vehicle.
