Home >> Daewoo >> 1999 >> Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Non-Trouble Code Procedures >> Pressure Switch Assembly Resistance Check

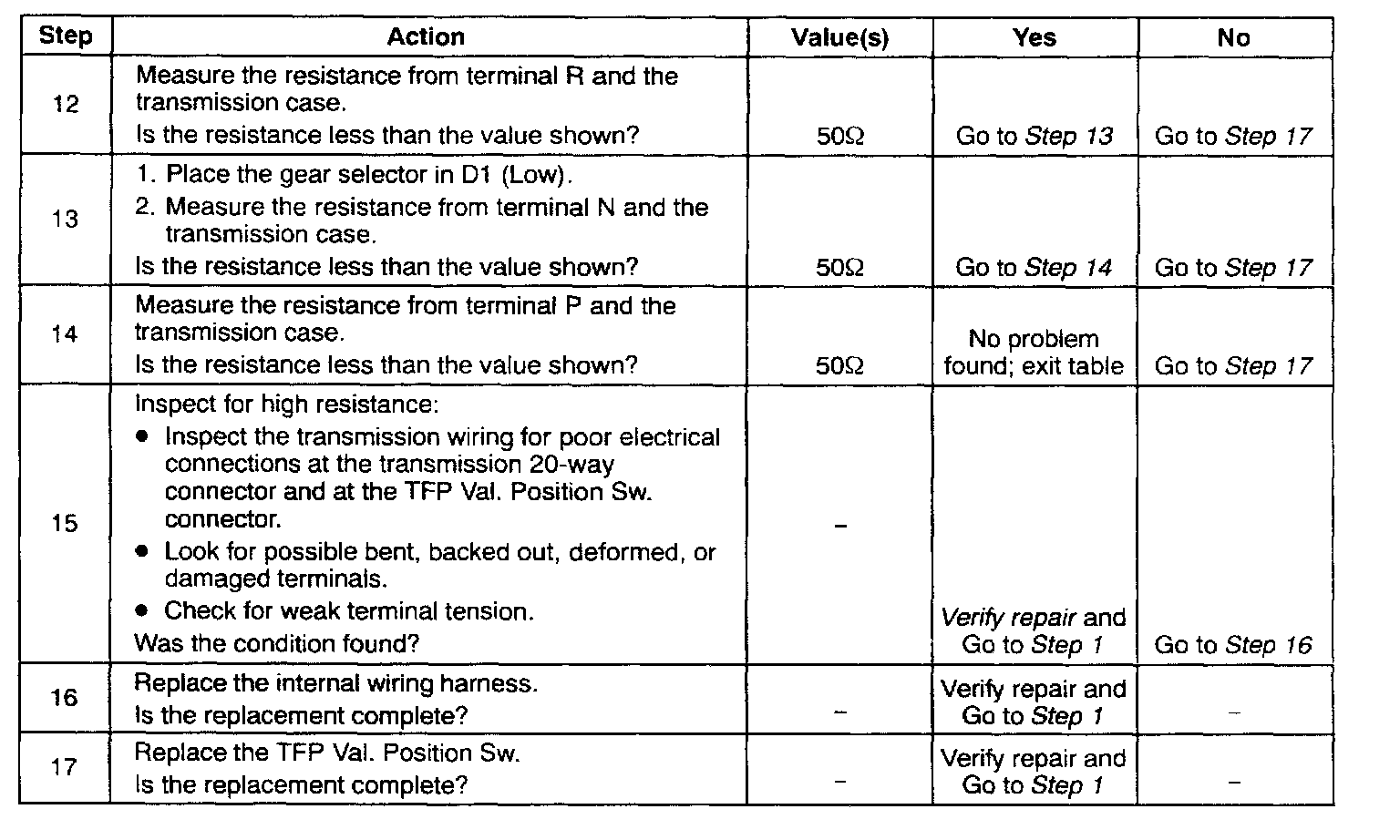

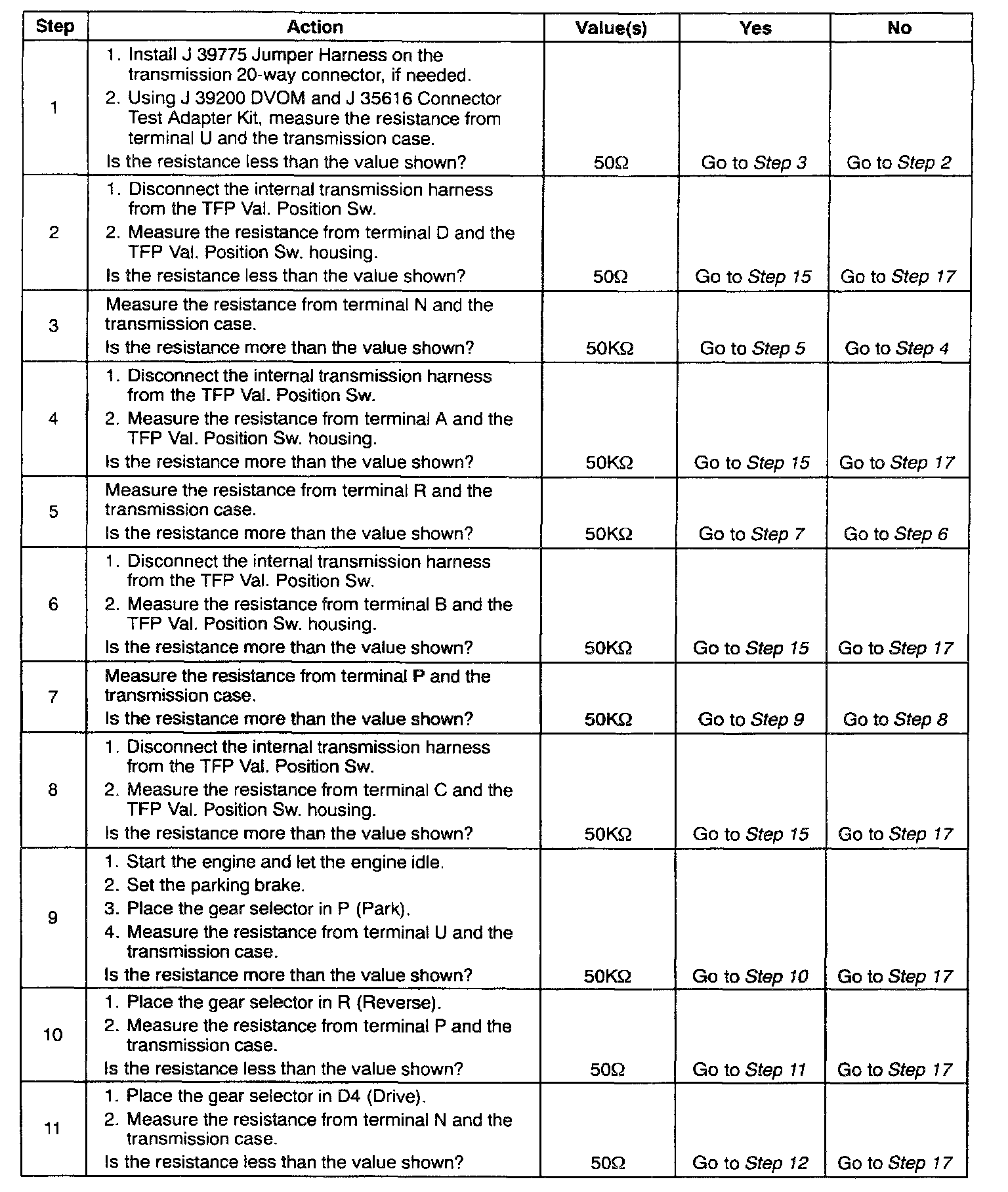

Pressure Switch Assembly Resistance Check








PRESSURE SWITCH ASSEMBLY RESISTANCE CHECK
