Hydra Matic 4T40-E Shift Speed Chart
Hydra Matic 4T40-E Shift Speed Chart
HYDRA-MATIC 4T40-E SHIFT SPEED CHART

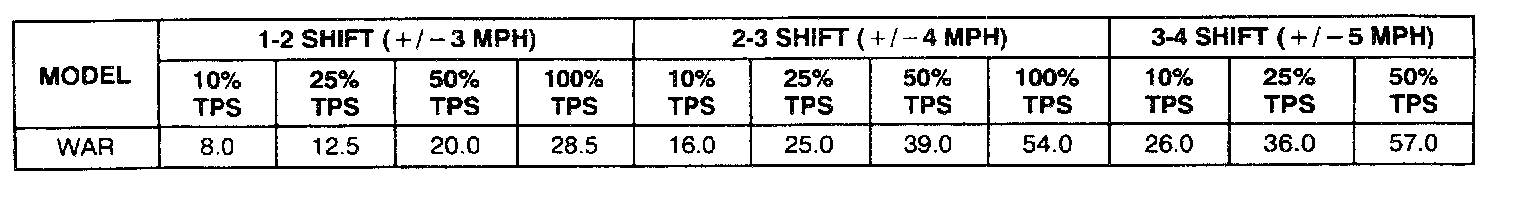

Upshift Speed Information

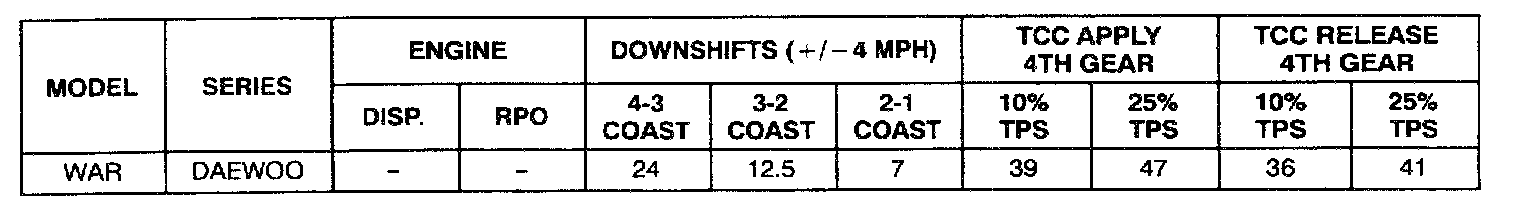

Transaxle Usage and Downshift Speed Information
