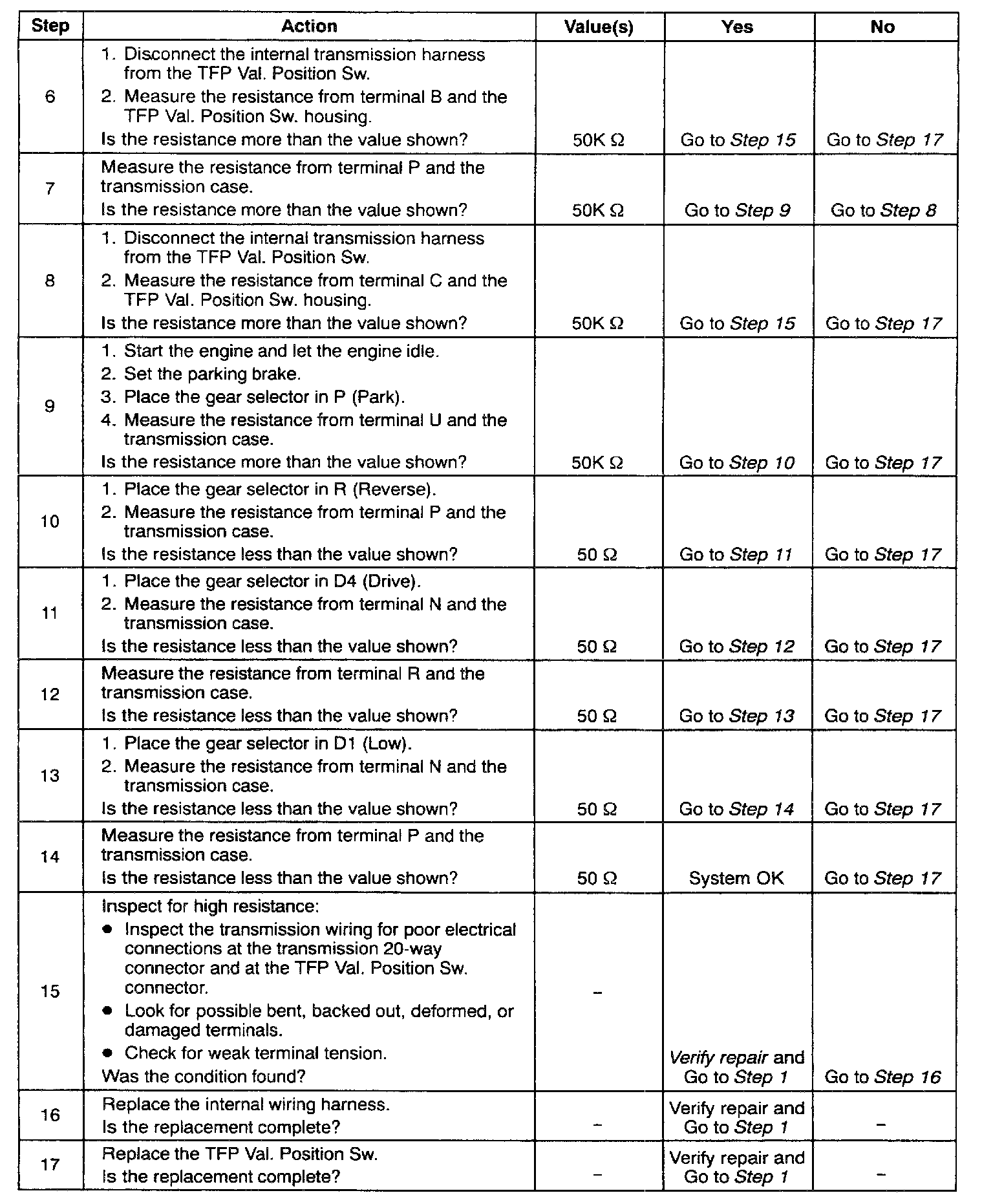

ATF Pressure Manual Valve Position Switch Resistance Check








AUTOMATIC TRANSMISSION FLUID PRESSURE MANUAL VALVE POSITION SWITCH RESISTANCE CHECK
