Home >> Daewoo >> 1999 >> Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Non-Trouble Code Procedures >> 4T40-E Component Resistance Chart

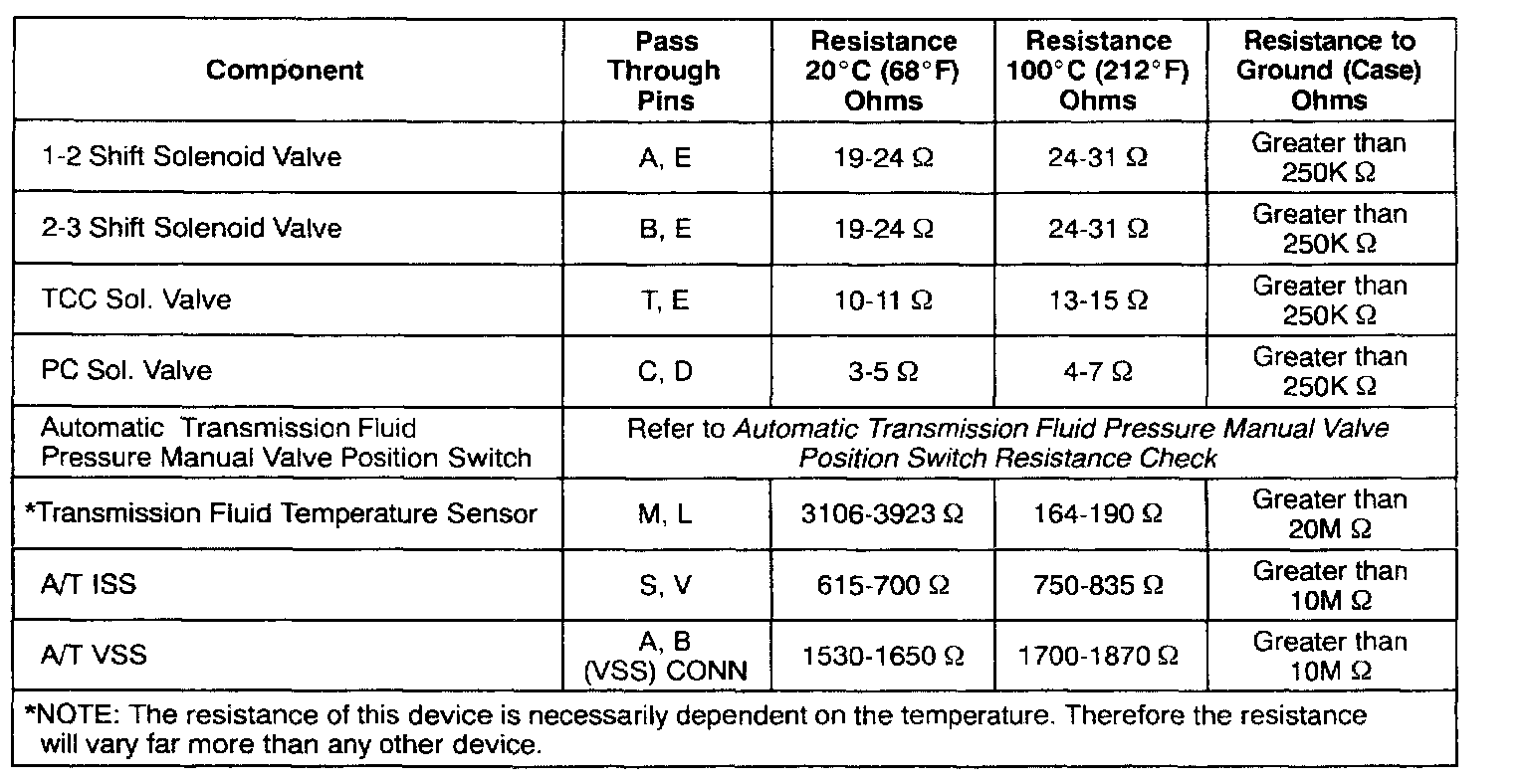

4T40-E Component Resistance Chart
