Shift Interlock: Service and Repair

Removal Procedure

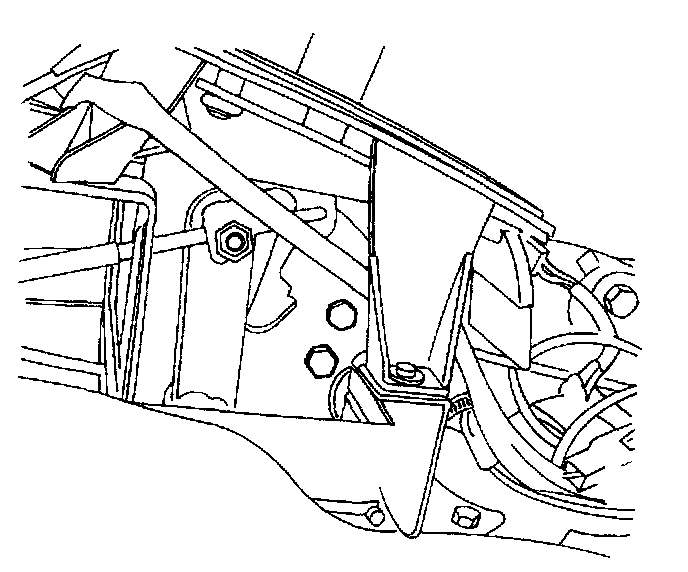

1. Disconnect the negative battery cable.
2. Remove the center console.

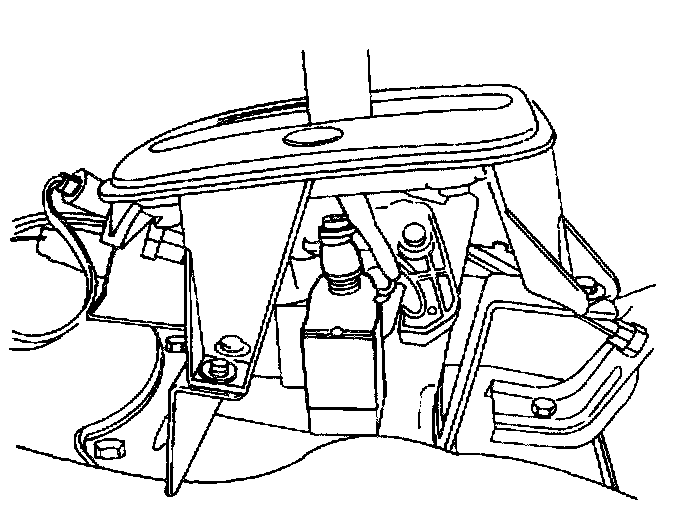

3. Disconnect the electrical connector from the shift interlock solenoid.





4. Remove the shift interlock solenoid bolts.





5. Remove the shift interlock solenoid.

Installation Procedure

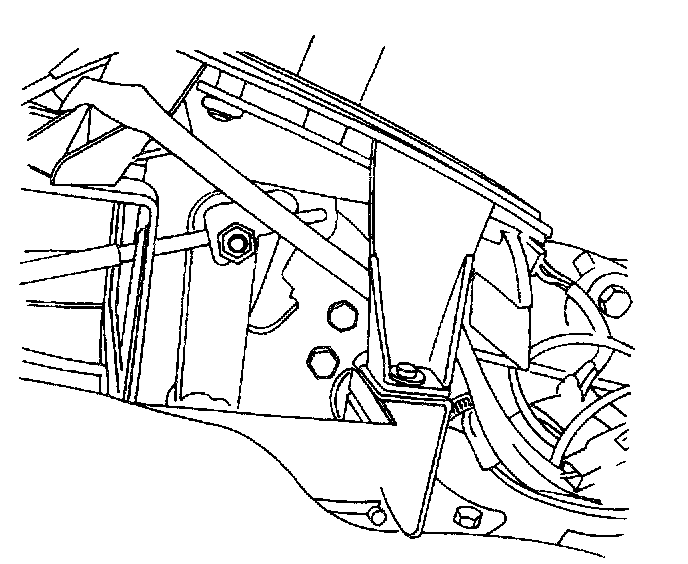

1. Install the shift interlock solenoid and the shift interlock solenoid bolts.
Tighten
Tighten the shift interlock solenoid bolts to 2 Nm.
2. Connect the electrical connector to the shift interlock solenoid.
3. Install the center console.
4. Connect the negative battery cable.
