Transaxle Cooler Line Seals Installation

TRANSAXLE COOLER LINE SEALS INSTALLATION

Tools Required
J 41239-1 Cooler Line Seal Installer

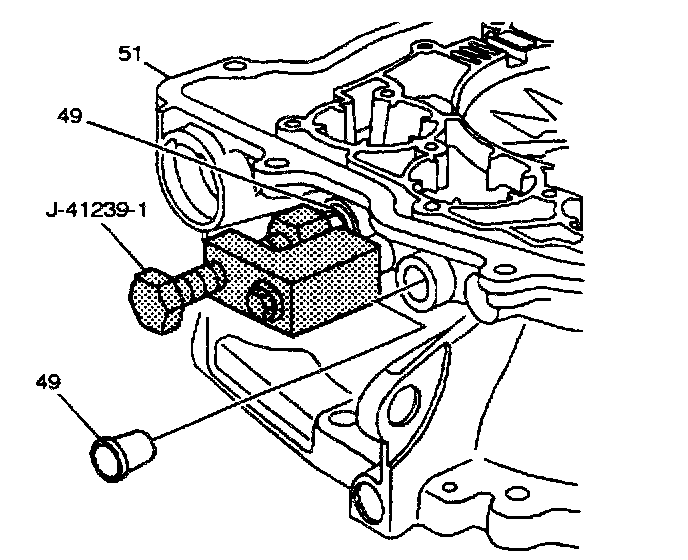

1. Place a new cooler line seal (49) in the case bore.
2. Install the J 41239-1 on the transmission case (51) at the cooler line bracket bolt hole.
3. Press the new cooler line seal (49) in by tightening the seal pressing bolt on the J 41239-1 until the seal bottoms out in the case bore.
4. Repeat steps 1 - 3 for the second cooler line seal (49).
