Torque Converter Seal Installation

TORQUE CONVERTER SEAL INSTALLATION

Tools Required
J 28540 Torque Converter Seal Installer

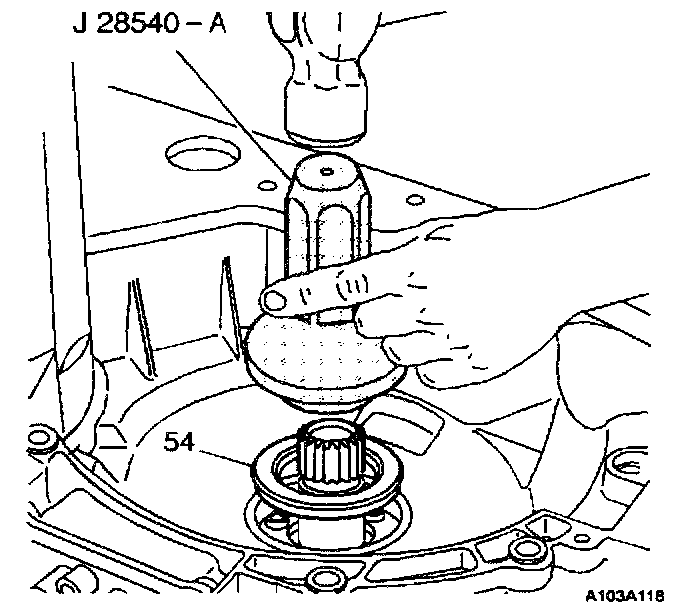

Install a new torque converter seal (54). Use the J 28540.
