Pressure Switch Assembly Removal

PRESSURE SWITCH ASSEMBLY REMOVAL

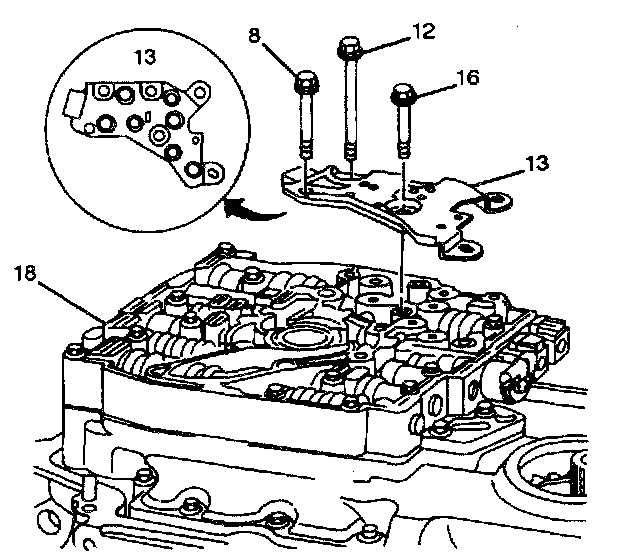

1. Remove the six bolts from the Pressure Switch Assembly (PSA) (8, 12 and 16).
2. Remove the PSA (13) from the control valve body assembly (18). The seven pressure switch O-rings are reusable and should remain with the PSA.
