Oil Level Control Valve Install

OIL LEVEL CONTROL VALVE INSTALL

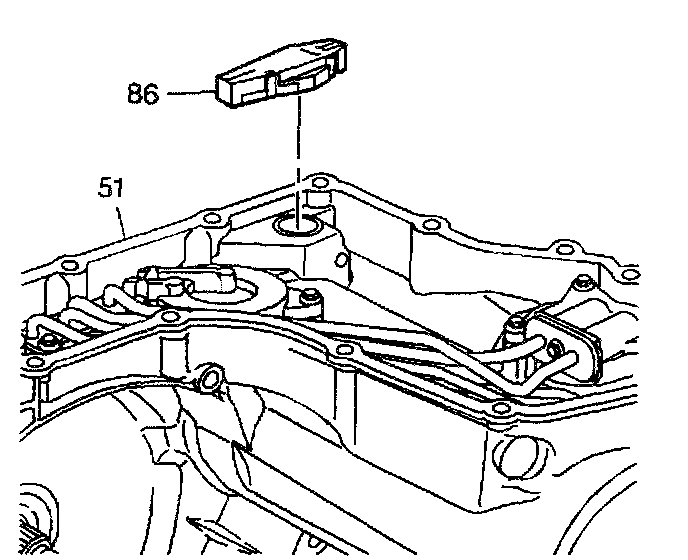

Install the oil level control valve into the transmission case (51). Push straight down on the center of the oil level control valve in order to prevent damage to the case bore.
