Low/Reverse Servo Removal
Low/Reverse Servo Removal

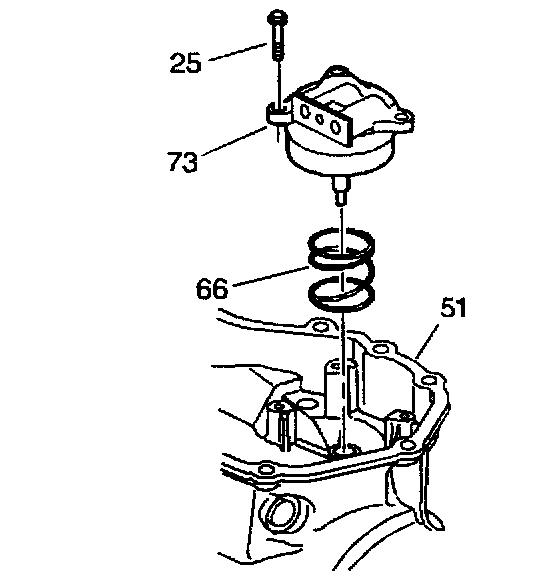

LOW/REVERSE SERVO REMOVAL
1.
Remove the three servo cover bolts (25).
2.
Remove the servo cover (Lo/Reverse) (73).
3.
Remove the servo return spring (66).
