INTER 4TH SERVO REMOVAL
1.

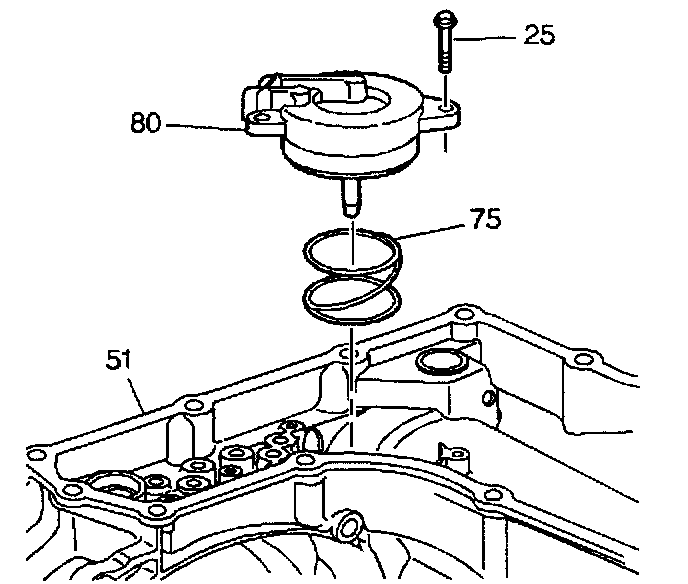

Remove the three servo cover bolts (25).
2.
Remove the servo cover (intermediate/fourth) (80) assembly.
3.
Remove the servo return spring (75).
