Fretting Ring, Final Drive Internal Gear Install

FRETTING RING, FINAL DRIVE INTERNAL GEAR INSTALL

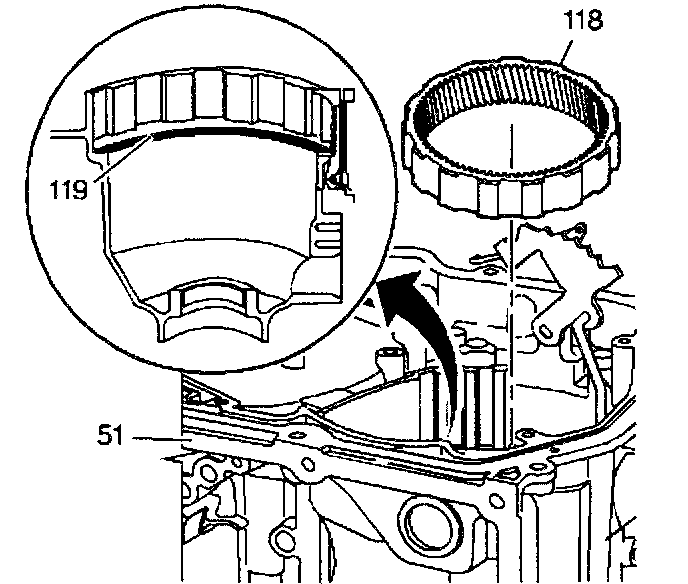

1. If the fretting ring (119) has been removed, install the fretting ring (119) into the small groove in the transmission case (51).
2. Install the final drive internal gear (118) into the transmission case (51).
