Forward Clutch and Low/Reverse Band Removal

FORWARD CLUTCH AND LOW/REVERSE BAND REMOVAL

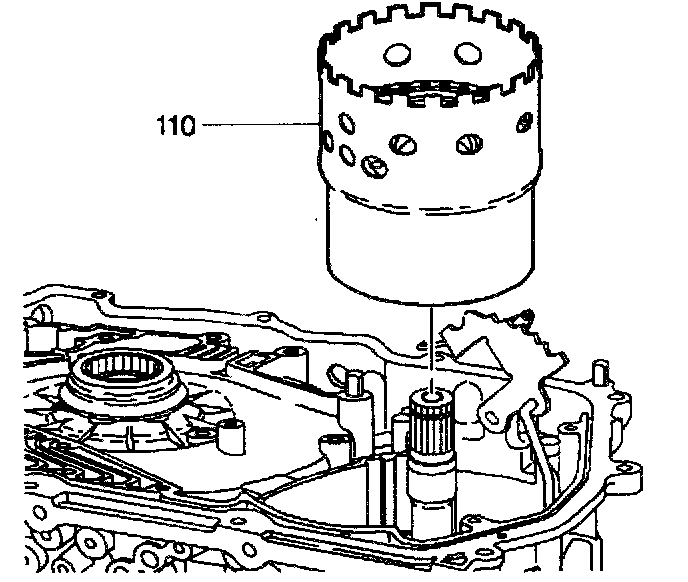

1. Remove the forward clutch assembly (110).





2. Remove the low/reverse band (111).
