Drive, Driven Sprockets and Drive Link Assemble
DRIVE, DRIVEN SPROCKETS AND DRIVE LINK ASSEMBLETools Required
J 29569-1/J 29829-1 Turbine Shaft Seal Installer
J 29569-2/J 29829-2 Turbine Shaft Seal Sizer
1. In order to assemble three new Teflon(TM) seals onto the turbine shaft, perform the following procedure:
1.1. Slide both halves of the J 29569-1 /J 29829-1 over the turbine shaft.
1.2. Coat the J 29569-1/J 29829-1 with transmission fluid.
1.3. Use your fingers in order to guide the new Teflon(TM) seals over the J 29569-1/J 29829-1 and into the seal ring grooves on the turbine shaft.
1.4. Remove the J 29569-1/J 29829-1 when the seals are in place.
1.5. Size the new Teflon(TM) seals. Use both halves of the J 29569-2/J 29829-2.
1.6. In order to properly size the seals, keep the J 29569-2/J 29829-2 in place for five minutes.

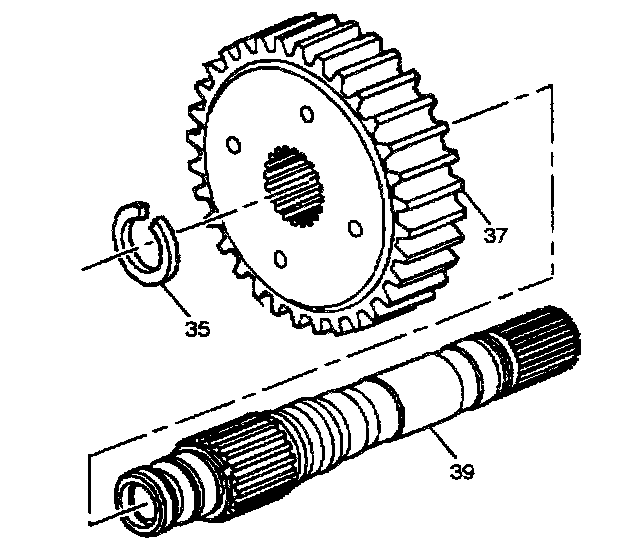

2. Assemble the drive sprocket (37) onto the turbine shaft (39).
3. Retain the drive sprocket with the turbine shaft to drive sprocket snap ring (35).
