Control Valve Body Assembly and Gasket Removal

CONTROL VALVE BODY ASSEMBLY AND GASKET REMOVAL

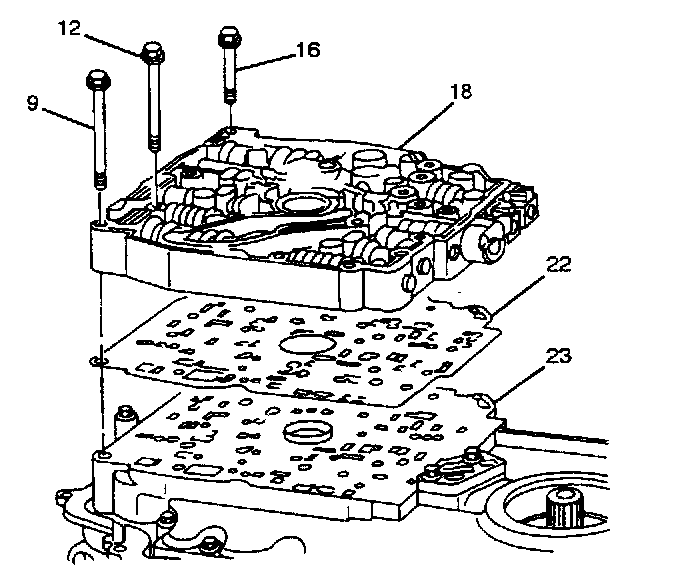

1. Remove the remaining twelve bolts (8, 12 and 16) from the control valve body assembly (18).
2. Remove the control valve body assembly (18).
3. Remove and discard the valve body to spacer plate gasket (22).
