CONTROL VALVE ASSEMBLY AND TFP SWITCH INSTALL





1. Install the control valve body assembly to spacer plate gasket (22) onto the spacer plate (23).
2. Install the control valve body assembly (18) onto the transmission.

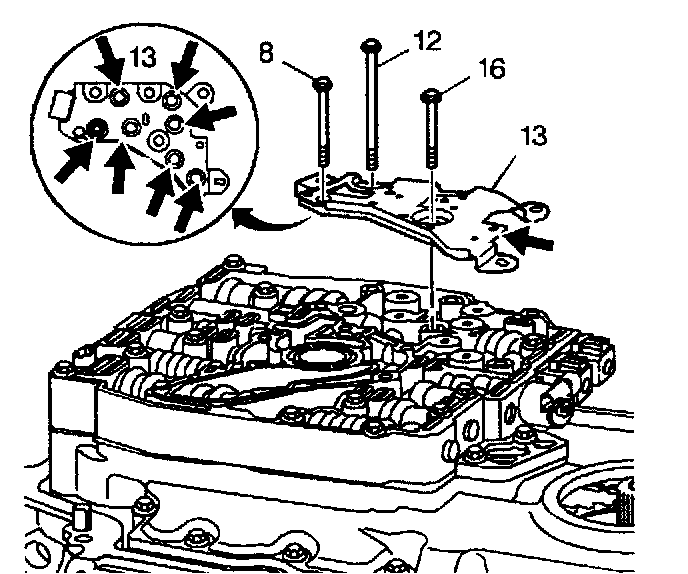

3. Inspect the Transmission Fluid Pressure (TFP) switch (13) in order to verify the condition and correct location of the seven pressure switch O-rings.
4. If necessary, replace the pressure switch O-rings.

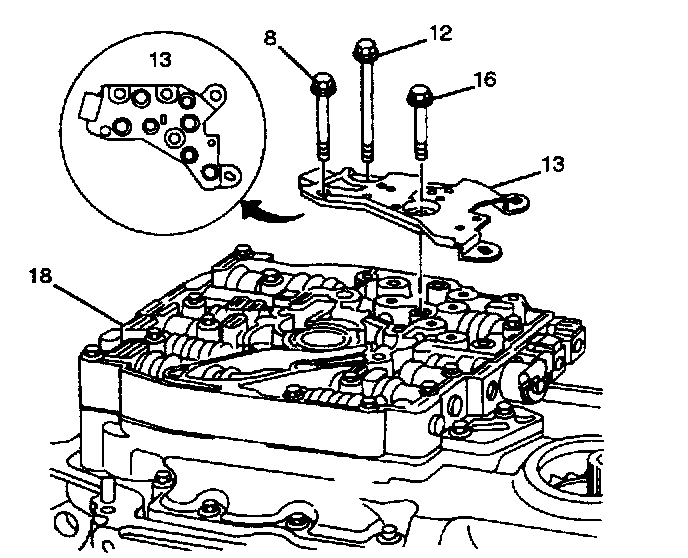

5. Install the TFP switch (13) onto the control valve assembly.

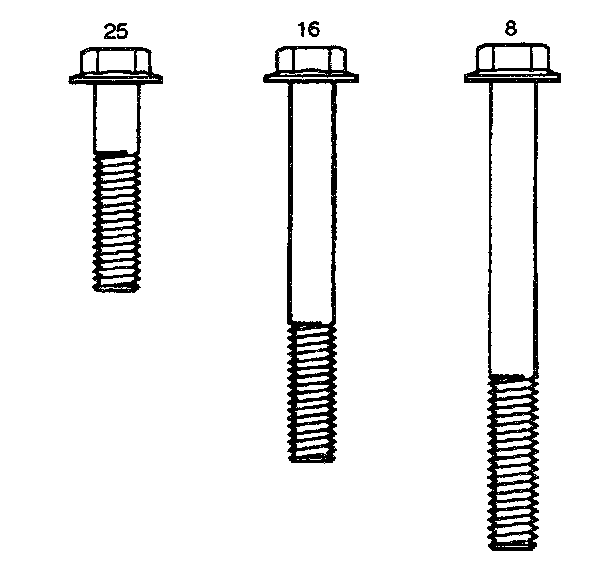

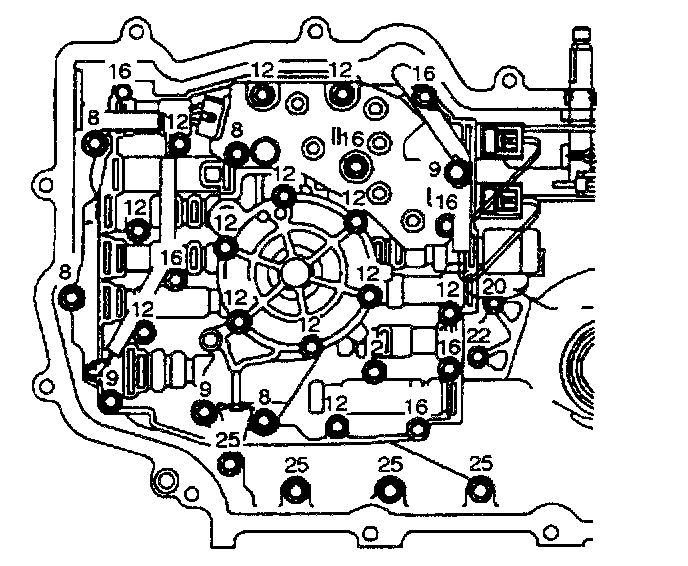

6. Install the eighteen control valve assembly bolts.





7. Hand start the bolts, then tighten the bolts to 12 Nm (9 ft. lbs.).
