2ND/4TH Servo Assembly

Removal Procedure
1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle.
3. Remove the transaxle pan, gasket, and filter.

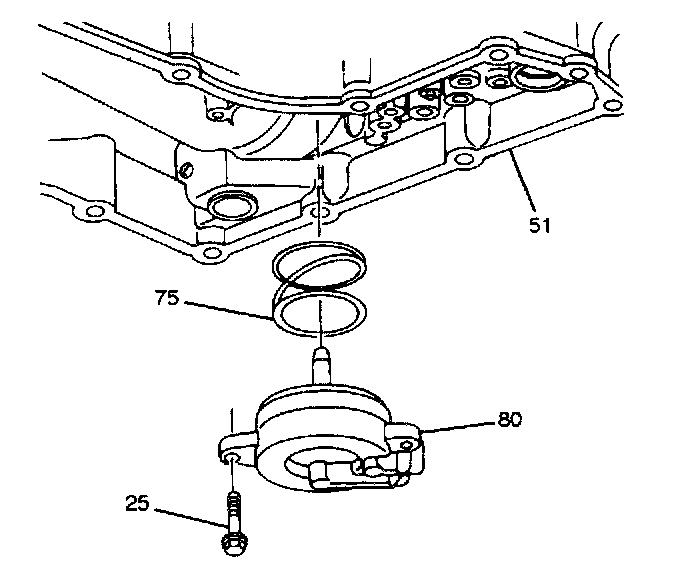

4. Remove the servo cover bolts (25) and the servo cover (80).
5. Remove the piston assembly and the return spring (75).

Installation Procedure





1. Install the servo return spring (75), the piston assembly, the servo cover (80), and servo cover bolts (25).
Tighten
Tighten the servo cover bolts (25) to 12 Nm (106 inch lbs.).
2. Install the transaxle filter, gasket, and pan.
3. Lower the vehicle.
4. Refill the transaxle fluid.
5. Connect the negative battery cable.
