Trailing Link Bracket

Removal Procedure
1. Raise and suitably support the vehicle.

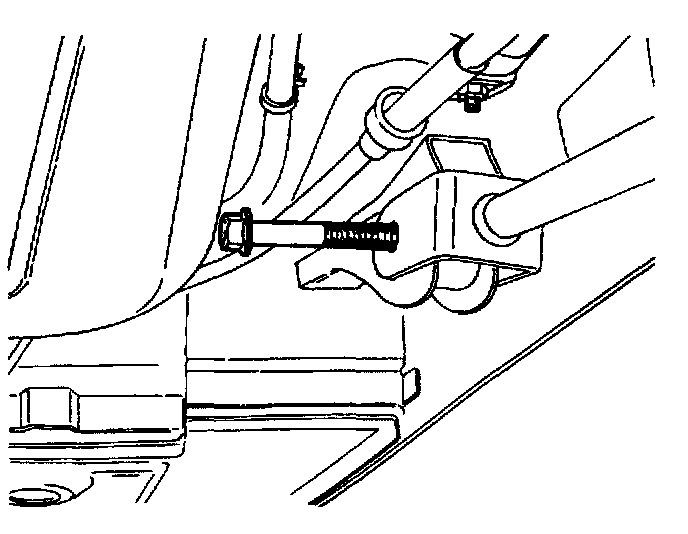

2. Remove the trailing link-to-trailing link bracket nut and bolt.

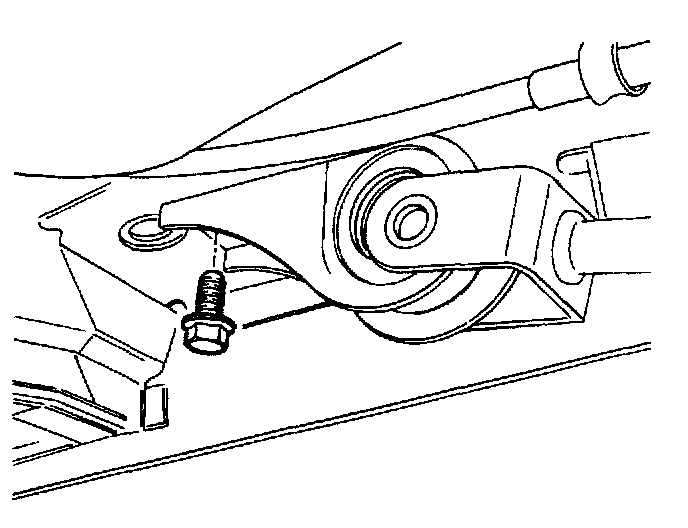

3. Remove the trailing link bracket-to-body bolts.

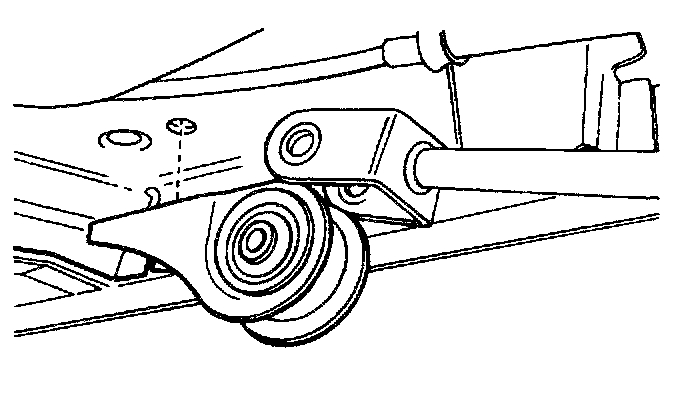

4. Remove the trailing link bracket.

Installation Procedure





1. Install the trailing link bracket.

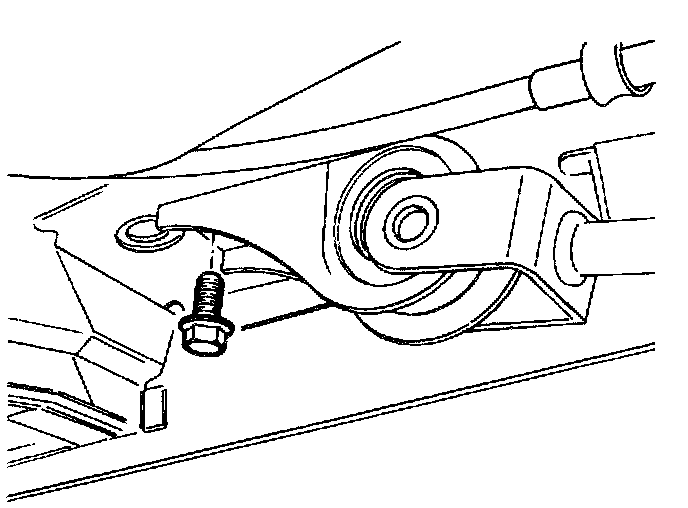

2. Install the trailing link bracket-to-body bolts.
Tighten
Tighten the trailing link bracket-to-body bolts to 93 Nm (69 ft. lbs.).

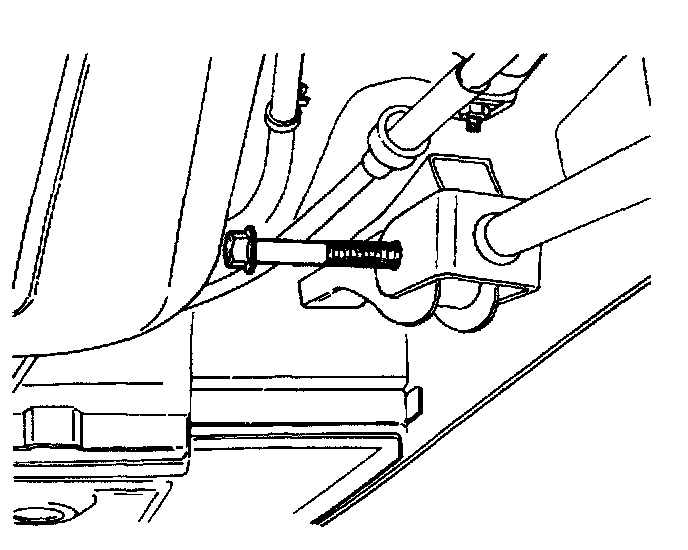

3. Connect the trailing link to the trailing link bracket by installing the trailing link-to-trailing link bracket nut and bolt.
Tighten
Tighten the trailing link-to-trailing link bracket nut to 100 Nm (74 ft. lbs.).
4. Lower the vehicle.
