Trailing Link

Removal Procedure
1. Raise and suitably support the vehicle.

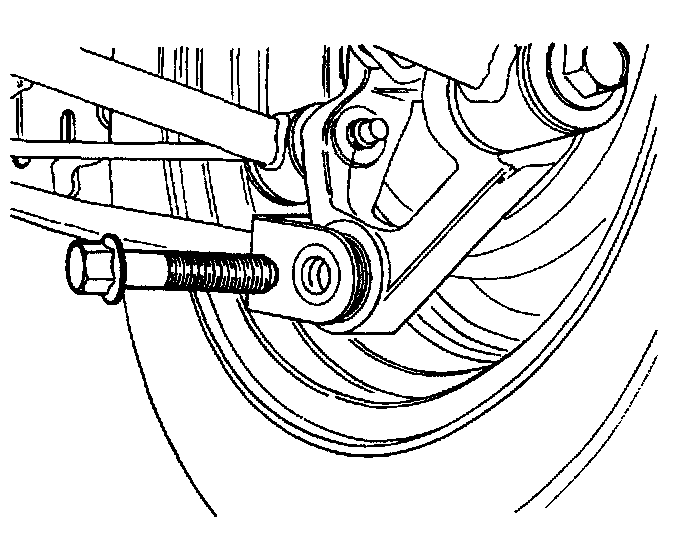

2. Remove the rear trailing link-to-rear knuckle bolt.

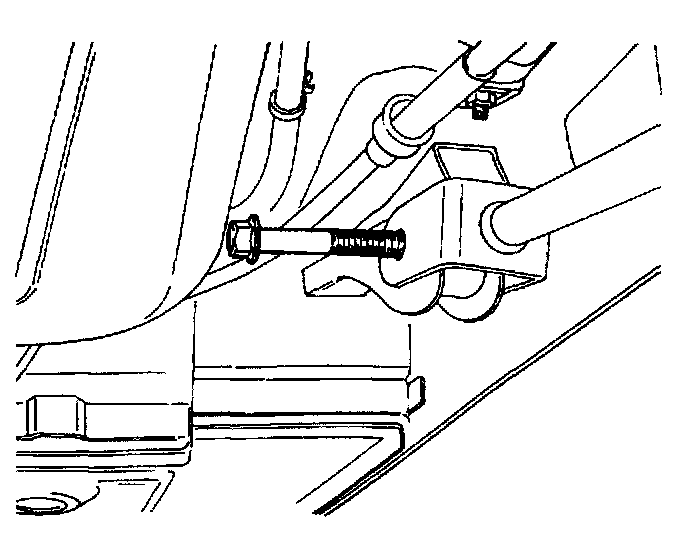

3. Remove the rear trailing link bracket nut and the rear trailing link-to-knuckle bolt.

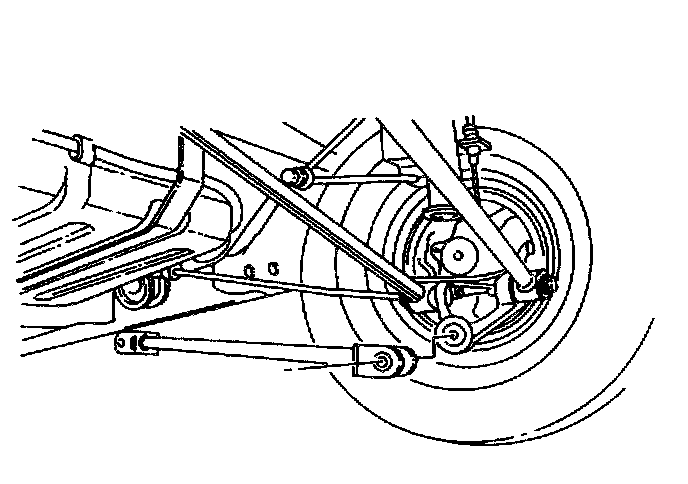

4. Remove the rear trailing link.

Installation Procedure

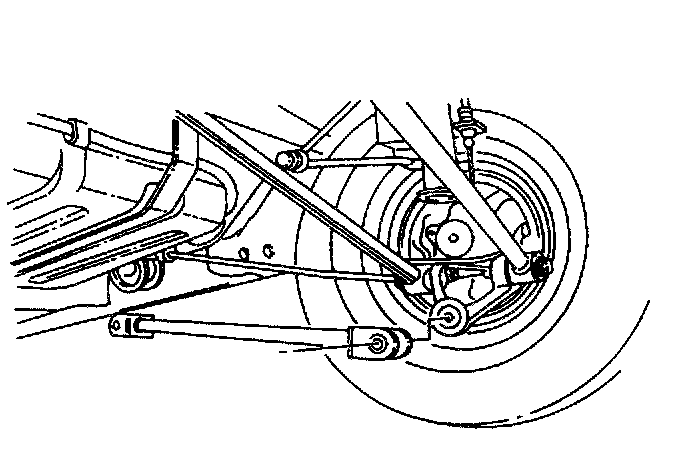

1. Install the rear trailing link.

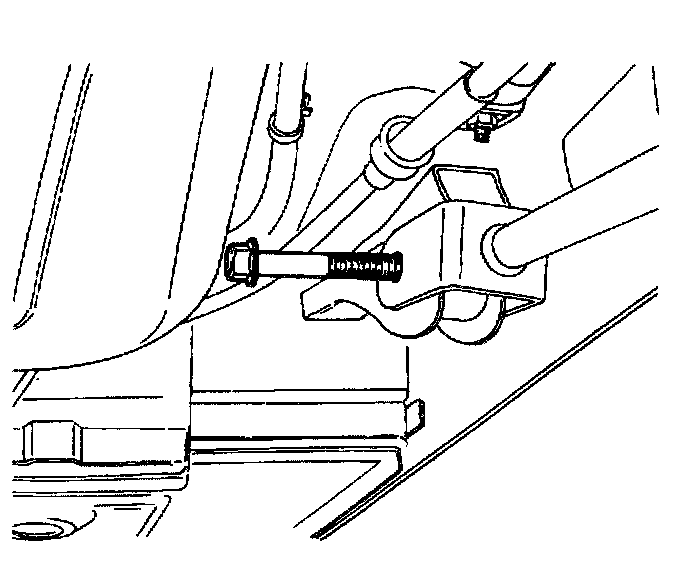

2. Install the rear trailing link bracket nut and bolt.
Tighten
Tighten the rear trailing link bracket nut to 100 Nm (74 ft. lbs.).

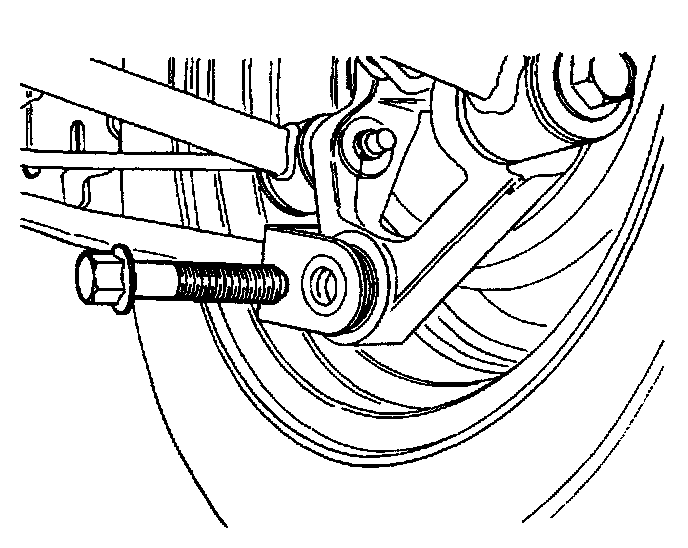

3. Install the trailing link-to-knuckle bolt.
Tighten
Tighten the rear trailing link-to-knuckle bolt to 93 Nm (69 ft. lbs.).
4. Lower the vehicle.
