Rear

Removal Procedure
1. Raise and suitably support the vehicle.
2. Remove the wheel.

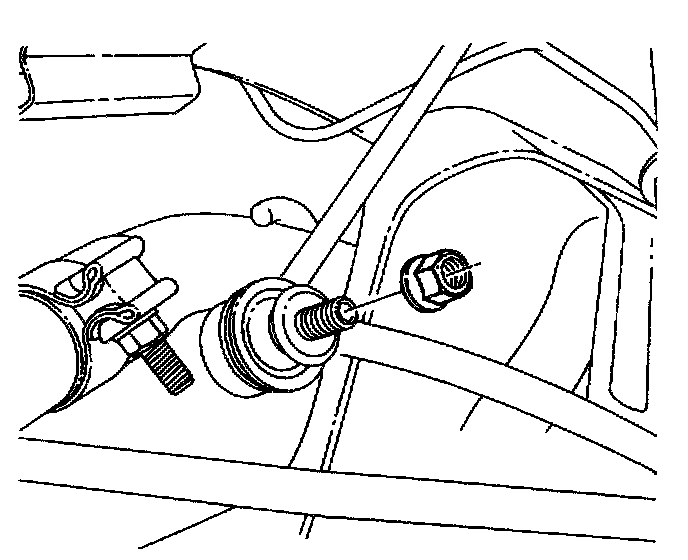

3. Remove the stabilizer shaft-to-stabilizer link nut.

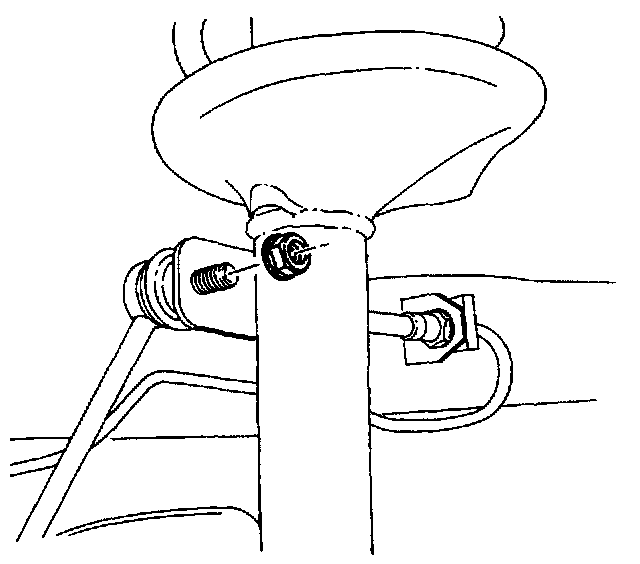

4. Remove the stabilizer link-to-strut assembly nut.
5. Remove the stabilizer link.

Installation Procedure





1. Install the stabilizer link.
2. Install the stabilizer link-to-strut assembly nut.
Tighten
Tighten the stabilizer link-to-strut assembly nut to 44 Nm (32 ft. lbs.).





3. Install the stabilizer shaft-to-stabilizer link nut.
Tighten
Tighten the stabilizer shaft-to-stabilizer link nut to 44 Nm (32 ft. lbs.).
4. Install the wheel.
5. Lower the vehicle.
