Front

Removal Procedure

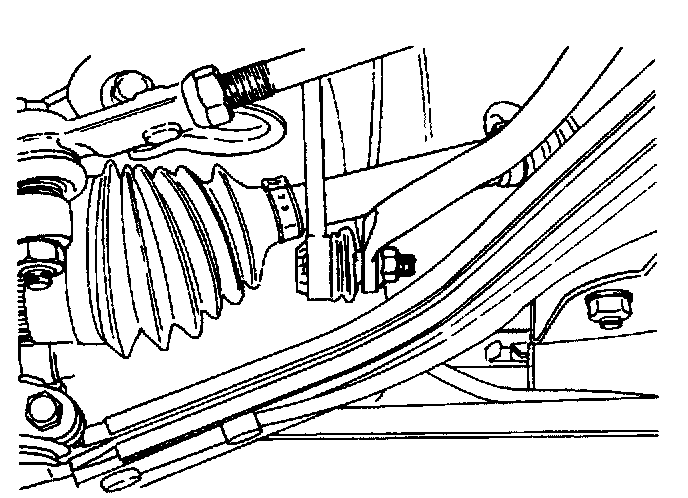

1. Remove the stabilizer-to-stabilizer link nut.





2. Remove the stabilizer link-to-strut assembly nut.

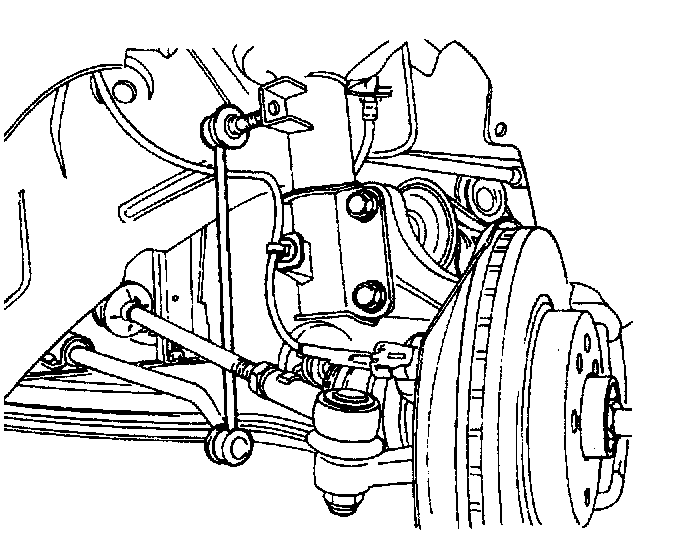

3. Remove the stabilizer link.

Installation Procedure

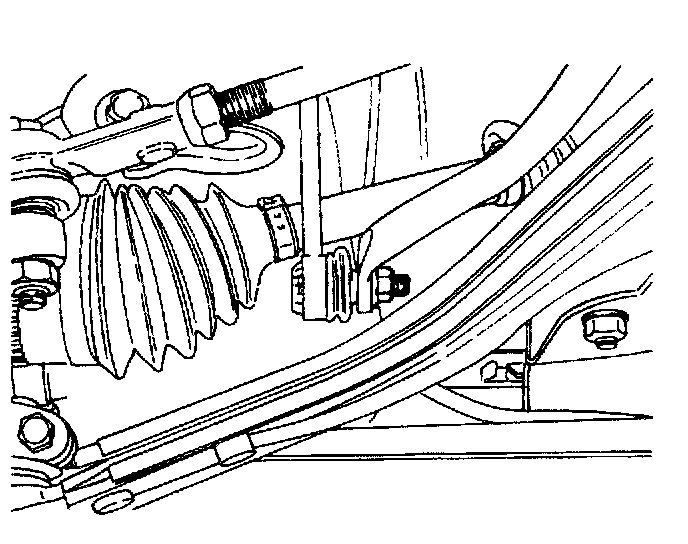

1. Install the stabilizer link.





2. Install the stabilizer link-to-strut assembly nut.
Tighten
Tighten the stabilizer link-to-strut assembly nut to 47 Nm (35 ft. lbs.).





3. Install the stabilizer-to-stabilizer link nut.
Tighten
Tighten the stabilizer-to-stabilizer link nut to 47 Nm (35 ft. lbs.).
