Front

STABILIZER SHAFT AND INSULATORS
Removal Procedure
1. Raise and suitably support the vehicle, allowing the control arms to hang free.
2. Remove the front wheels.

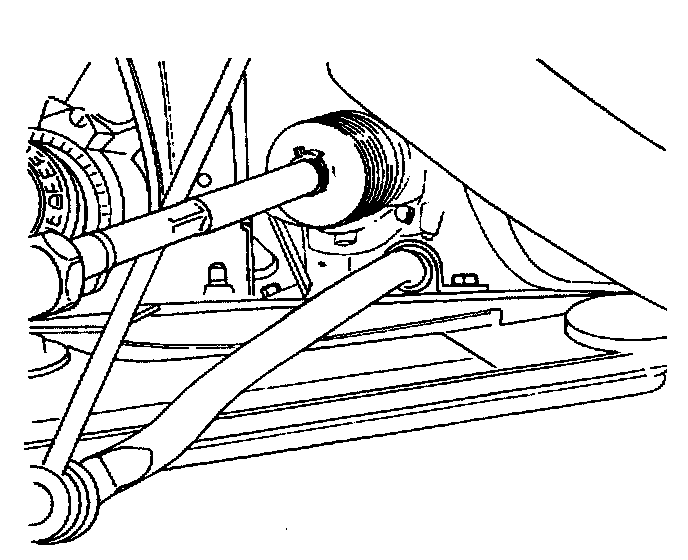

3. Remove the stabilizer shaft-to-crossmember clamp bolt.

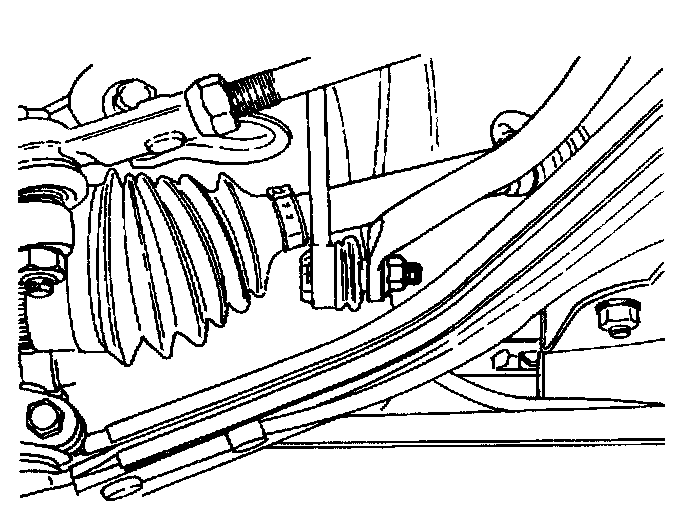

4. Remove the stabilizer shaft-to-stabilizer link nut.

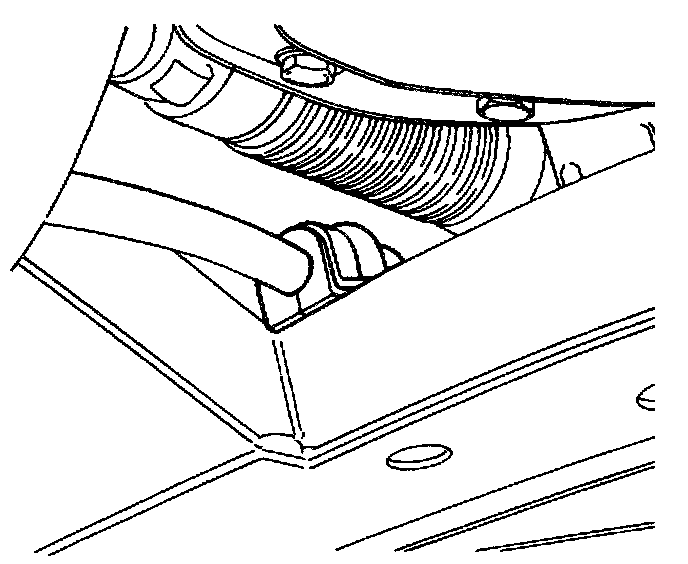

5. Remove the stabilizer shaft, the stabilizer shaft insulator clamp, and the insulators from the vehicle.

Installation Procedure





1. Install the stabilizer shaft.

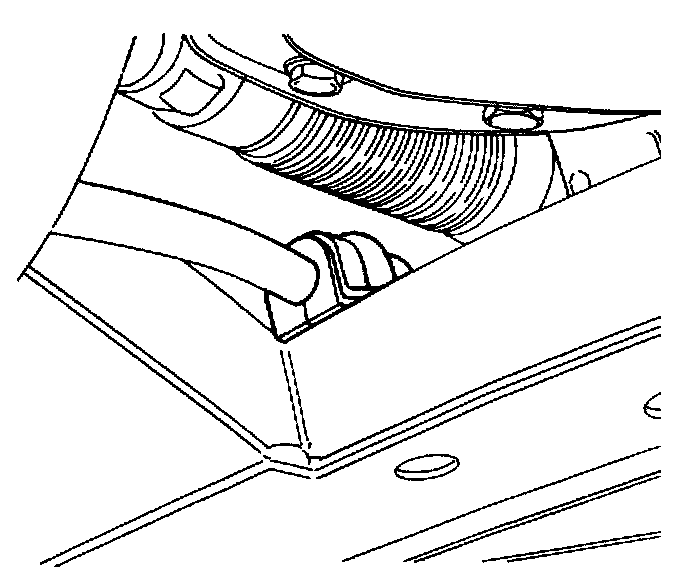

2. Install the stabilizer shaft insulator clamps, the stabilizer shaft clamp bolt, and the insulators. Do not tighten the bolt.





3. Install the stabilizer link onto the stabilizer shaft and connect them with the stabilizer shaft-to-stabilizer link nut.
Tighten
Tighten the stabilizer shaft-to-stabilizer link nut to 47 Nm (35 ft. lbs.).
Tighten

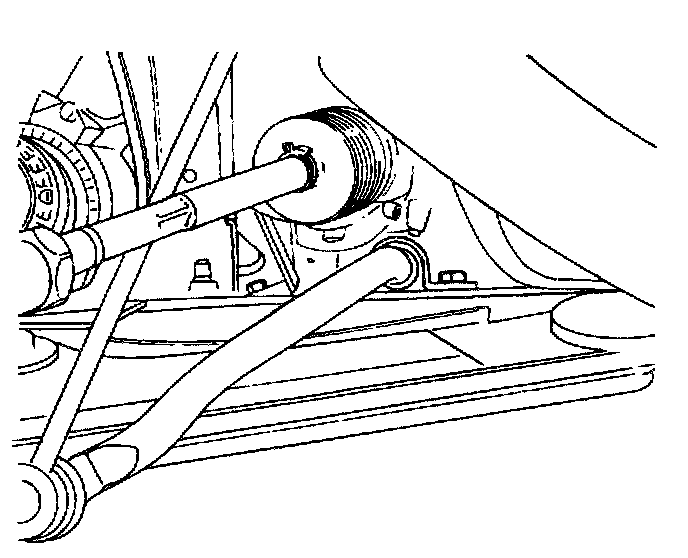

Tighten the stabilizer shaft-to-crossmember clamp bolt to 22 Nm (16 ft. lbs.).
4. Install the front wheels.
