Control Arm Bushing: Service and Repair

CONTROL ARM BUSHINGS
Tools Required
KM- 158 Remover/Installer

Disassembly Procedure
1. Remove the control arm.

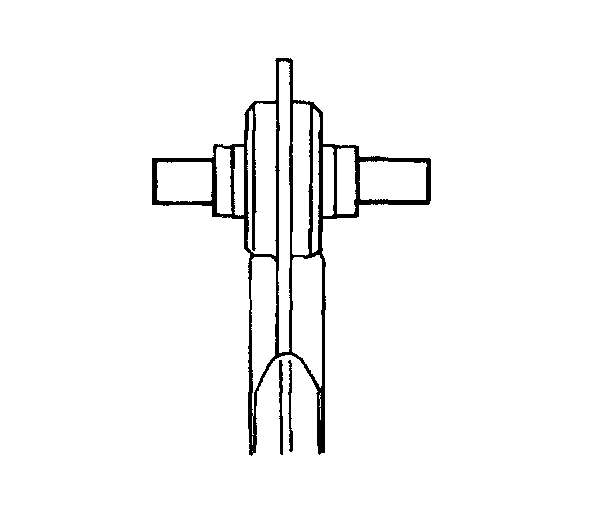

2. Remove the split sleeves from the rear control arm bushing.

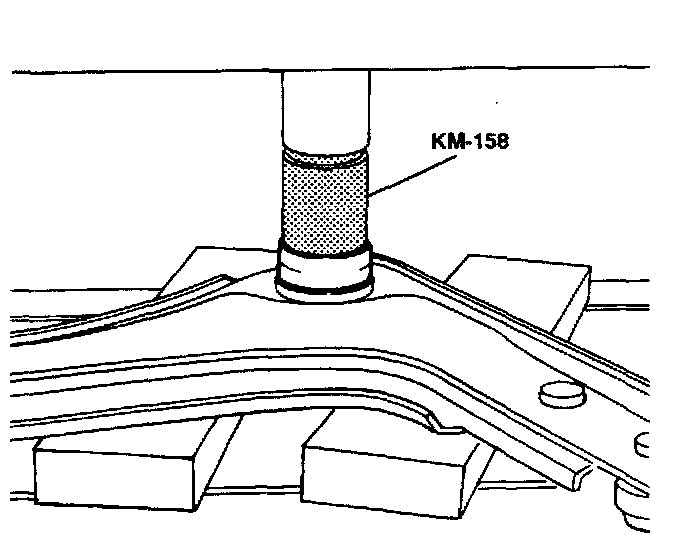

3. Press off the control arm rear damping bushing using a press and the remover/installer KM-158.

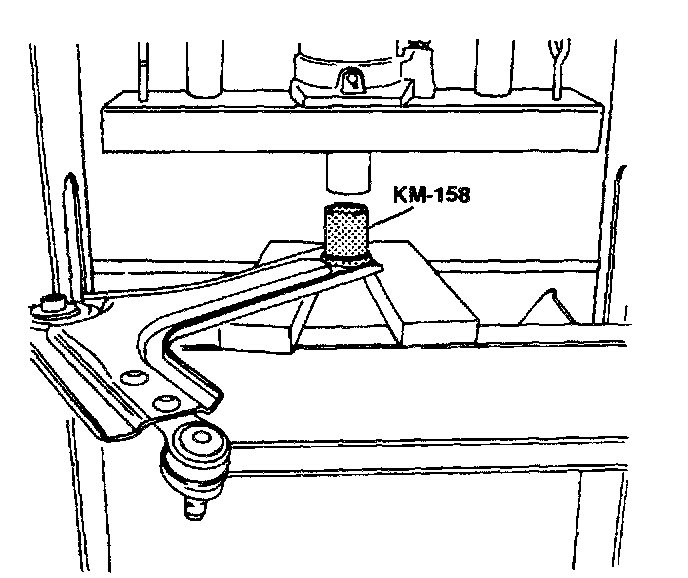

4. Press out the control arm front damping bushing using a press and the remover/installer KM-158.

Assembly Procedure





1. Press the control arm rear damping bushing into the control arm using a press and the remover/installer KM-158.





2. Press the control arm front damping bushing into the control arm using a press and the remover/installer KM-158.

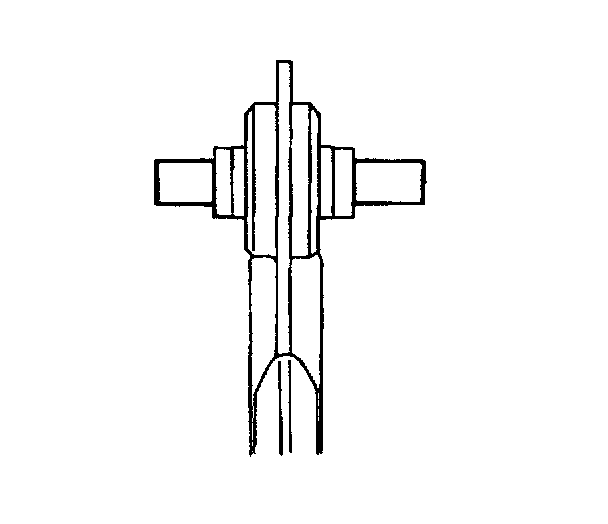

3. Install the split sleeves into the rear control arm bushing.
4. Install the control arm.
