Dust Boot

DUST BOOT
Tools Required
KM-J-2261 0 Installer

Removal Procedure
1. Raise and suitably support the vehicle
2. Remove the wheel.
3. Remove the outer tie rod.

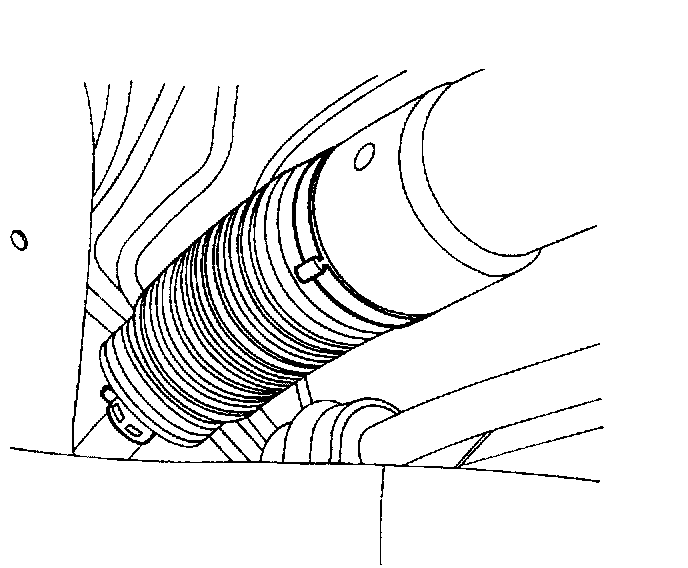

4. Remove the dust boot retaining clamps.

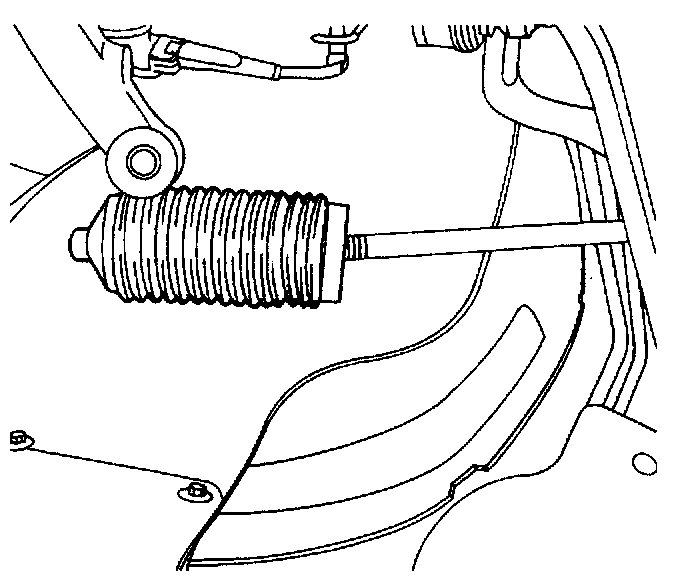

5. Remove the dust boot.

Installation Procedure





1. Install the dust boot.

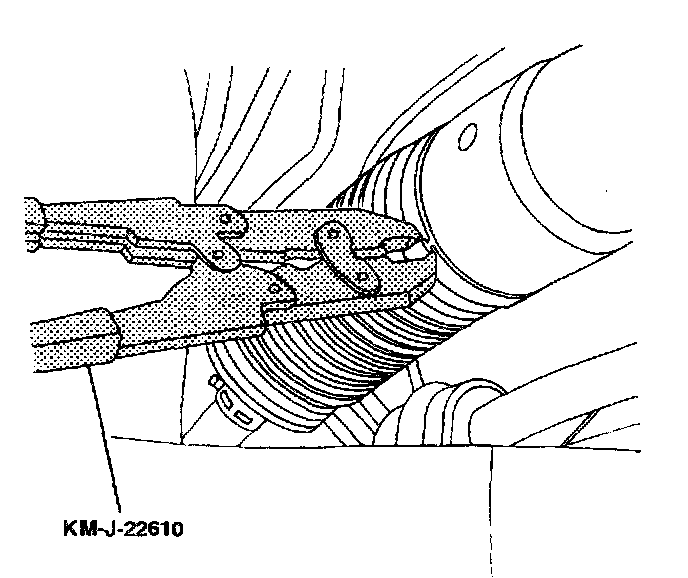

2. Install the tie rod end dust boot retaining clamp. Install the cylinder end dust boot retaining clamp with the installer KM-J-22610.
3. Install the outer tie rod.
4. Install the wheel.
5. Lower the vehicle.
