Power Steering Pump: Testing and Inspection

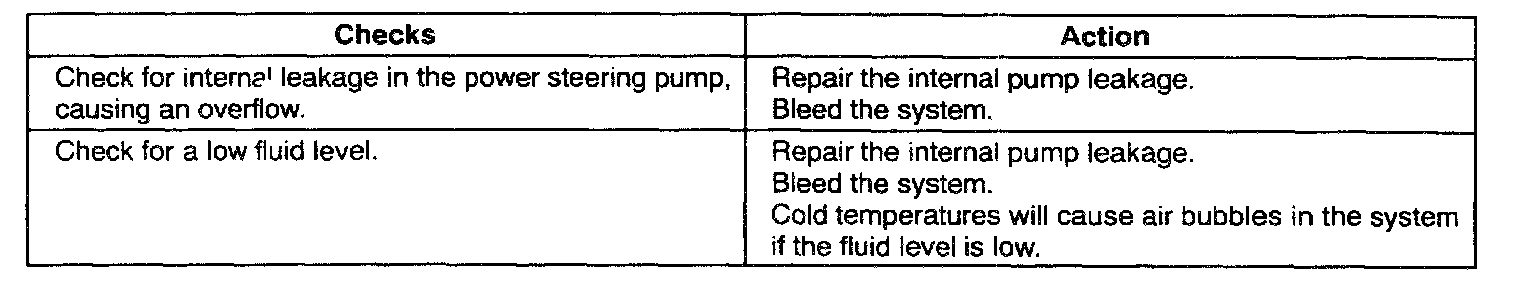

FOAMING OR MILKY POWER STEERING FLUID (AIR IN FLUID)

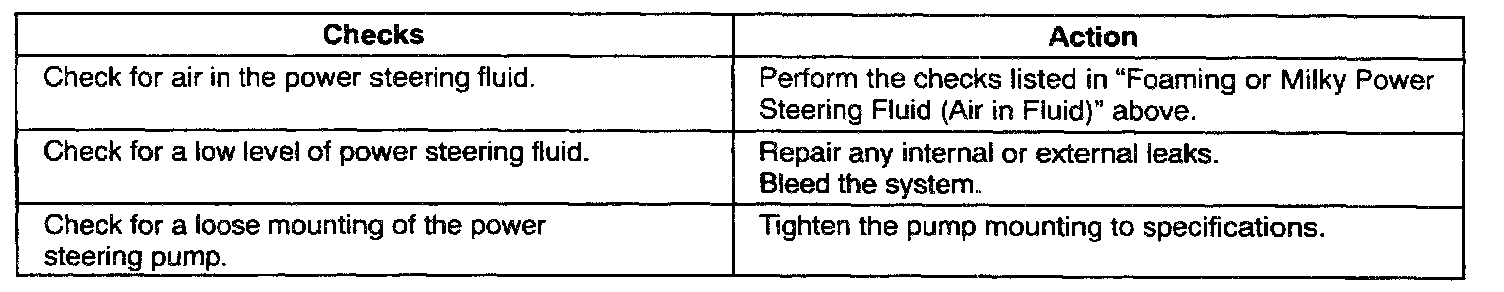

LOW PRESSURE DUE TO POWER STEERING PUMP

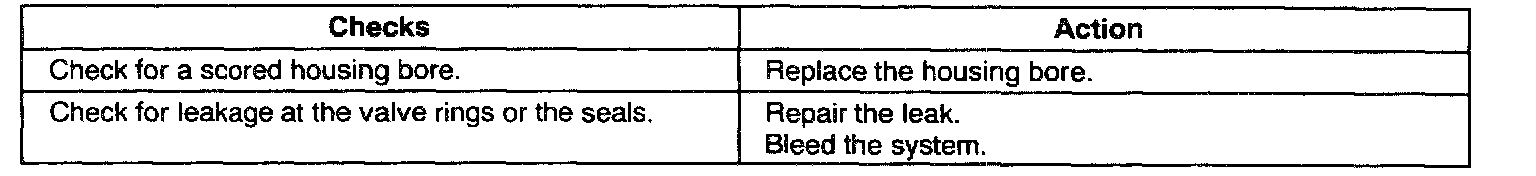

LOW PRESSURE DUE TO POWER STEERING GEAR





GROANING NOISE IN THE POWER STEERING PUMP
