Power Steering Fluid Reservoir: Service and Repair

Removal Procedure

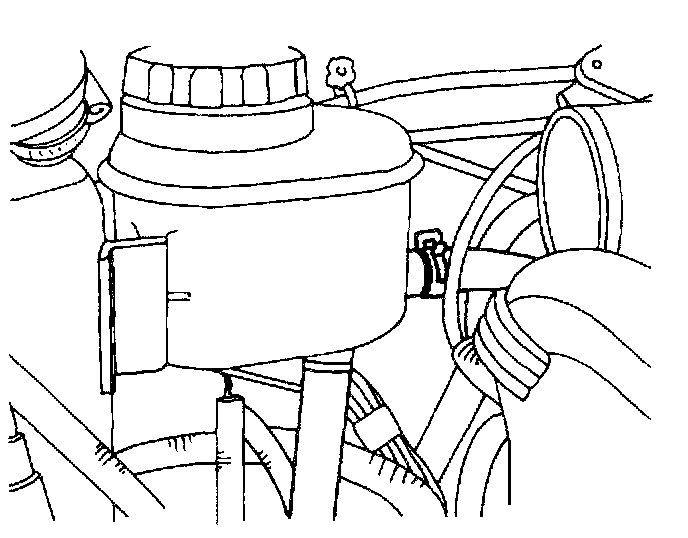

1. Siphon the power steering fluid from the fluid reservoir.

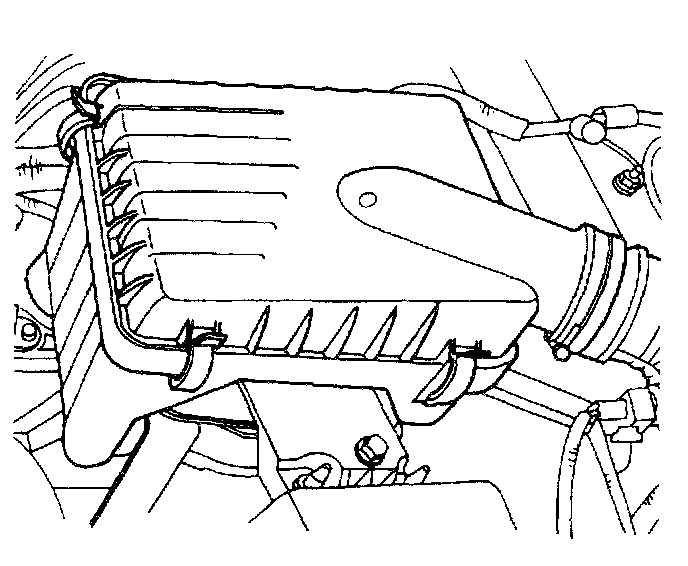

2. Remove the air cleaner housing and the hose.





3. Loosen the hose clamps and remove both hoses from the fluid reservoir.





4. Remove the fluid reservoir by sliding it off the fluid reservoir bracket.

Installation Procedure





1. Attach the fluid reservoir to the fluid reservoir bracket.





2. Connect both hoses to the fluid reservoir and secure the hose clamps.





3. Install the air cleaner housing and the hose.
Tighten
Tighten the air cleaner housing bolts to 12 Nm (106 inch lbs.).

NOTICE: When adding fluid or making a complete change, always use DEXRON-III power steering fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks.

4. Fill the fluid reservoir with power steering fluid.
5. Inspect for leaks. If there are leaks, correct the cause of the leaks and bleed the system. Power Steering Bleeding
