Home >> Daewoo >> 1999 >> Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> System Specifications >> A/T Technical Data

A/T Technical Data

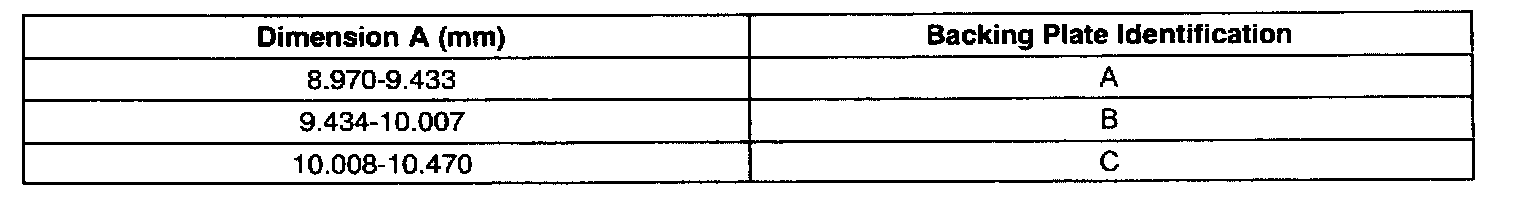

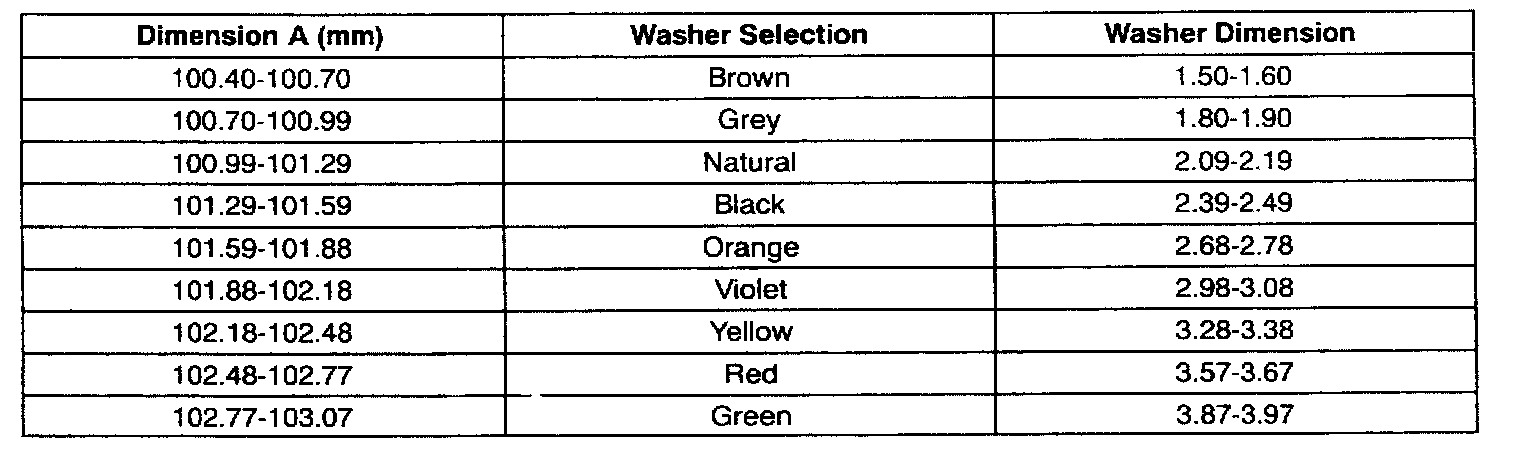

END PLAY SPECIFICATIONS





TRANSAXLE GENERAL SPECIFICATIONS

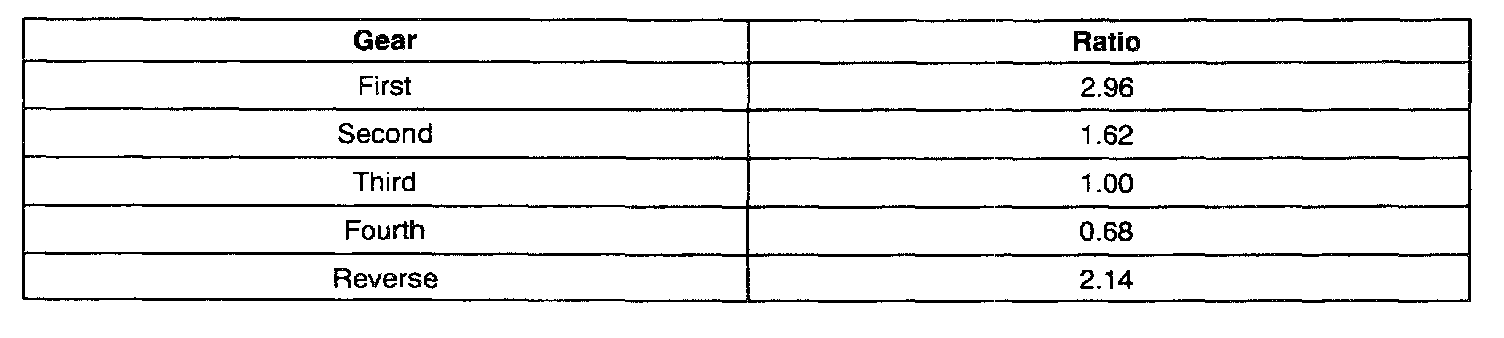

GEAR RATIOS

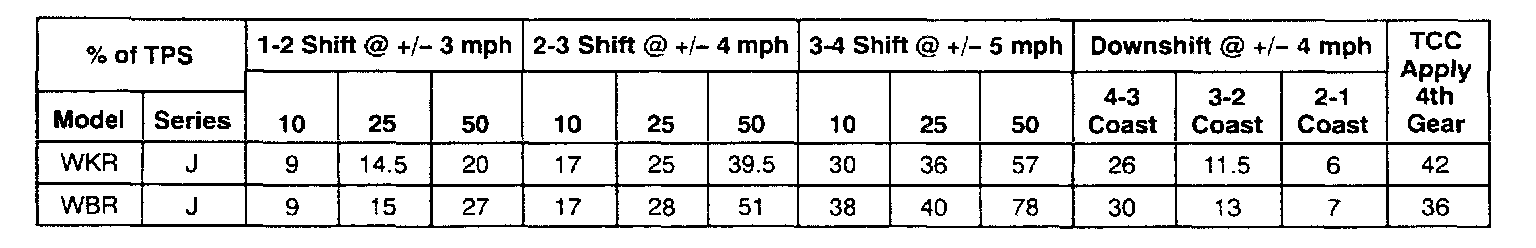

SHIFT SPEED
