Wheel Speed Sensor Jumper Harness
Removal Procedure1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle.

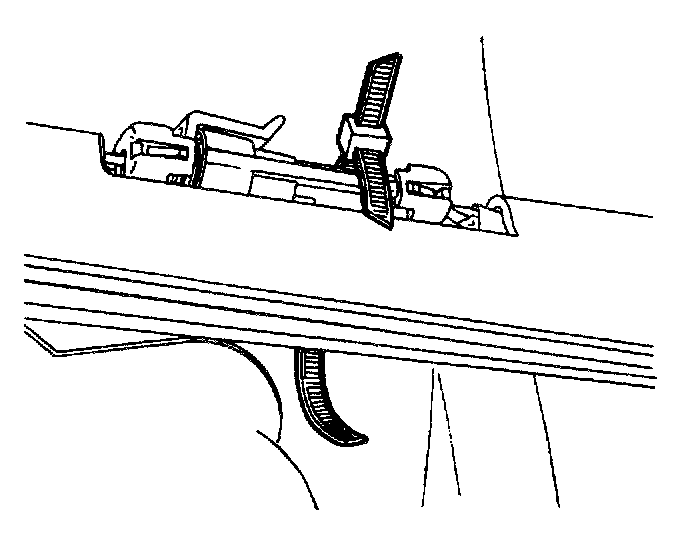

3. Clip the cable ties holding the sensor connectors to the forward suspension arms and remove the harness covers.

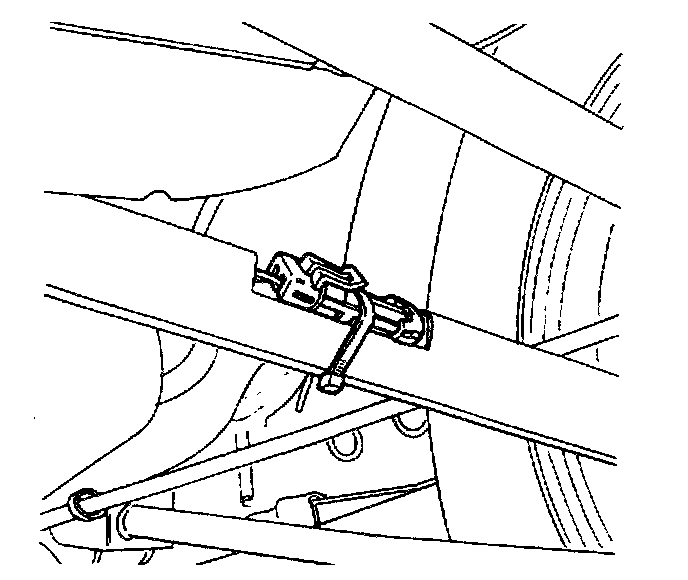

4. Disconnect the rear wheel speed sensor electrical connectors at both wheels.

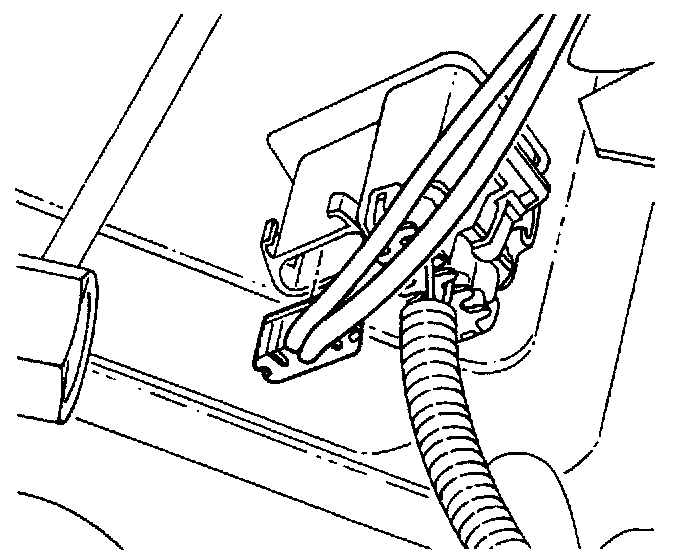

5. Unplug the rear jumper harness from connector C902.
6. Release both branches of the harness from the retainers and remove it from the vehicle.
Installation Procedure

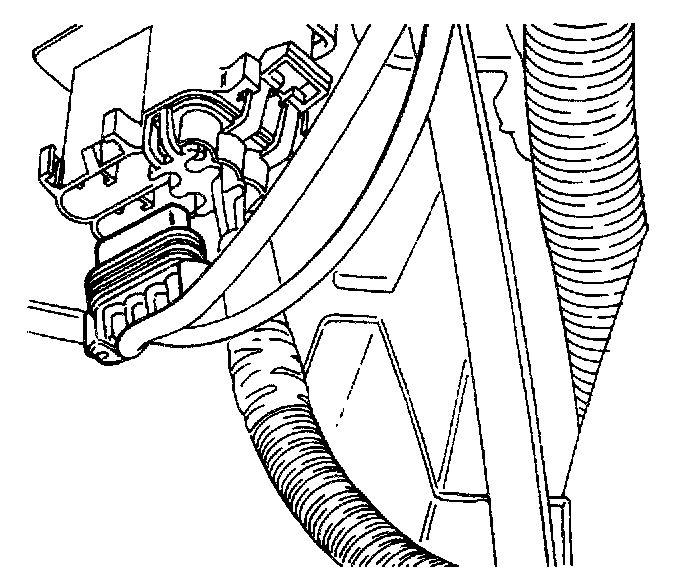

1. Plug the rear jumper harness into connector C902.

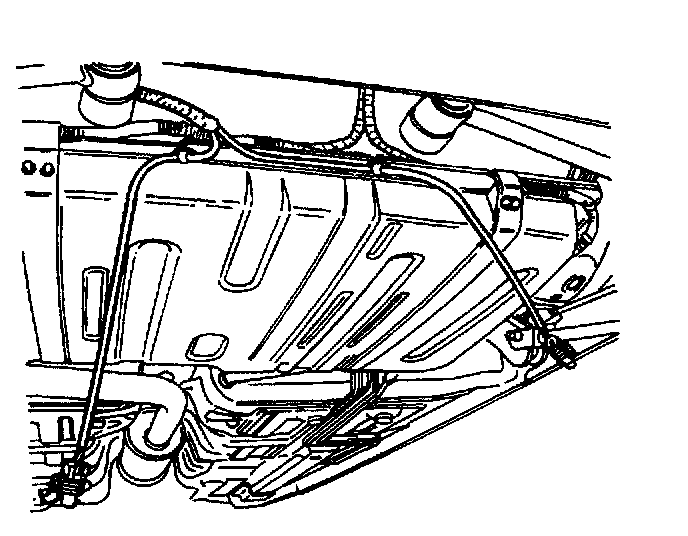

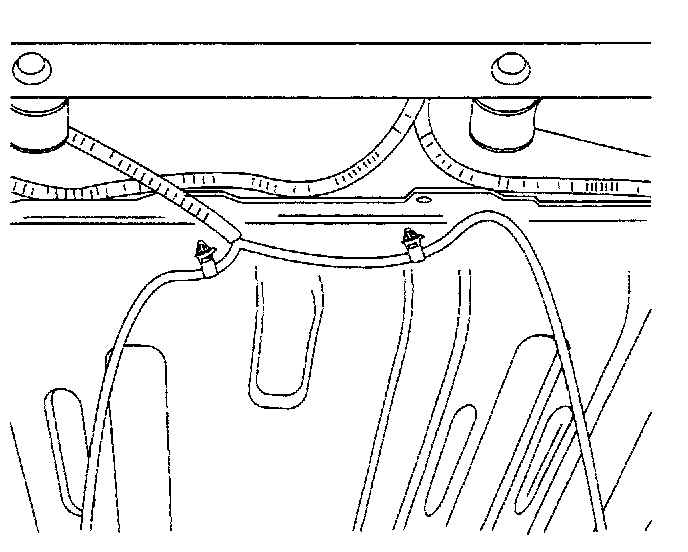

2. Secure the harness with two ties clipped into the holes provided. The longer branch goes to the rightside speed sensor.
3. Connect the new wheel speed sensor harness to both wheel speed sensors.
4. Replace the harness covers over the forward suspension arms.
5. Secure both sides of the harness with new cable ties.
6. Lower the vehicle.
7. Connect the negative battery cable.
