Electrical Diagrams

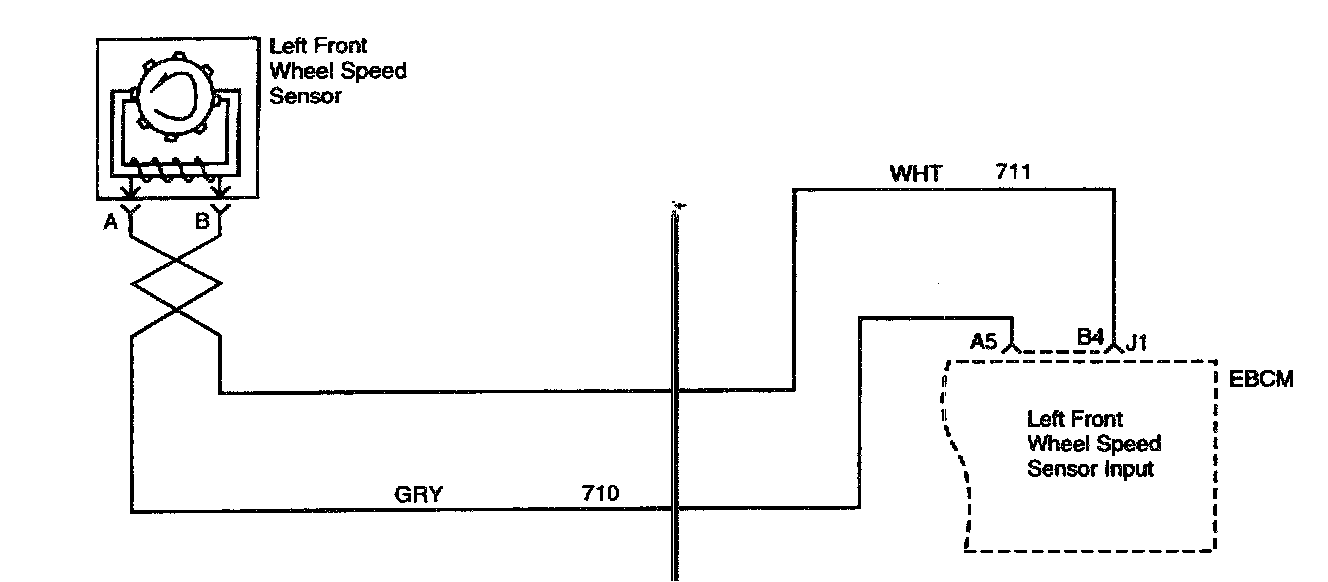

LEFT FRONT WHEEL SPEED SENSOR

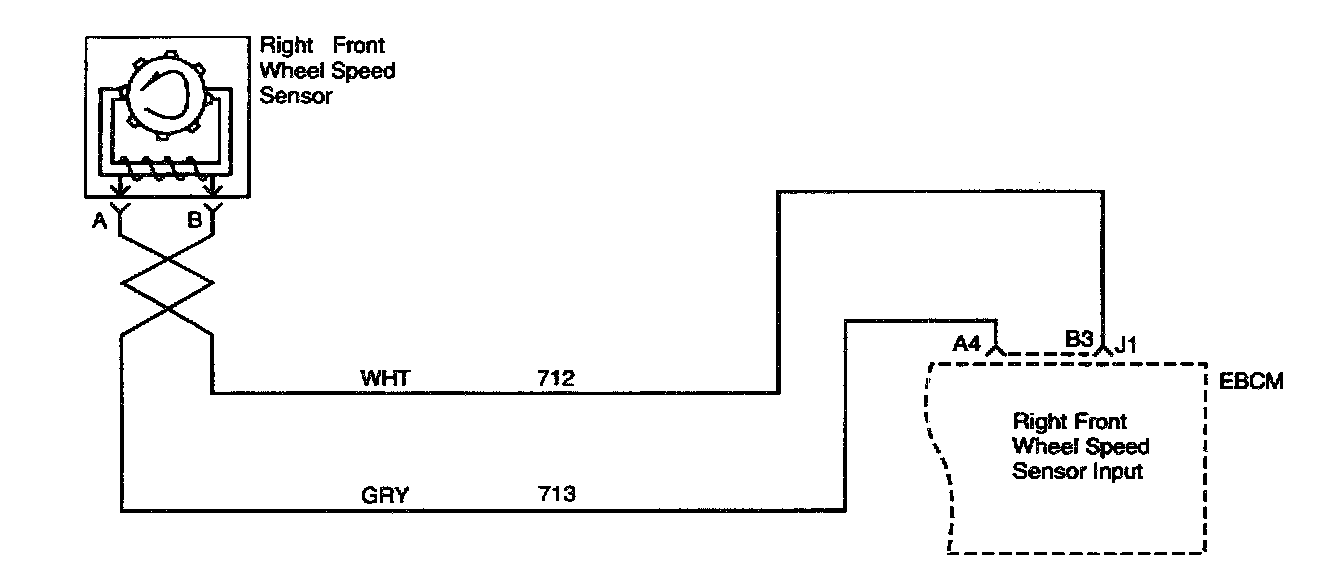

RIGHT FRONT WHEEL SPEED SENSOR

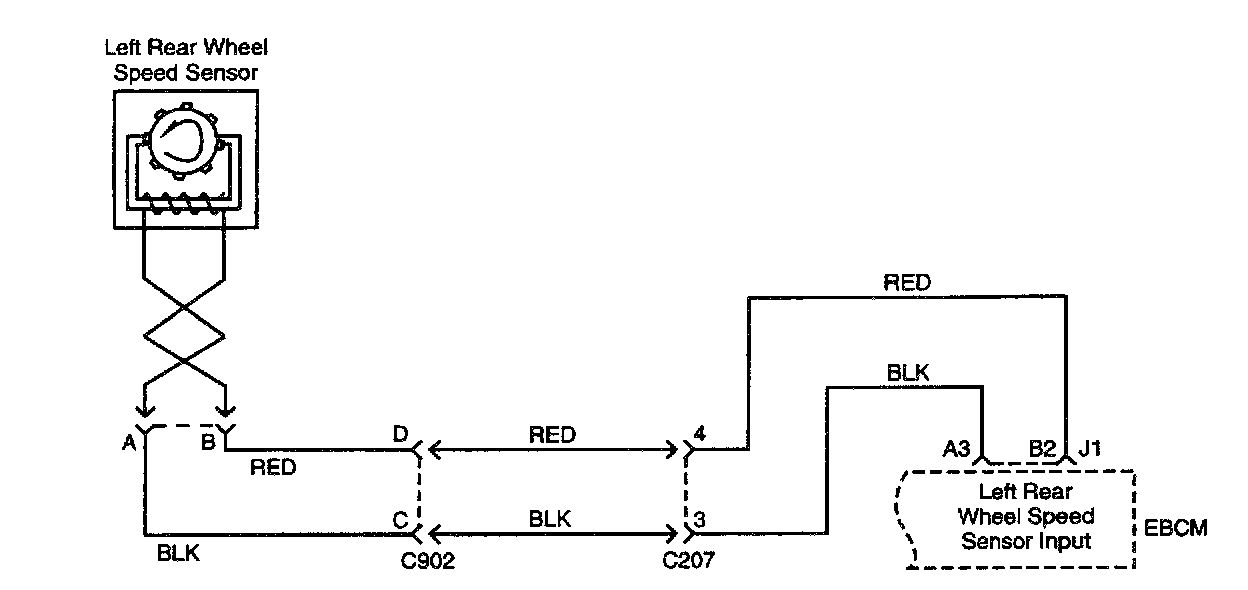

LEFT REAR WHEEL SPEED SENSOR

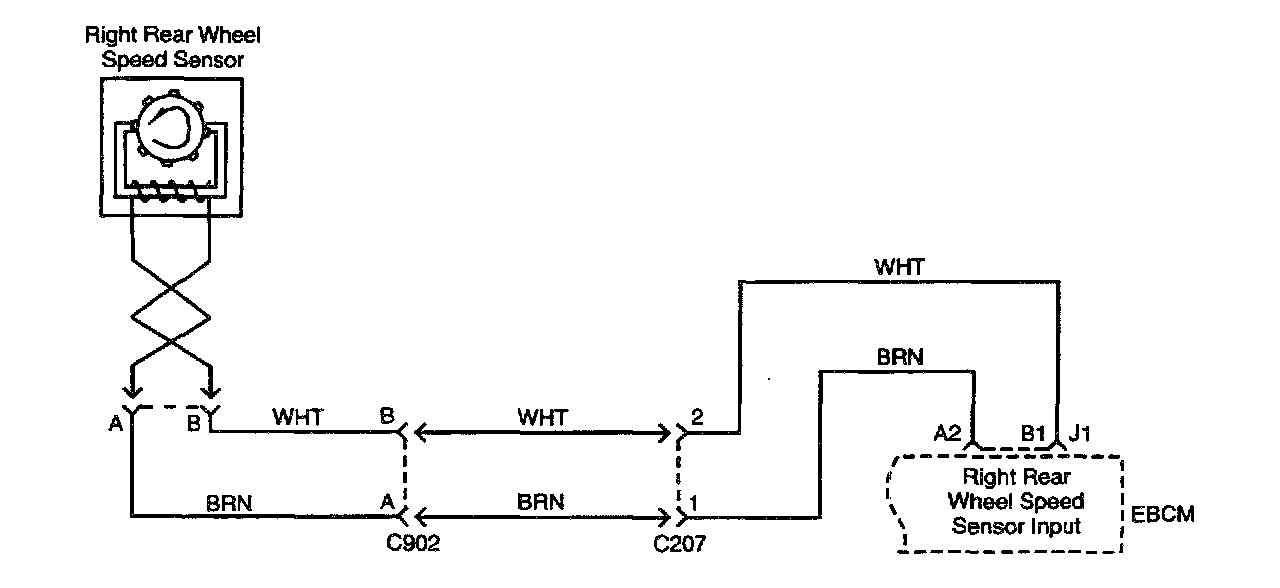

RIGHT REAR WHEEL SPEED SENSOR
