Daytime Running Lamp Control Unit: Service and Repair

Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the HVAC controls.

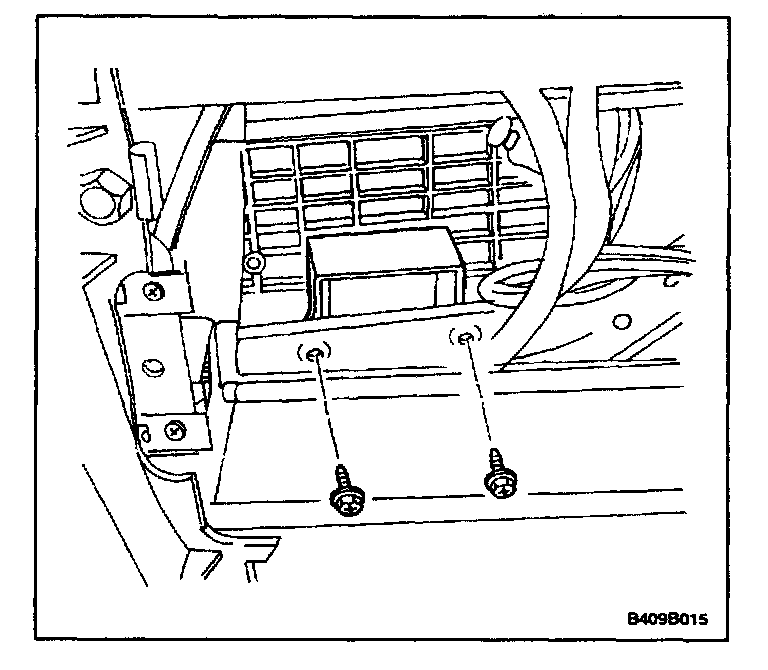

3. Remove the screws and the daytime running lamp module.
4. Disconnect the electrical connector.




Installation Procedure
1. Connect the electrical connector.

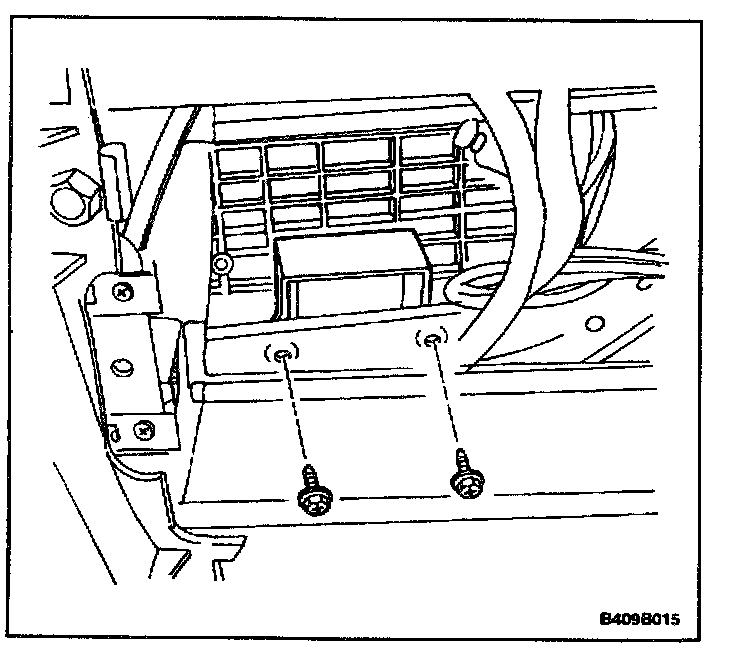

2. Install the daytime running lamp module with the screws

Tighten
Tighten the daytime running lamp module screws to 4 Nm (35 lb.in).

3. Install the HVAC controls.
4. Connect the negative battery cable.
