ABS Light Relay: Service and Repair

LAMP DRIVER MODULE

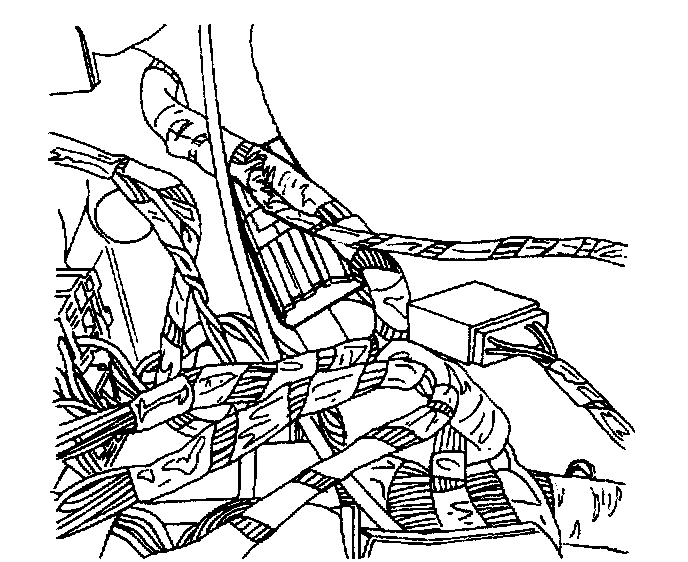

The lamp driver module is taped to the ABS wiring harness near the electronic brake control module (EBCM), above the left-side kick panel.

Removal Procedure
1. Disconnect the negative battery Gable.
2. Move the wiring harness to allow access to the lamp driver module.

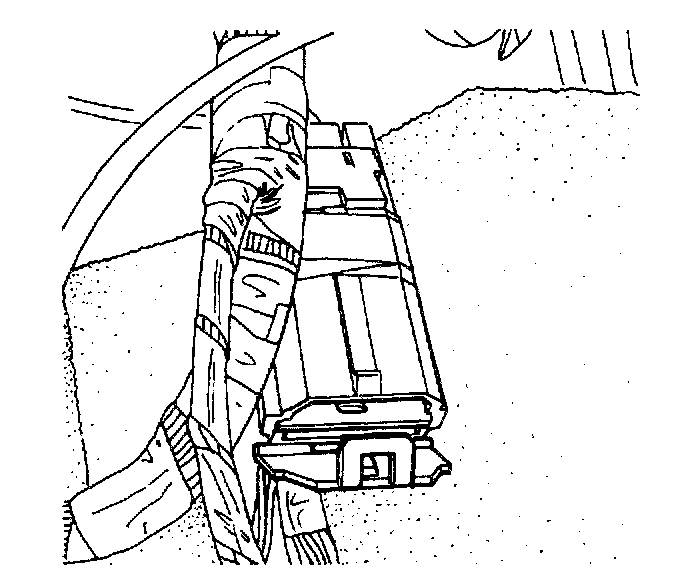

3. Open the lamp driver module cover.





4. Remove the module from the housing. Inserting the blade of a screwdriver into the slot near the end of the card and using the screwdriver as a lever to free the card from its connector inside the housing may be needed.

Installation Procedure





1. Install the lamp driver module into the housing. Press the card into the connector inside the module, and close the cover. Be sure to put the card in the same way as it was removed. There is a slot that serves as a keyway to allow entry one way only. Look into the housing to locate the slot.
2. Close the cover on the end of the lamp driver module housing.
3. Connect the negative battery cable.
