Removal and Installation

The electronic brake control module (EBCM) is located behind the kick panel, on the left side of the car. It is inside a plastic holding fixture with a hinged door on the bottom. That door has a latch that passes through a loop in the bottom of the side piece of the holding fixture.

Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the left-side kick panel.

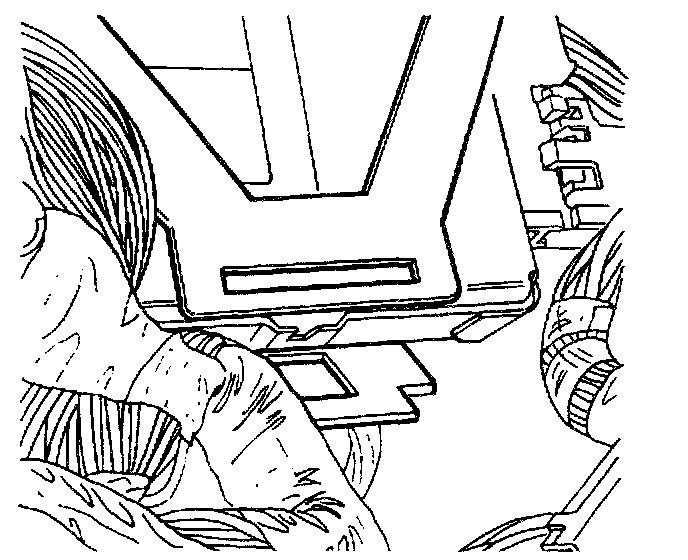

3. Raise the retainer latch, pull back the holder, drop the retainer, and slide the EBCM down from its holding fixture.

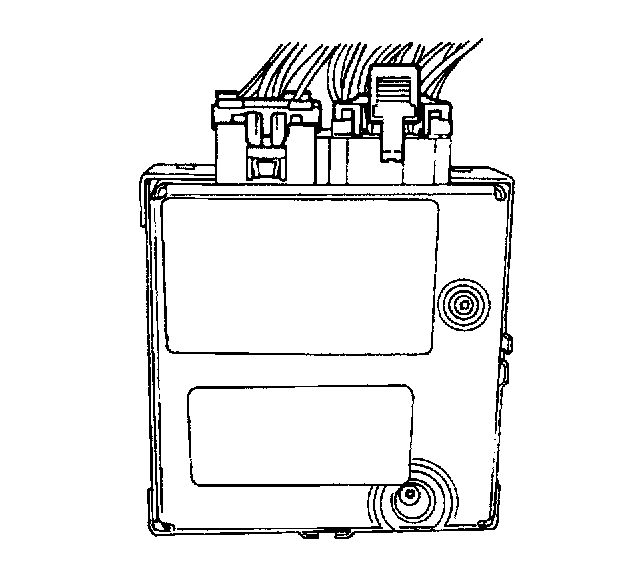

4. Disconnect the EBCM electrical connectors and remove the EBCM from the vehicle.

Installation Procedure





1. Connect the EBCM to the ABS wiring harness, connecting the two electrical connectors.

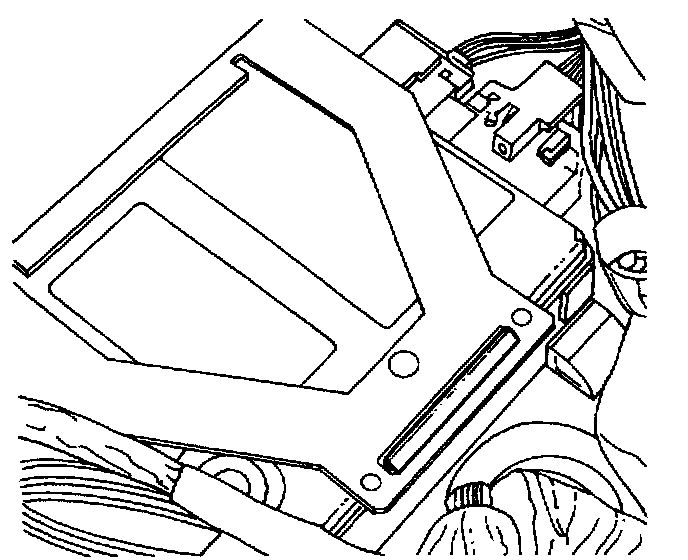

2. Slide the EBCM into the holding fixture.
3. Raise the door at the bottom and push the side over the latch until it is secure.
4. Install the left-side kick panel.
5. Connect the negative battery cable.
