Ignition Coil: Service and Repair

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

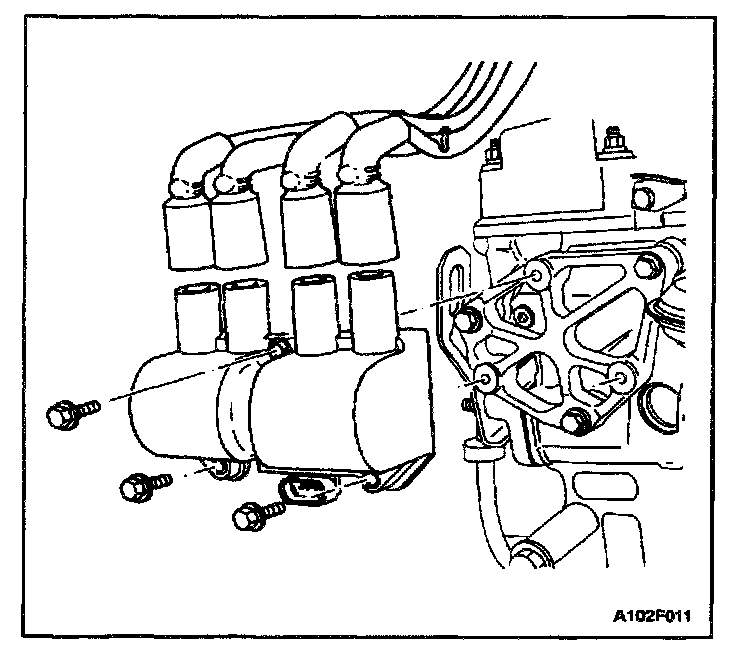

2. Disconnect the electronic (EI) system ignition coil connector.
3. Note the ignition wire location and remove the ignition wires.
4. Remove the EI system ignition coil retaining bolts.
5. Remove the EI system ignition coil.

INSTALLATION PROCEDURE




1. Install the EI system ignition coil into the mounting location and install the retaining bolts.

Tighten
Tighten the electronic ignition system ignition coil retaining bolts to 10 Nm (89 lb-in).

2. Connect the EI system ignition coil connector.
3. Install the ignition wires.
4. Connect the negative battery cable.
