Evaporative Emission Control Canister: Service and Repair

REMOVAL PROCEDURE

CAUTION: Canister and vacuum hoses contain fuel vapors. Do not smoke in the area or permit an open flame.




1. Remove the evaporative (EVAP) emission canister protective cover.

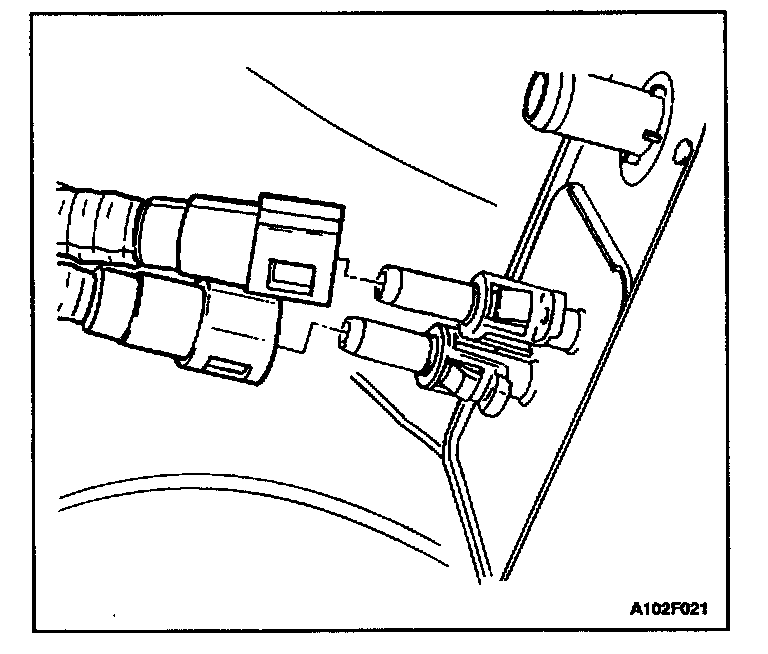

2. Disconnect the canister fuel vapor hoses.

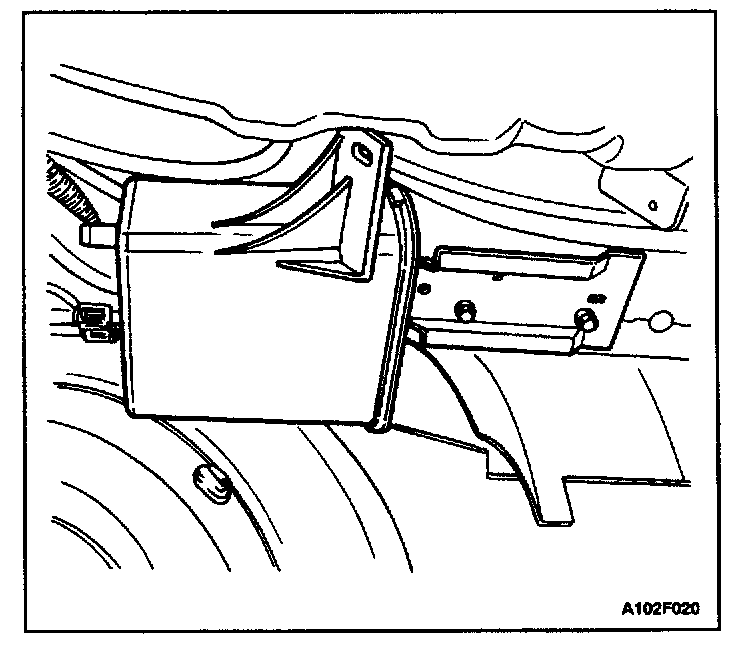

3. Remove the bolt that secures the canister flange to the vehicle.
4. Slide canister out of the track holder.
5. Remove the canister.

INSTALLATION PROCEDURE




1. Insert the canister into the track and slide it into position.
2. Install the canister flange bolt.

Tighten
Tighten the evaporative emission canister flange bolt to 20 Nm (15 lb-ft).

3. Connect the canister fuel vapor hoses.
4. Install the canister protective cover.

Tighten
Tighten the evaporative emission canister protective cover to 8 Nm (71 lb-in).
