Scan Tool Testing and Procedures

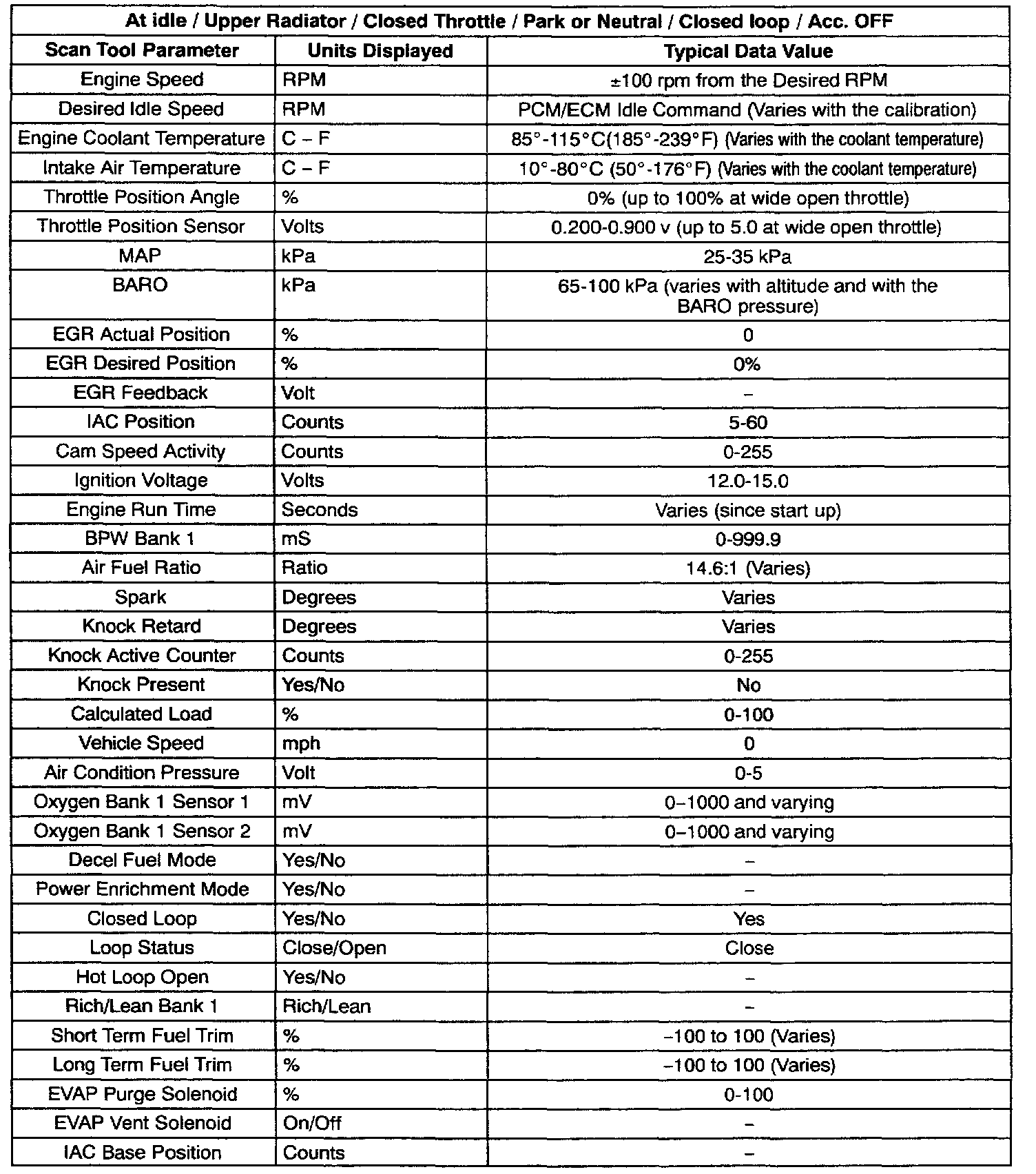

Engine Data Display (Part 1 Of 2):

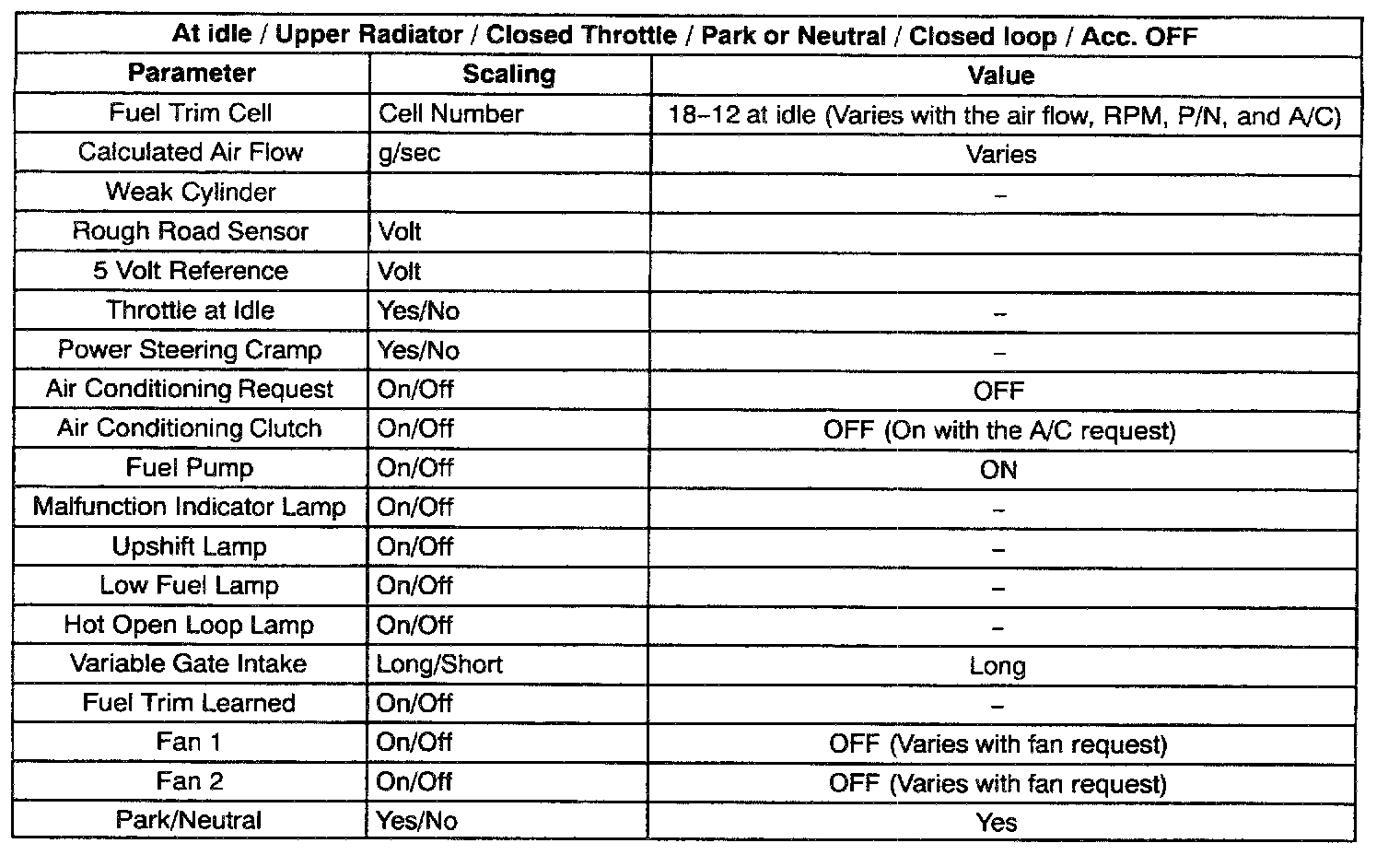

Engine Data Display (Part 2 Of 2):

Engine Data Display

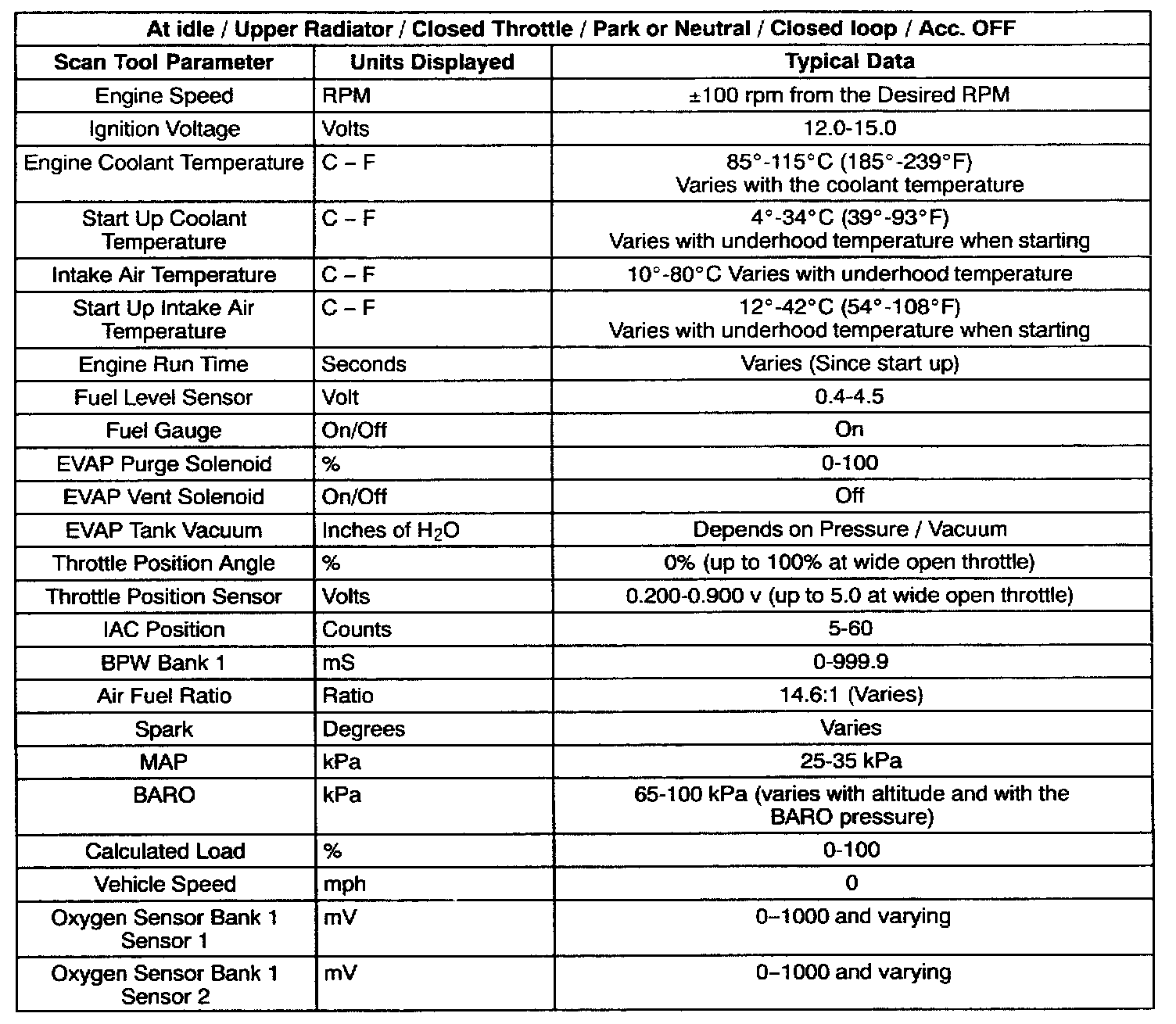

EVAP Data Display:

EVAP Data Display

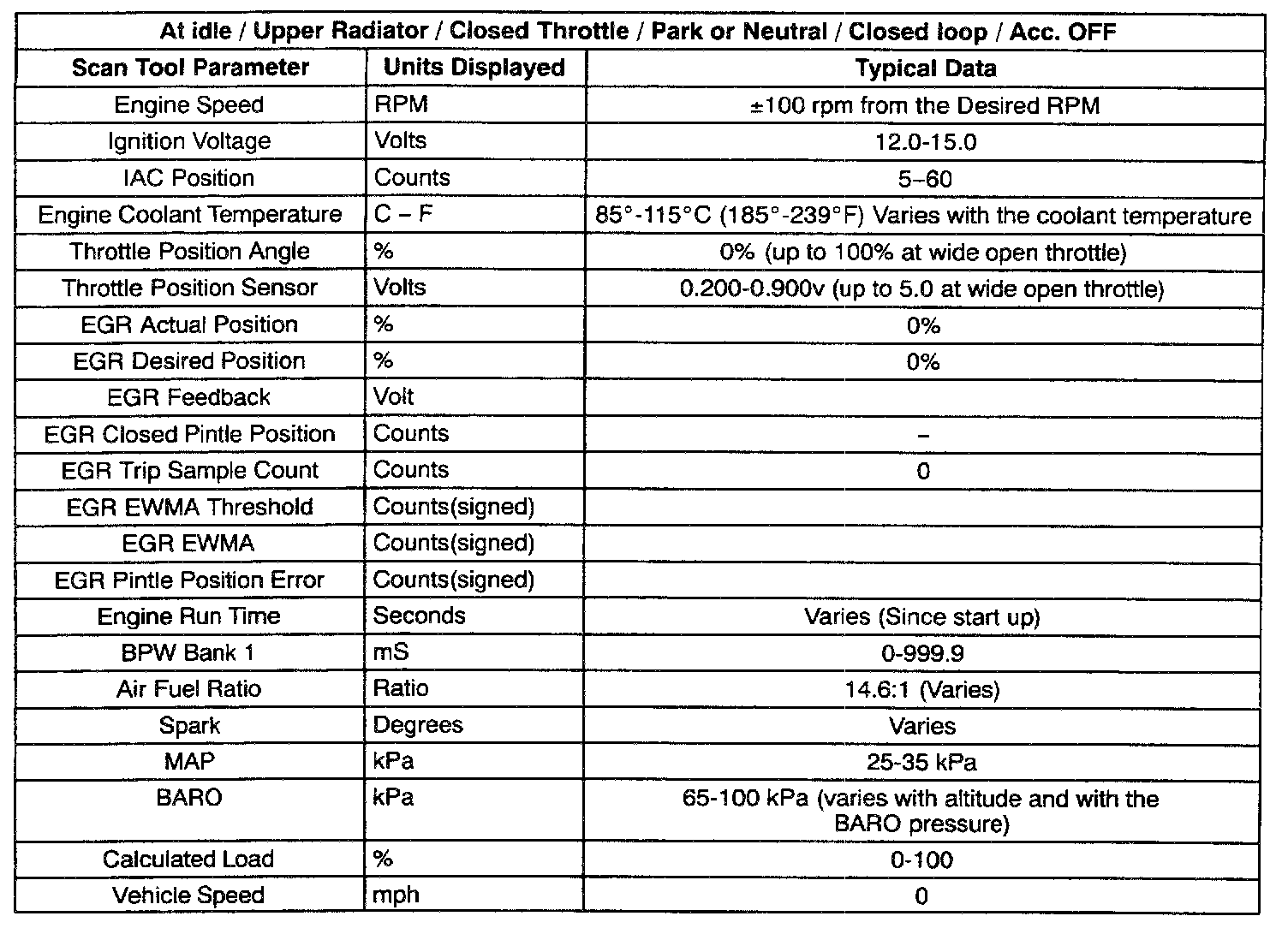

EGR Data Display:

EGR Data Display

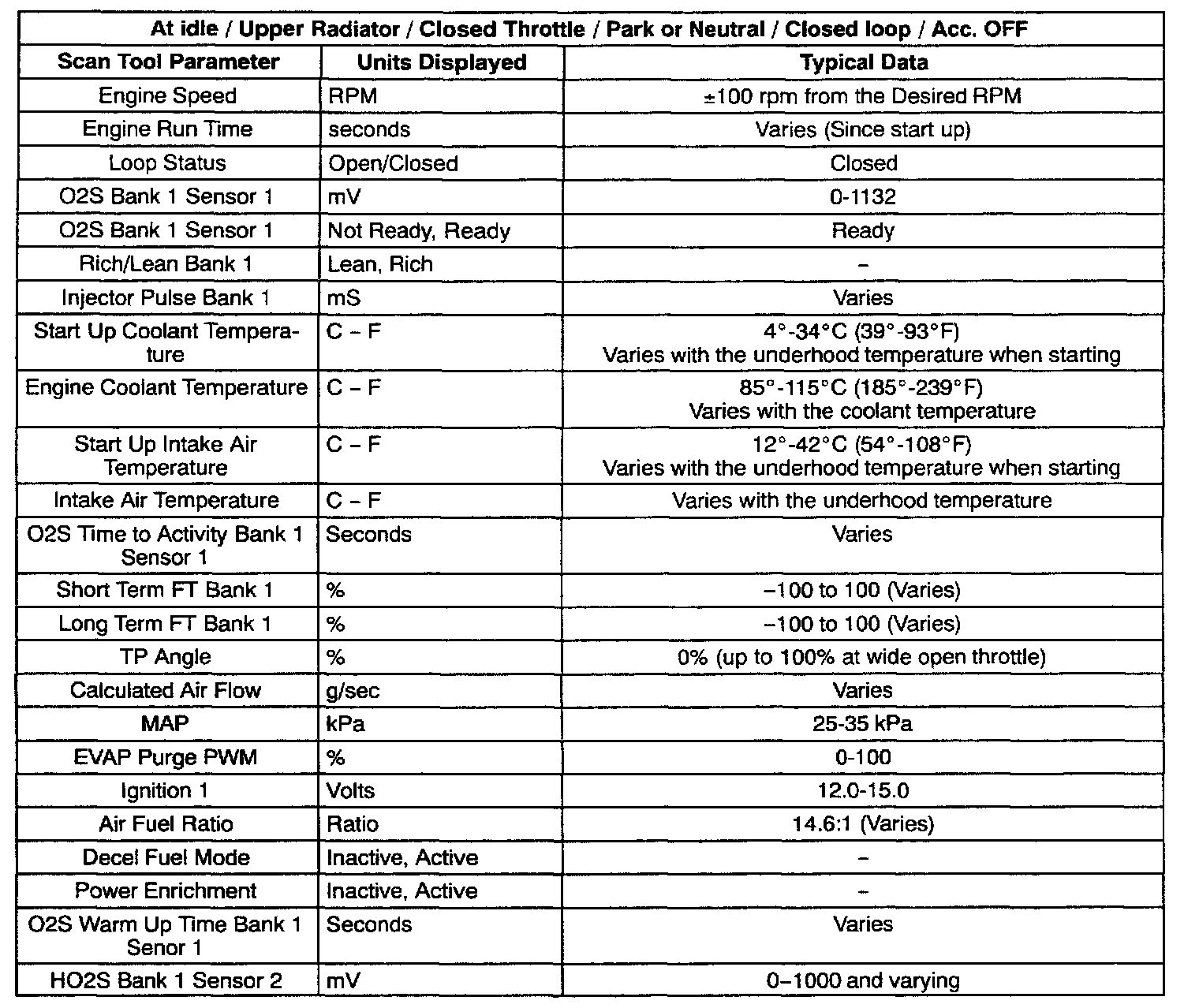

Oxygen Sensor Data Display:

Oxygen Sensor Data Display

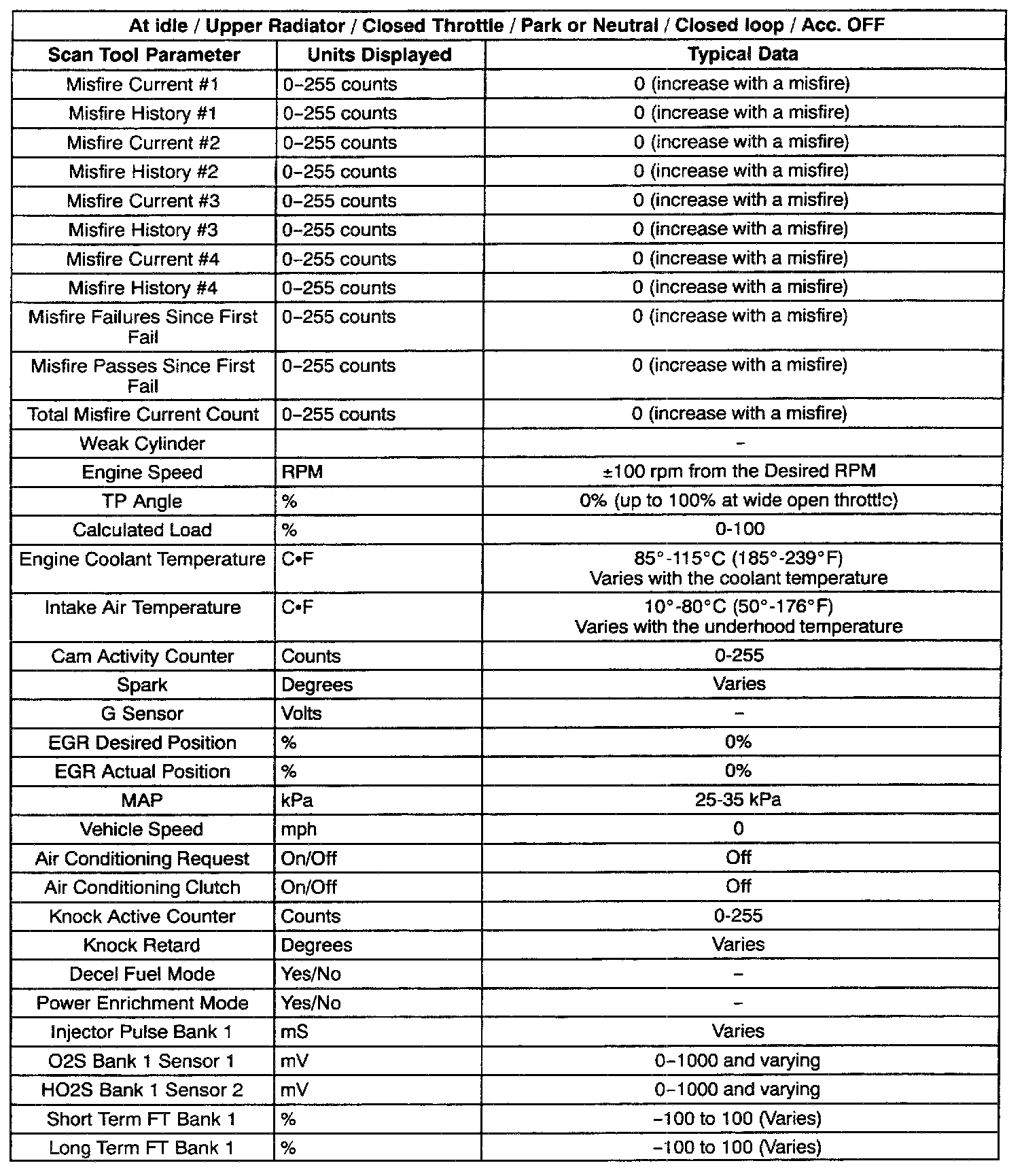

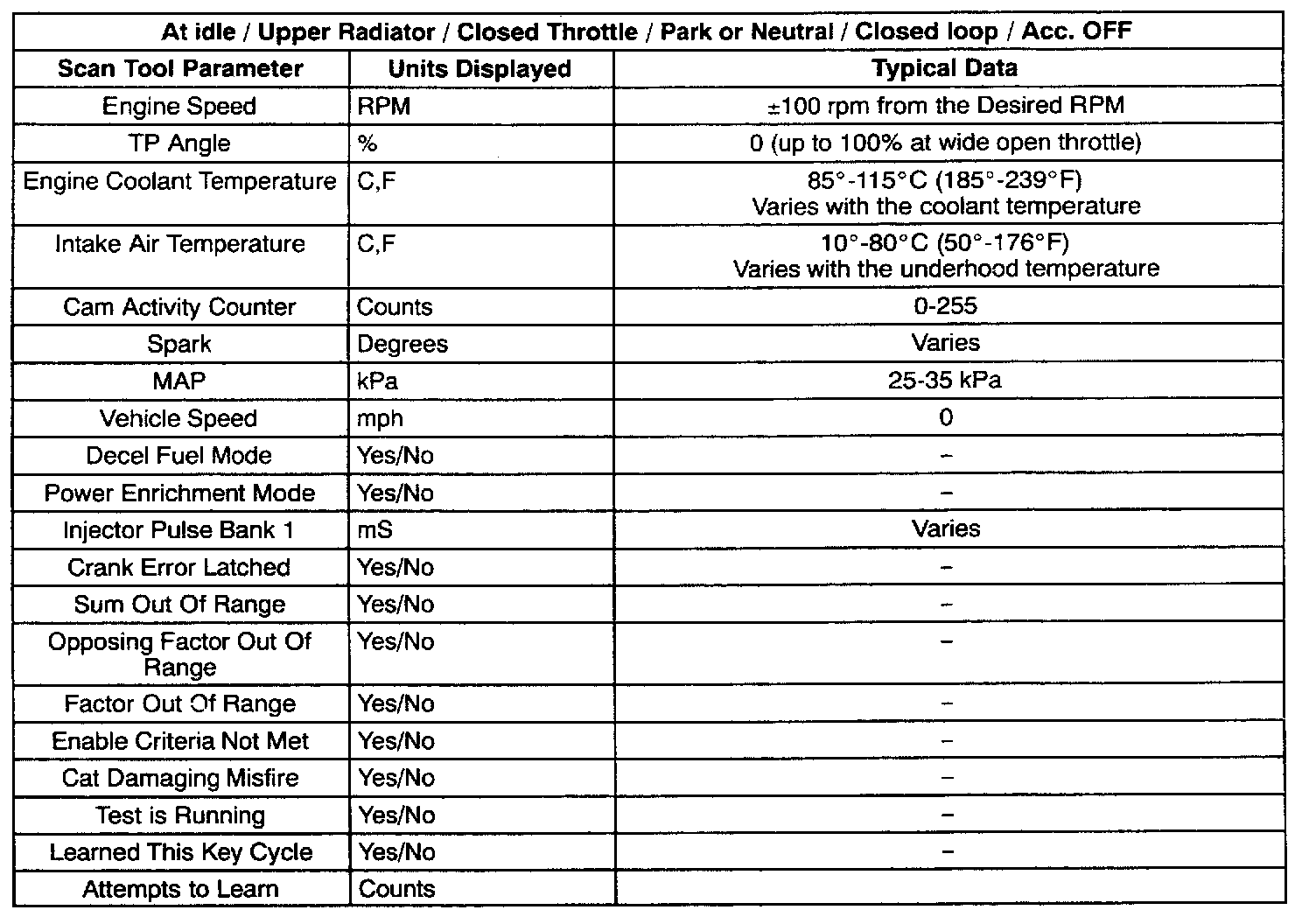

Misfire Data Display:

Misfire Data Display

TEC Display Table:

TEC Display Table
