Power Steering Fluid Reservoir Hose

Removal Procedure
1. Siphon the power steering fluid from the fluid reservoir.

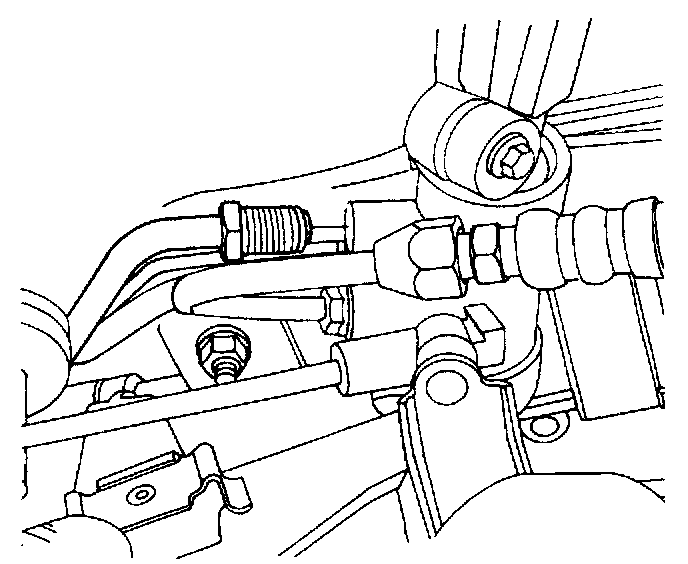

2. Disconnect the supply line outlet pipe from the outlet connection at the steering gear.

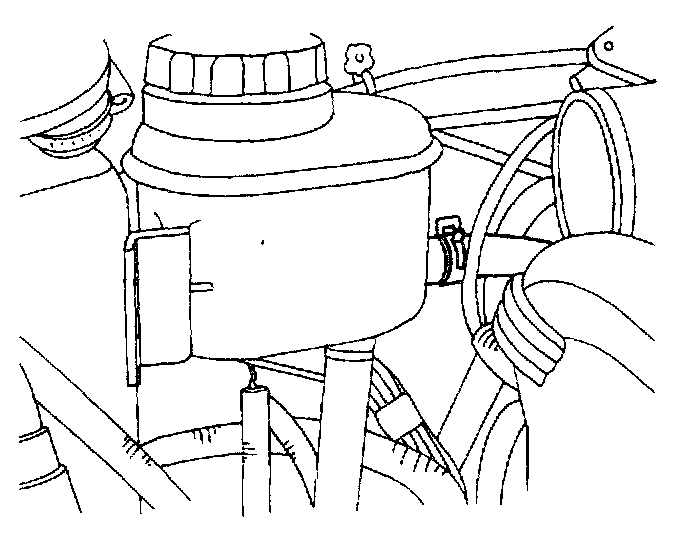

3. Disconnect the fluid reservoir hose from the fluid reservoir.
4. Remove the power steering fluid reservoir hose.

Installation Procedure





1. Install the power steering fluid reservoir hose.
2. Connect the fluid reservoir hose to the fluid reservoir.





3. Connect the supply line outlet pipe to the outlet connection at the steering gear.
Tighten
Tighten the steering gear outlet pipe fitting to 27 Nm (20 ft. lbs.).

NOTICE: When adding fluid or making a complete change, always use DEXRON III power steering fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks.

4. Fill the fluid reservoir with power steering fluid.
5. Inspect for leaks. If there are leaks, correct the cause of the leaks and bleed the system. Power Steering Bleeding
