Headlamps

Steps 1 Thru 11:

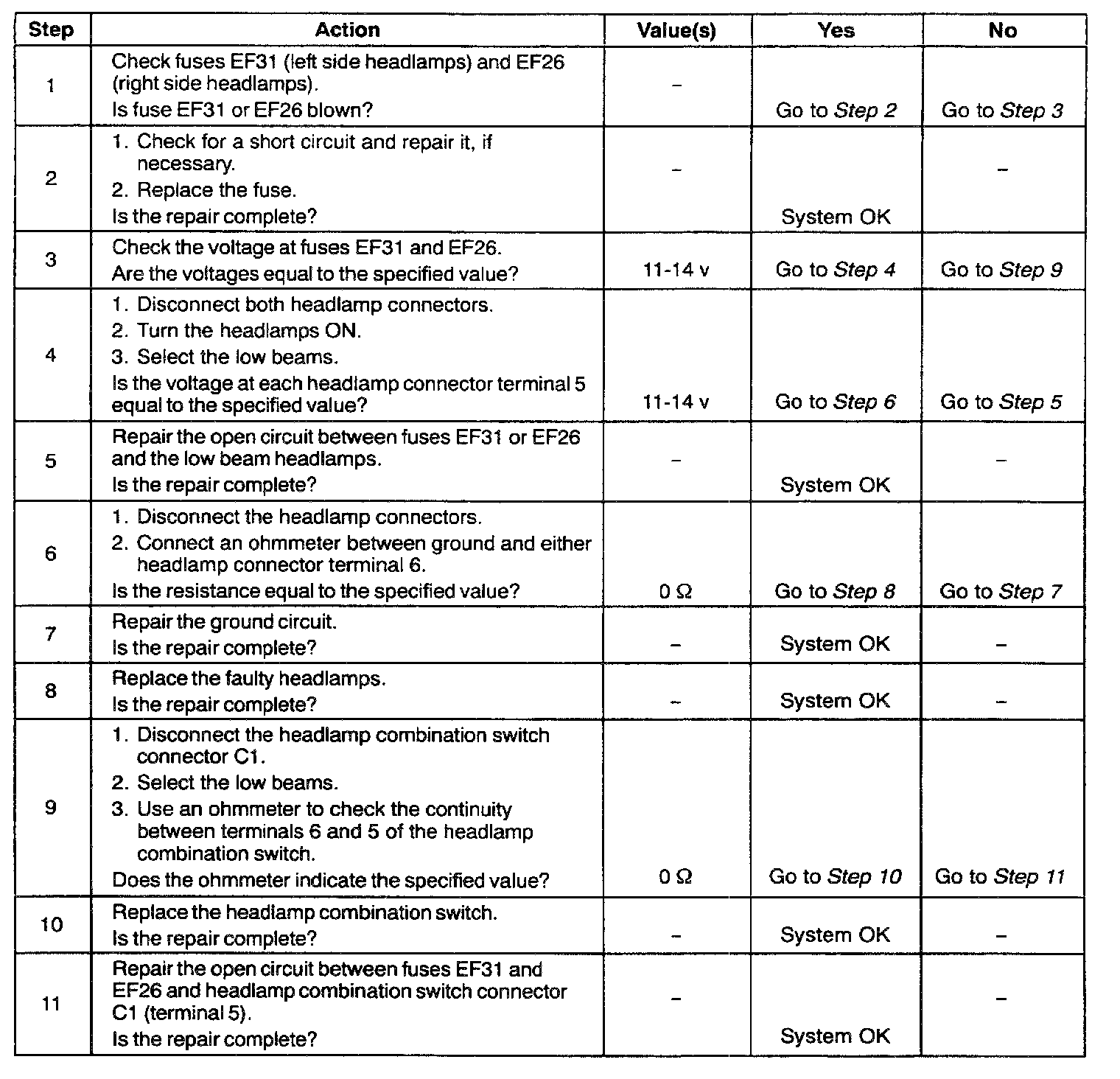

Low-Beam Headlamps Are Inoperative, High-Beam Headlamps Are OK

Steps 1 Thru 10:

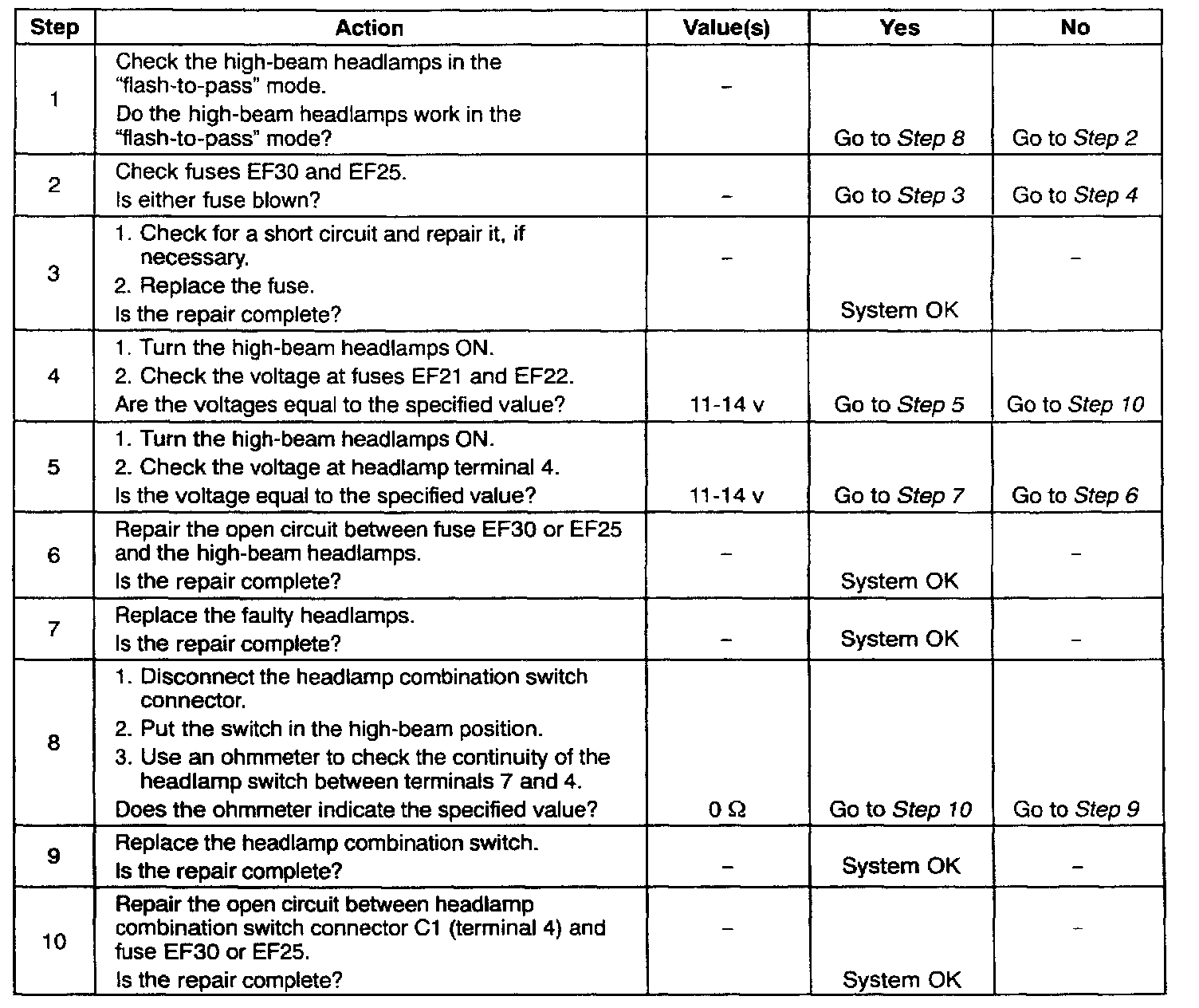

High-Beam Headlamps Are Inoperative, Low-Beam Headlamps Are OK

Steps 1 Thru 13:

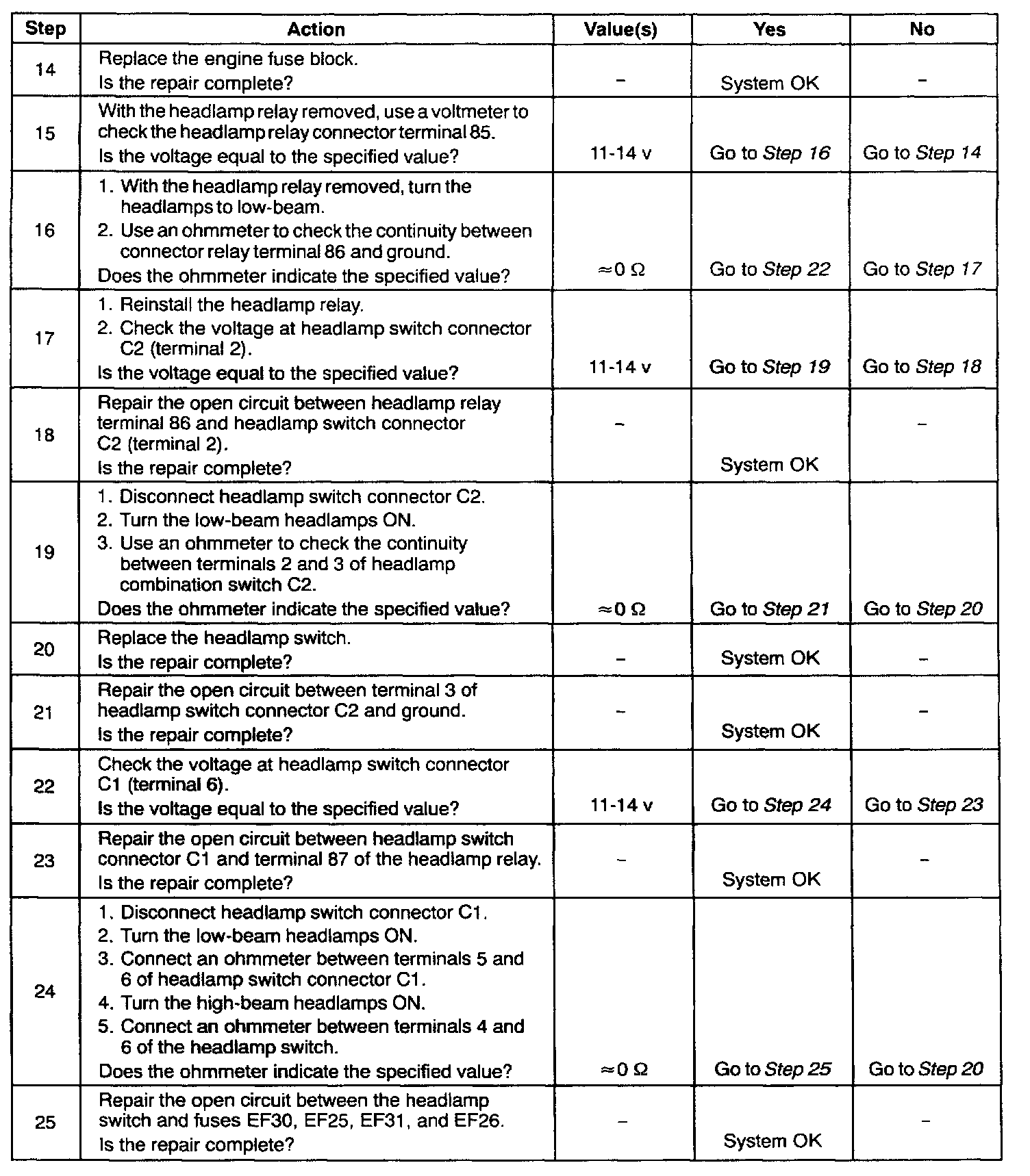

Steps 14 Thru 25:

High-Beam and Low-Beam Headlamps Are Inoperative On Both Left and Right Sides

Diagnostic Aids
The daytime running lamp (DRL) system will not work if the parking brake is applied. The system is designed to work only when the engine is running and the parking brake is released. If the parking brake circuit is shorted to ground or the switch stays closed when the engine is running, the DRL system will not work.

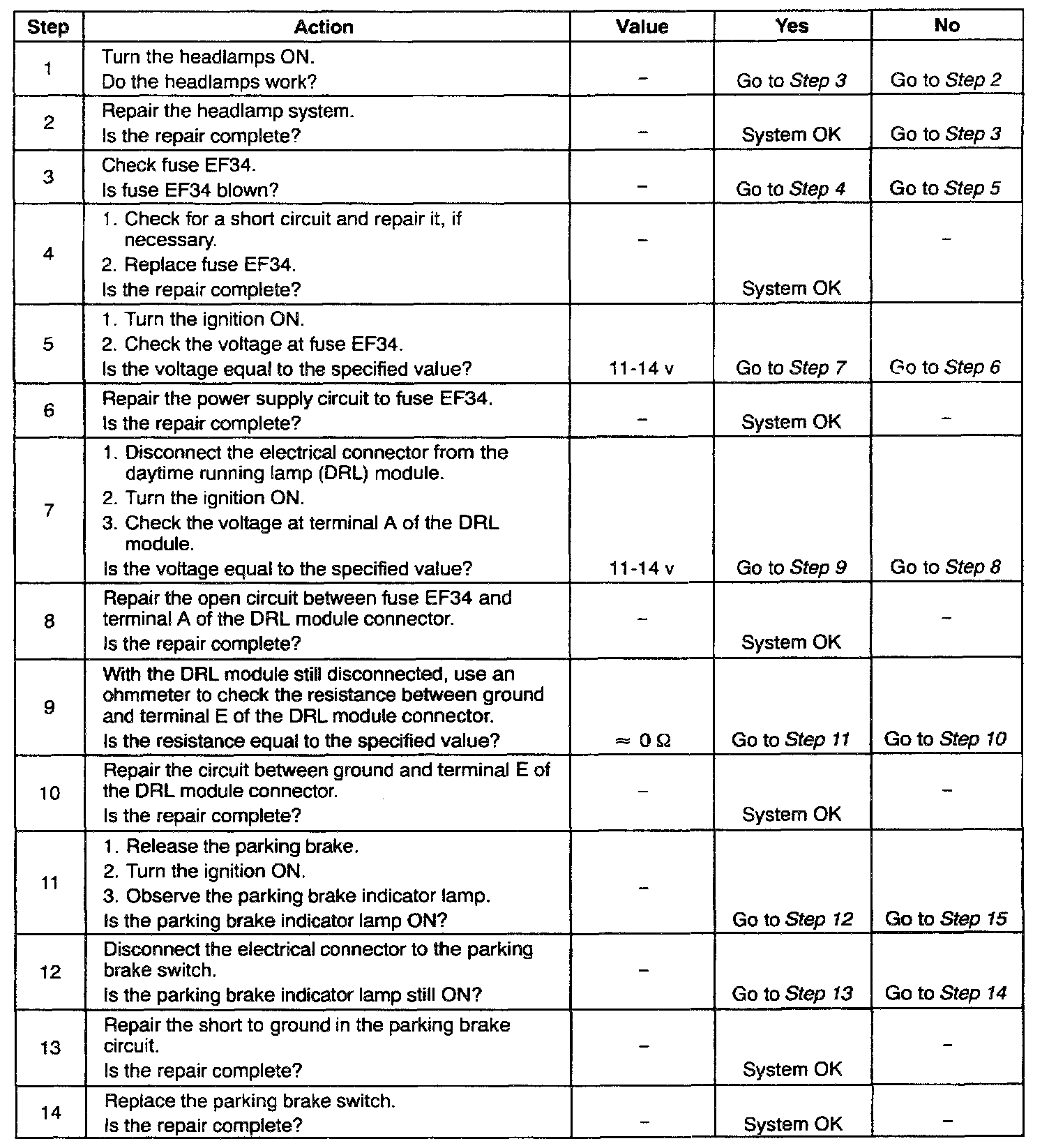

Steps 1 Thru 14:

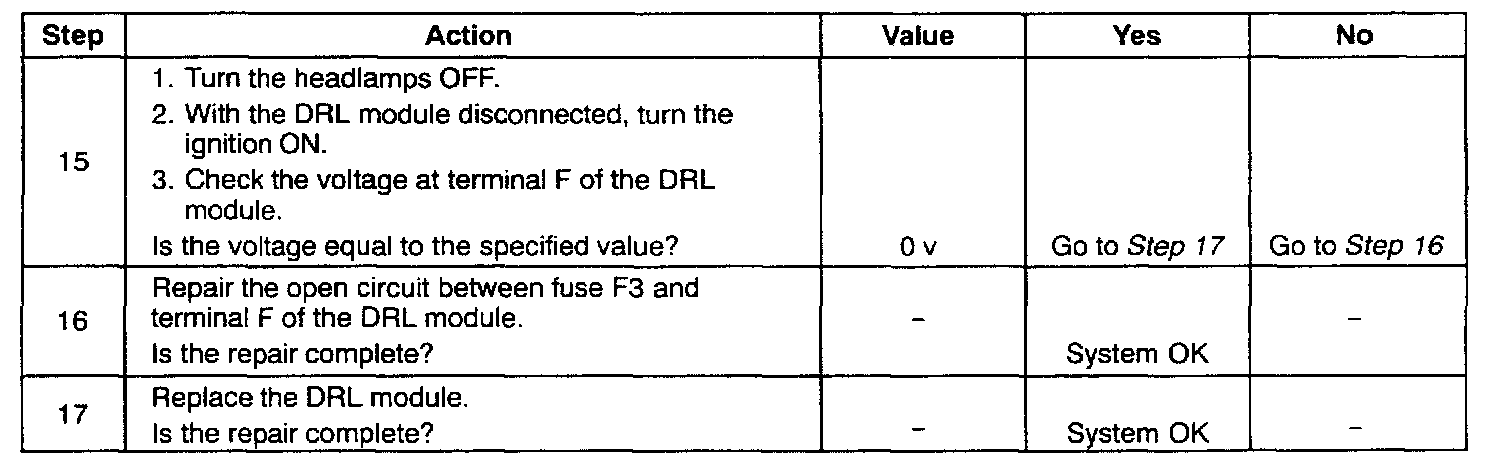

Steps 15 Thru 17:

Daytime Running Lamps Do Not Turn ON
