Headlamp: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.

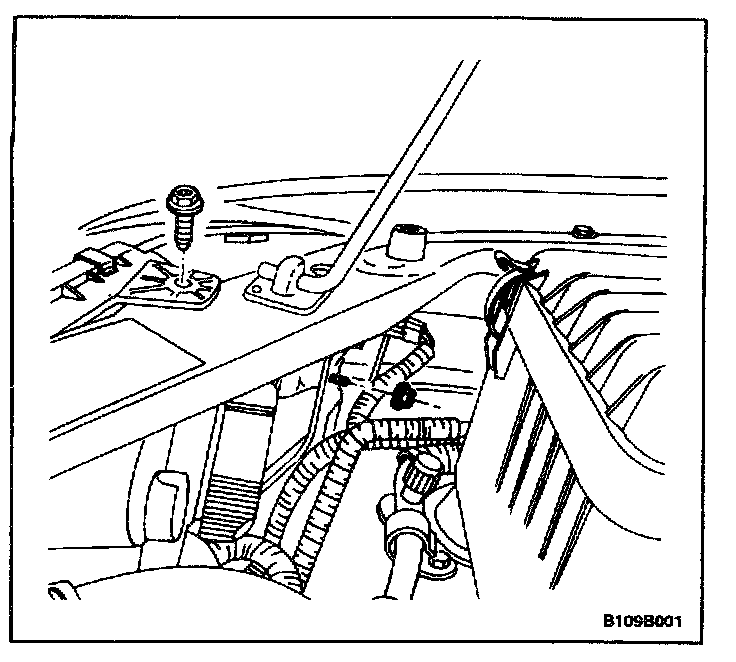

2. Remove the headlamp mounting bolts and the nut.




3. Disconnect the electrical connectors.
4. Remove the turn signal bulb.




5. Remove the headlamp assembly.

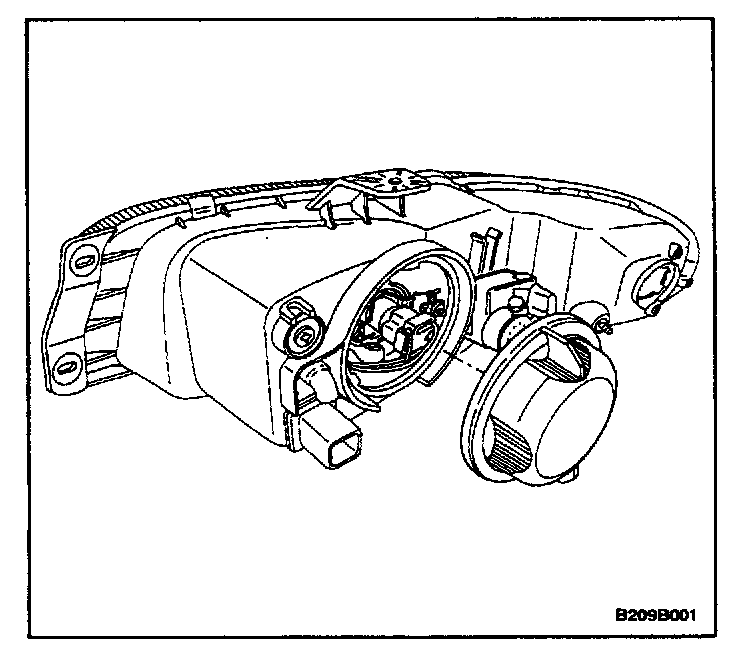

6. Remove the cap concealing the headlamp bulb.

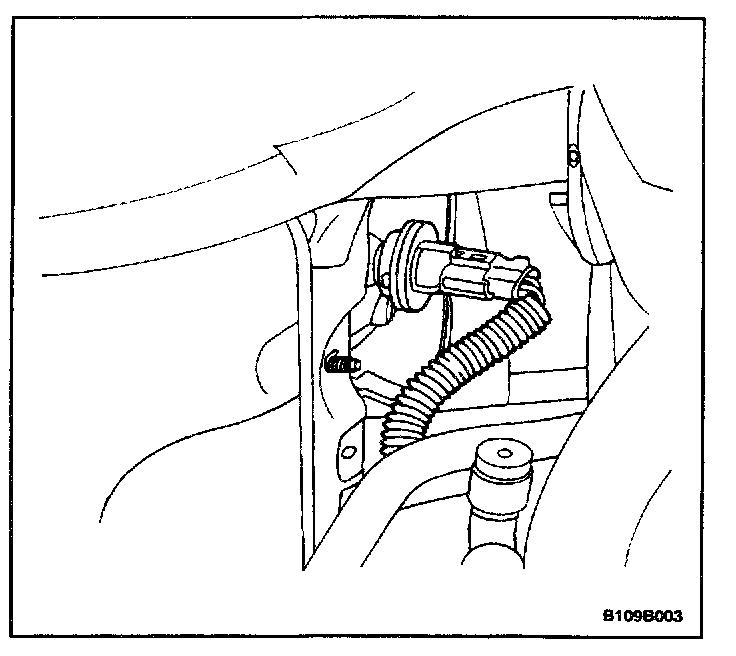

7. Disconnect the headlamp bulb electrical connector

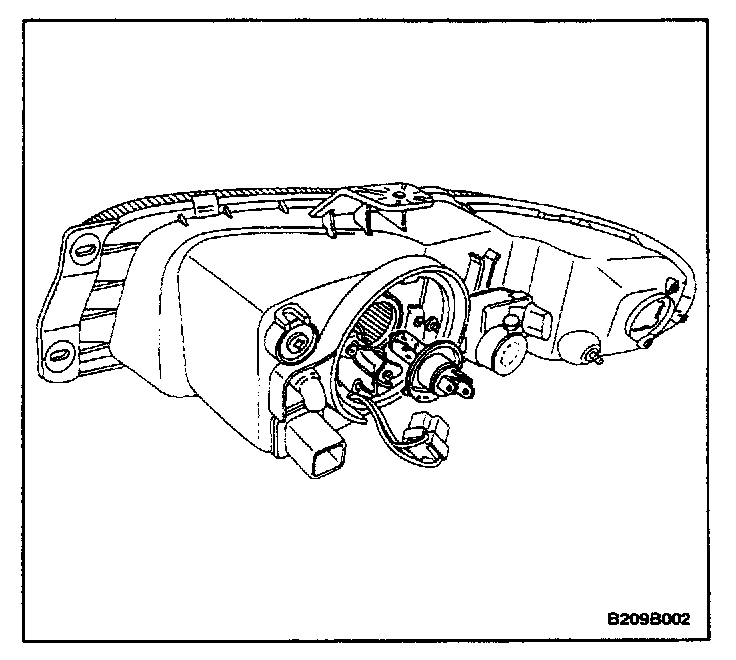

8. Remove the headlamp bulb.

Installation Procedure




1. Install the headlamp bulb.

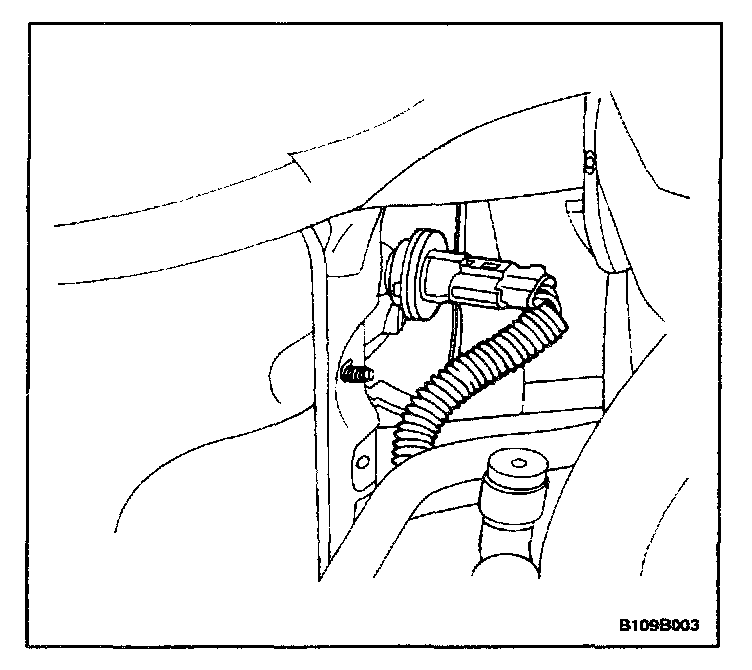

2. Connect the headlamp bulb electrical connector.
3. Install the cap concealing the headlamp bulb.




4. Install the turn signal bulb.




5. Connect the electrical connectors.

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

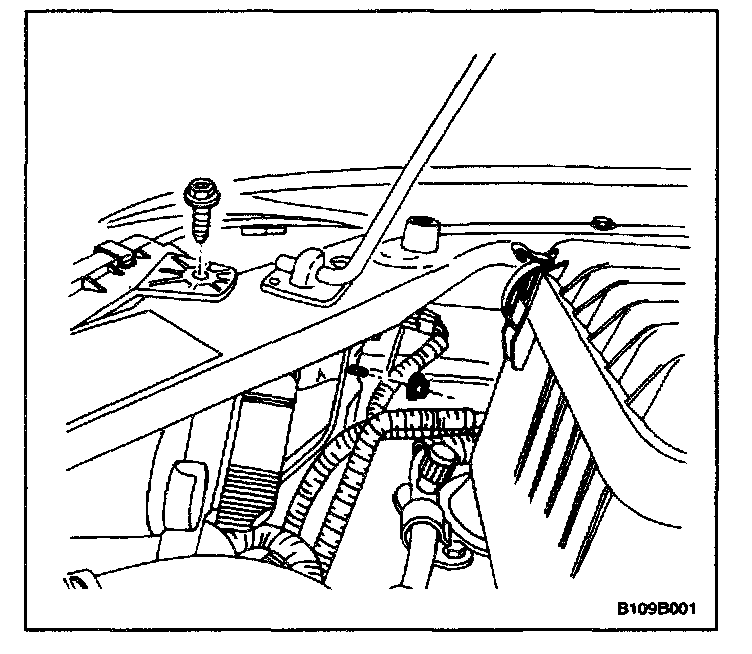

6. Install the headlamp assembly with the bolts and the nut.

Tighten
Tighten the headlamp assembly bolts to 4 Nm (35 lb.in).
Tighten the headlamp assembly nut to 4 Nm (35 lb.in).

7. Connect the negative battery cable.
