Center High-Mounted Stoplamp (Notchback)

Removal Procedure
1. Disconnect the negative battery cable.
2. Open the rear deck lid.

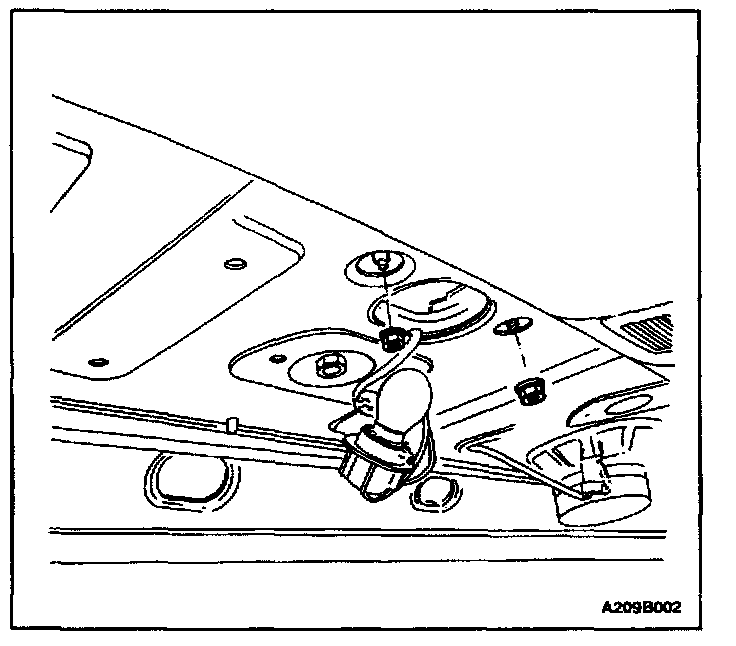

3. Remove the center high-mounted stoplamp (CHMSL) bulb.
4. Remove the nuts and the CHMSL.




Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the CHMSL with the nuts.

Tighten
Tighten the CHMSL mounting nuts to 4 Nm (35 lb.in).

2. Install the CHMSL bulb.
3. Connect the negative battery cable.
