Instrument Cluster Indicator Lamps Does Not Operate

Diagnostic Aid

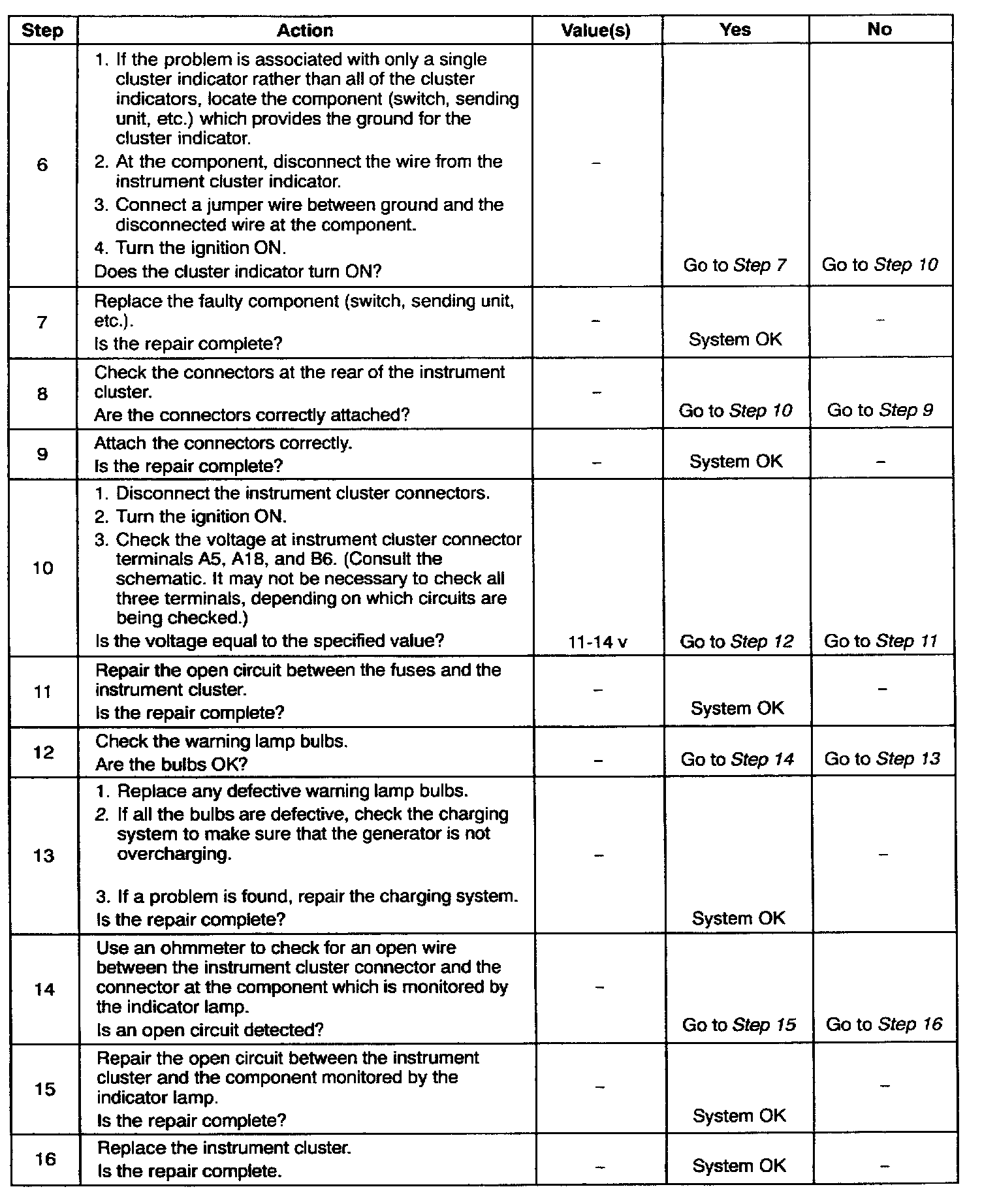

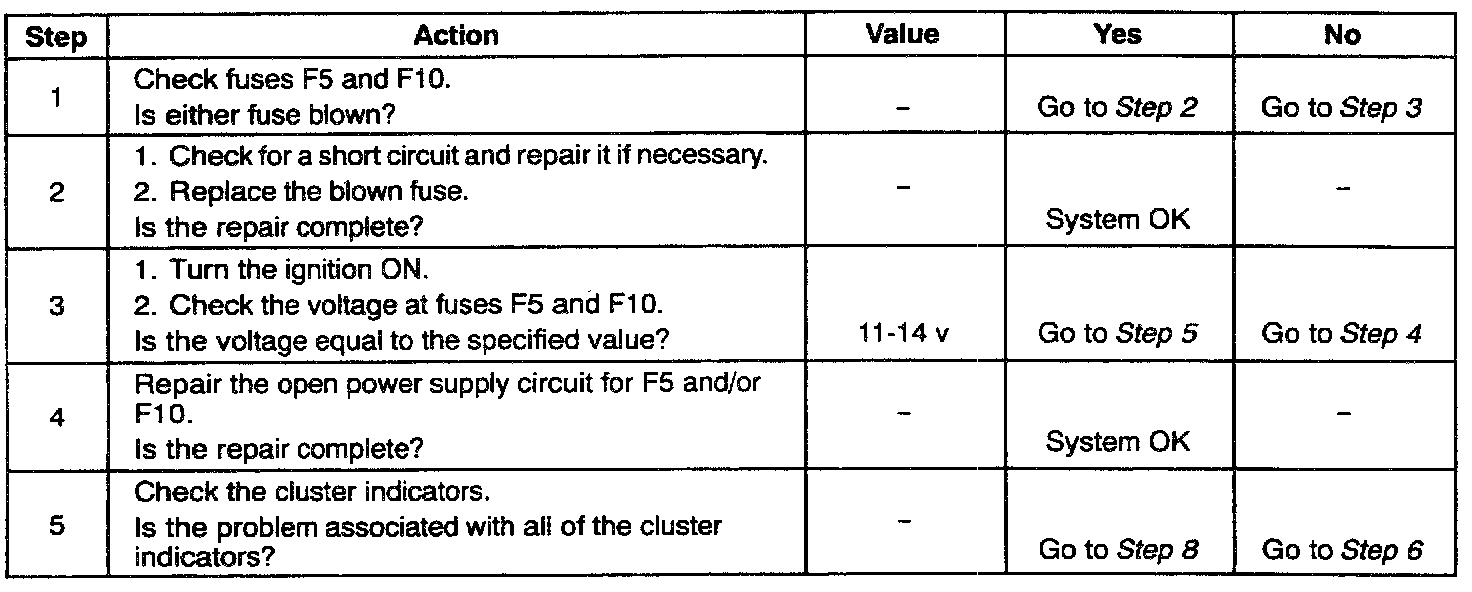

This table covers lamps powered by fuses F5 and F10: door ajar, rear deck lid ajar, service reminder indicator, malfunction indicator lamp, oil pressure, battery, power, ABS, AIRBAG, low fuel warning. The ground for each circuit is provided by the component being monitored by the indicator lamp.
