FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Daewoo
>>
1999
>>
Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Relays and Modules - Instrument Panel
>>
Audible Warning Device Control Module
>>
Testing and Inspection
Audible Warning Device Control Module: Testing and Inspection
Steps 1 Thru 15:

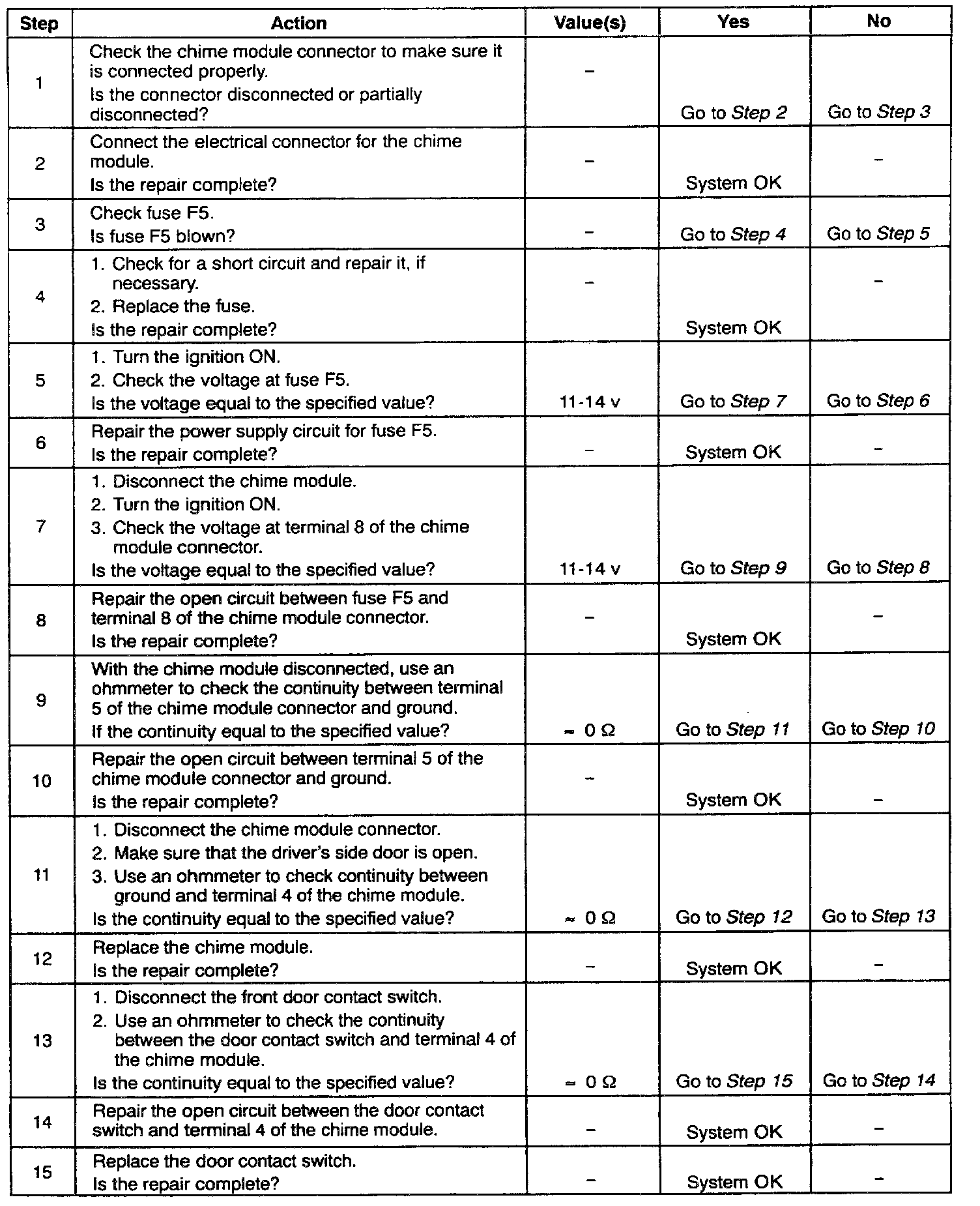

Door-Open Chime Does Not Operate
Steps 1 Thru 15:

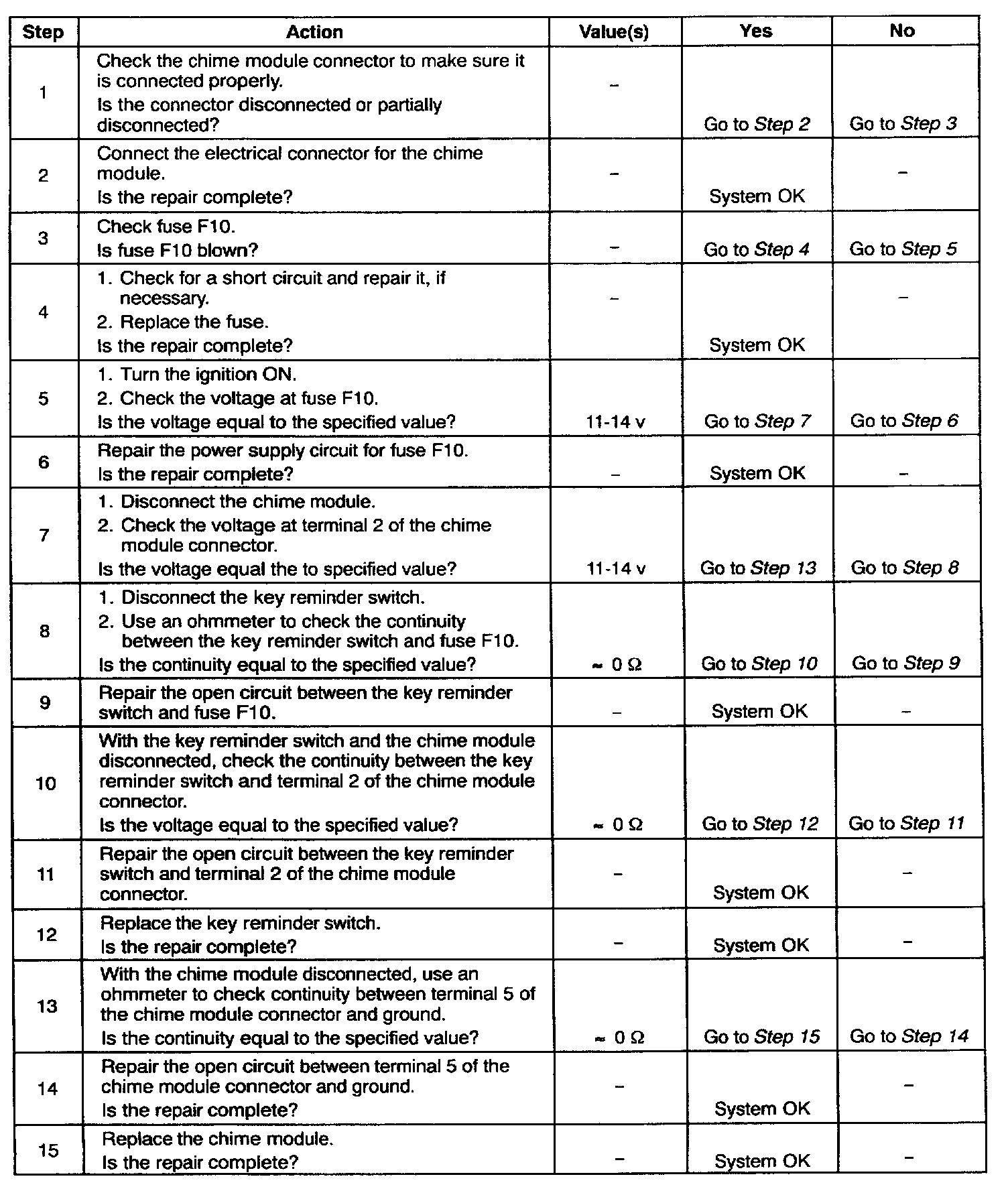

Key Reminder Chime Inoperative
