Audible Warning Device Control Module: Service and Repair

Removal Procedure
1. Disconnect the negative battery cable.

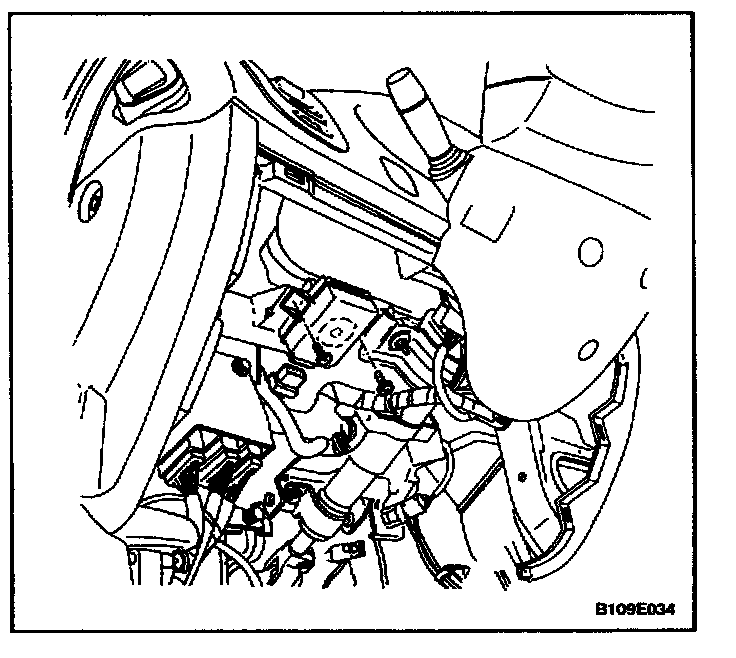

2. Remove the knee bolster trim panel beneath the steering column.
3. Disconnect the electrical connector.
4. Remove the screws and the chime module.




Installation Procedure

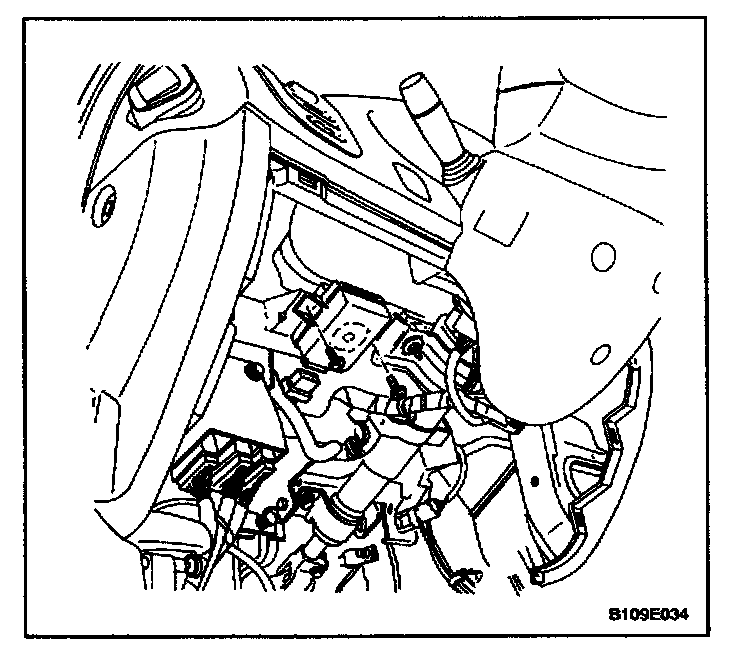

1. Install the chime module with the screws.

Tighten
Tighten the chime module screws to 4 Nm (35 lb.in).

2. Connect the electrical connector.
3. Install the knee bolster trim panel beneath the steering column.
4. Connect the negative battery cable.
